View 176-200: 200

200. XM Receiver (USA EX, SE) (Honda Accessory):



226. Audio Unit:

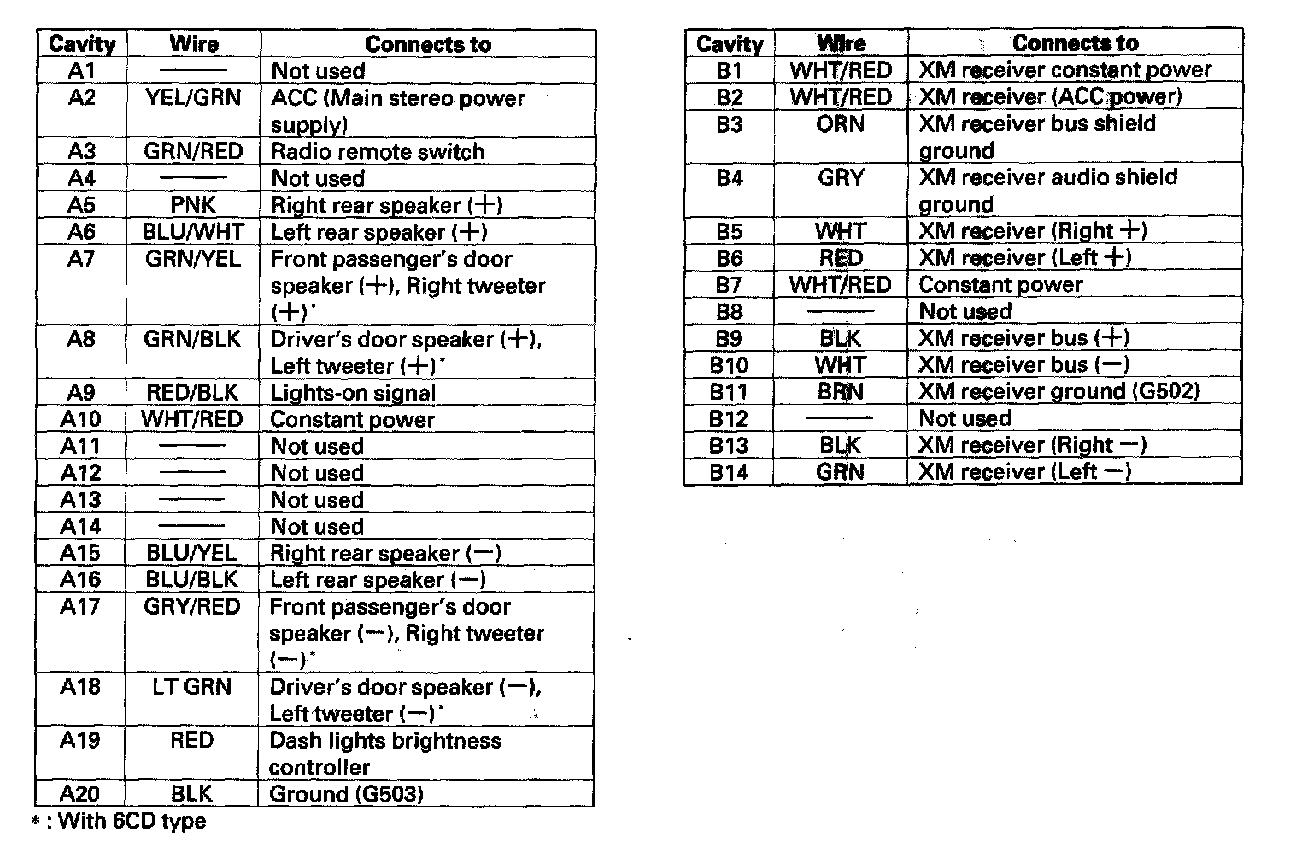

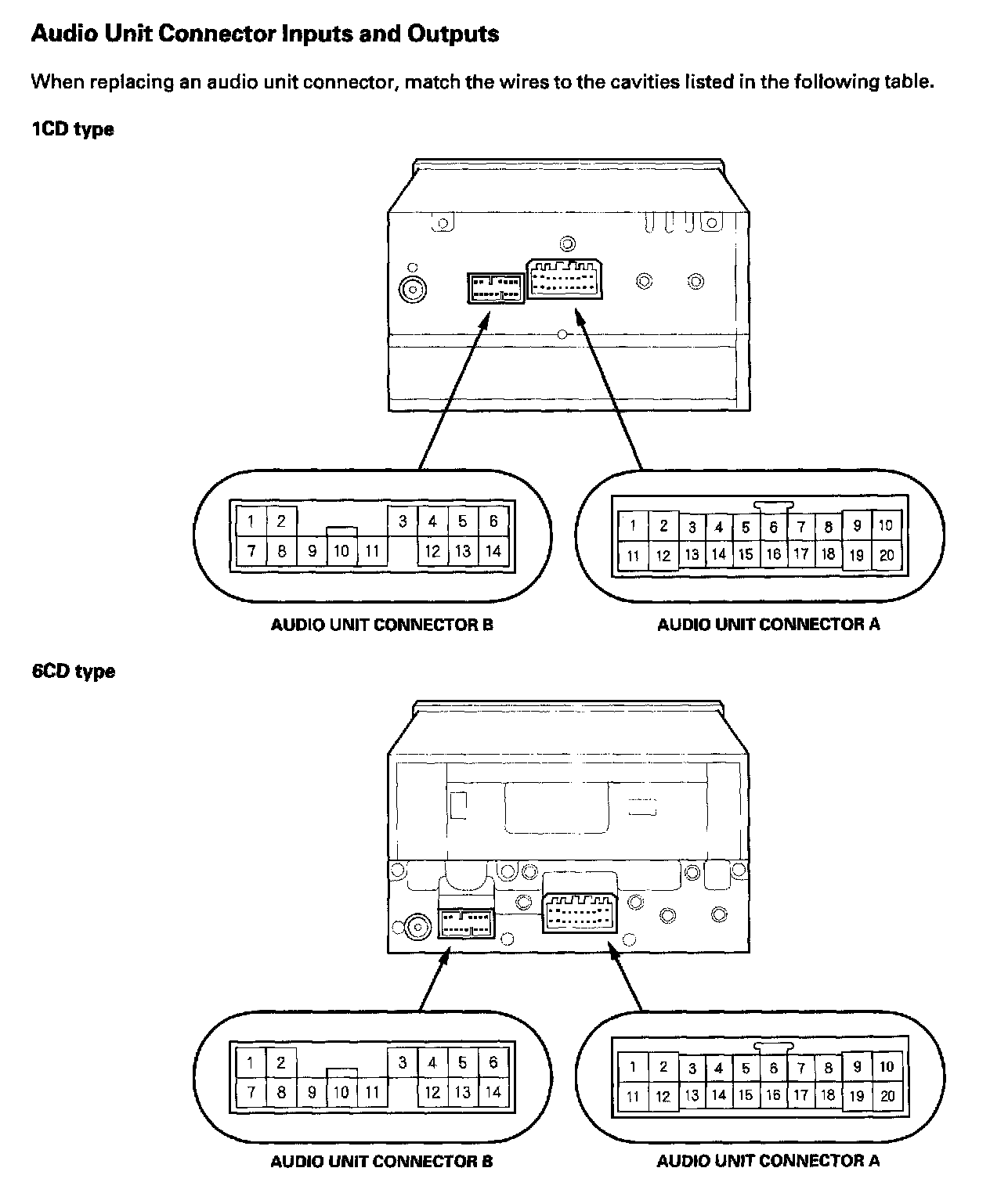

Audio Unit Connector Inputs And Outputs:

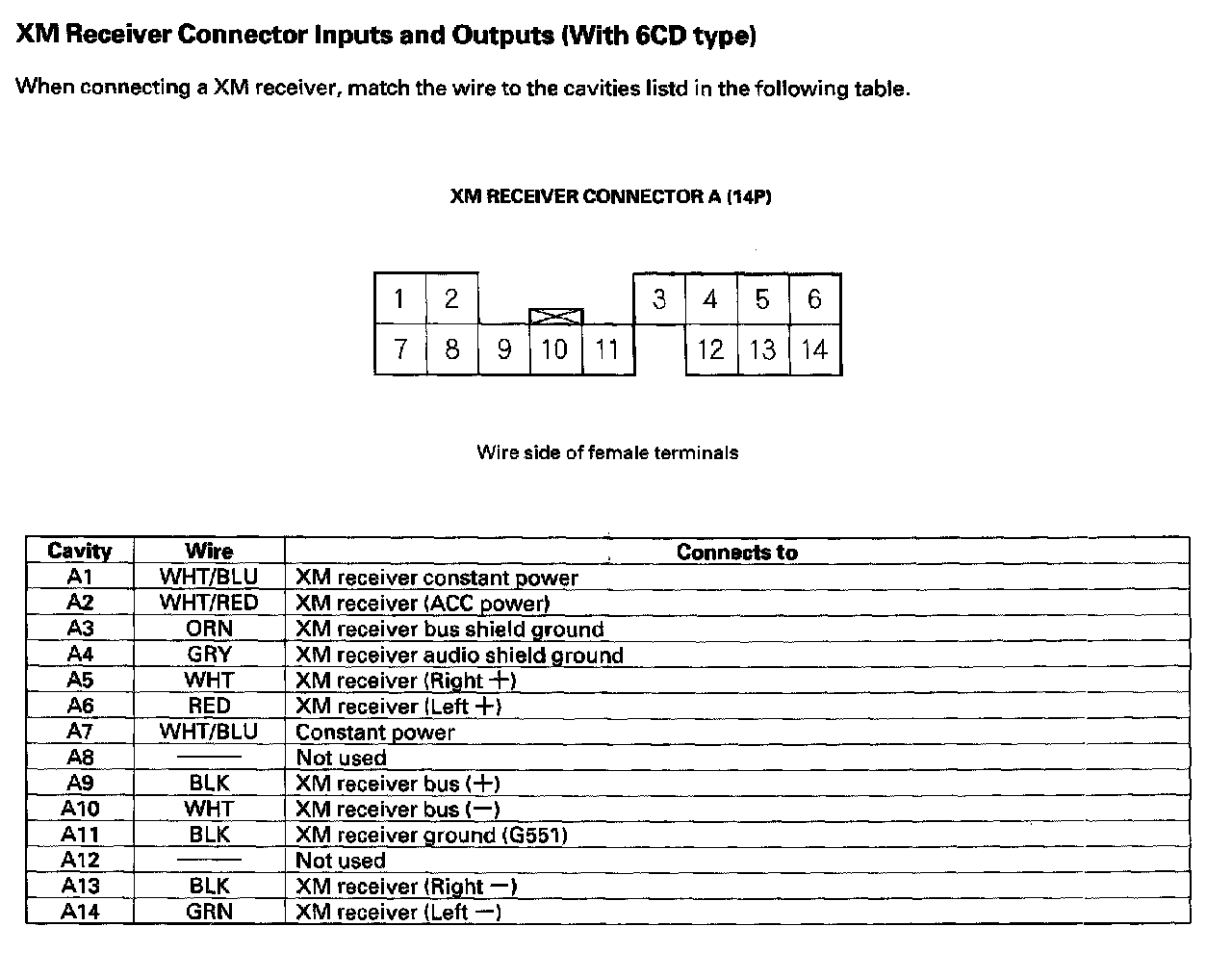

XM Receiver Connector Inputs And Outputs (with 6CD Type):
