View 201-225: 219

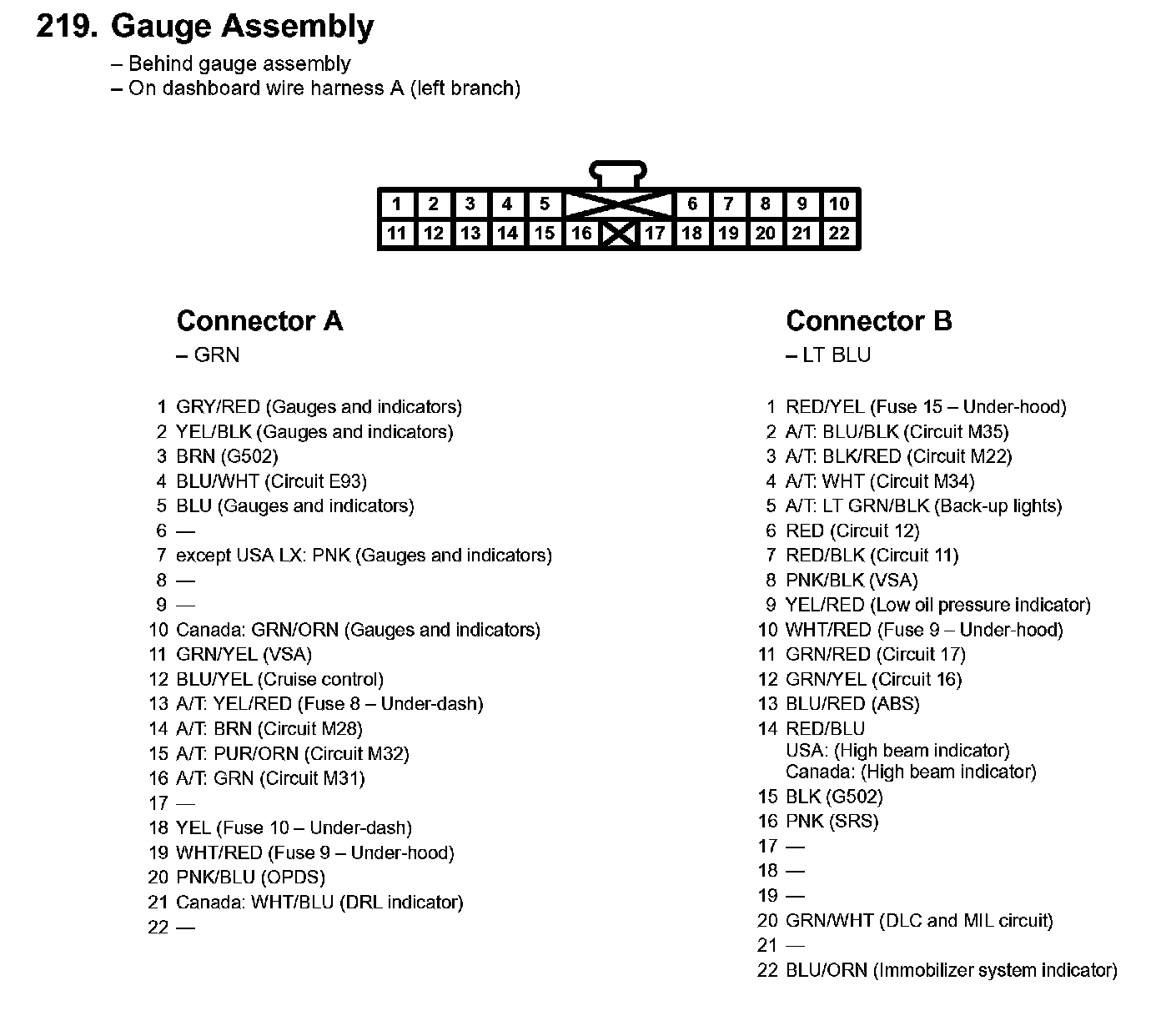

219. Gauge Assembly:

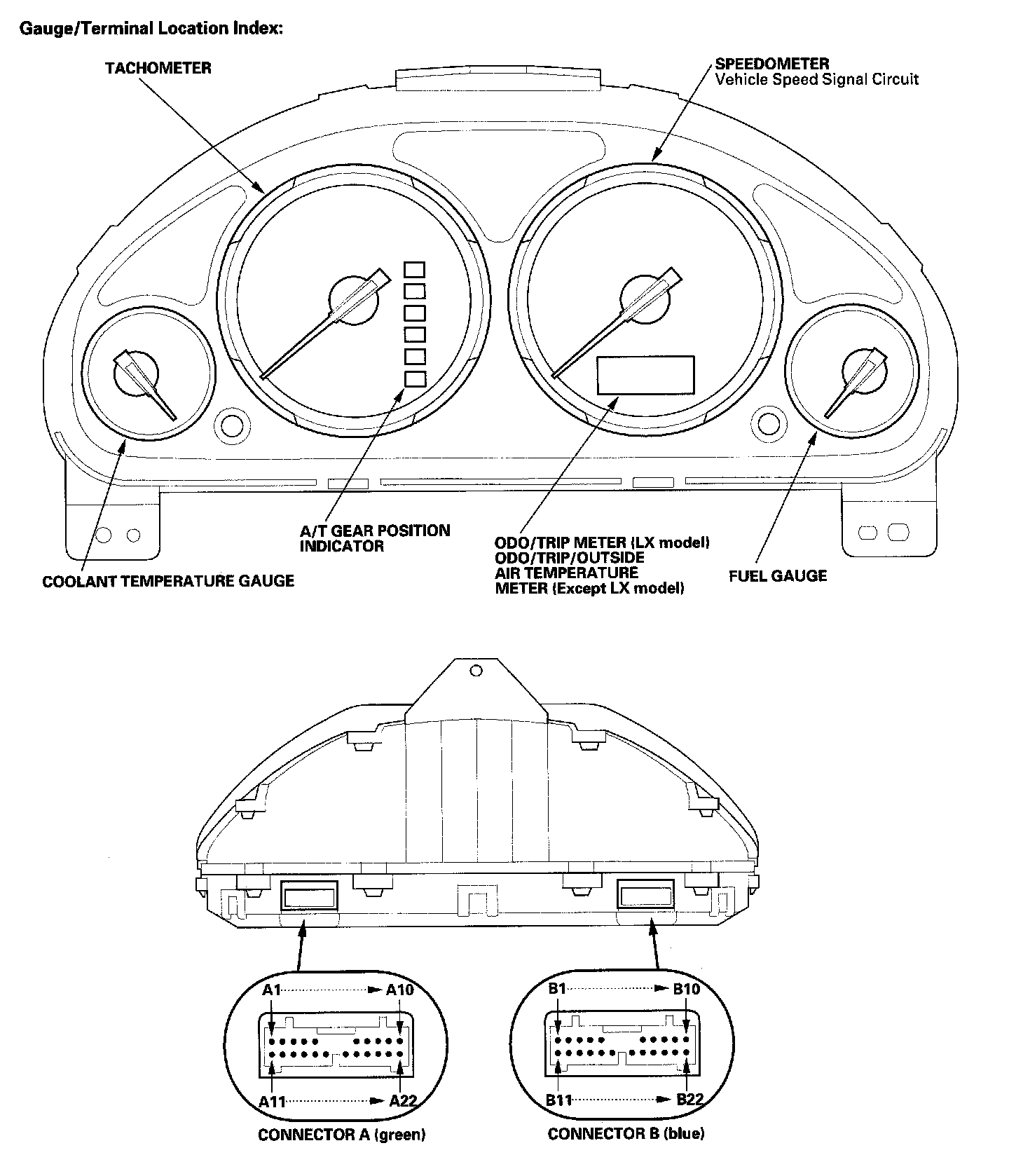

Gauges - Component Location Index:



Gauges - Component Location Index:
