View 26-50: 29

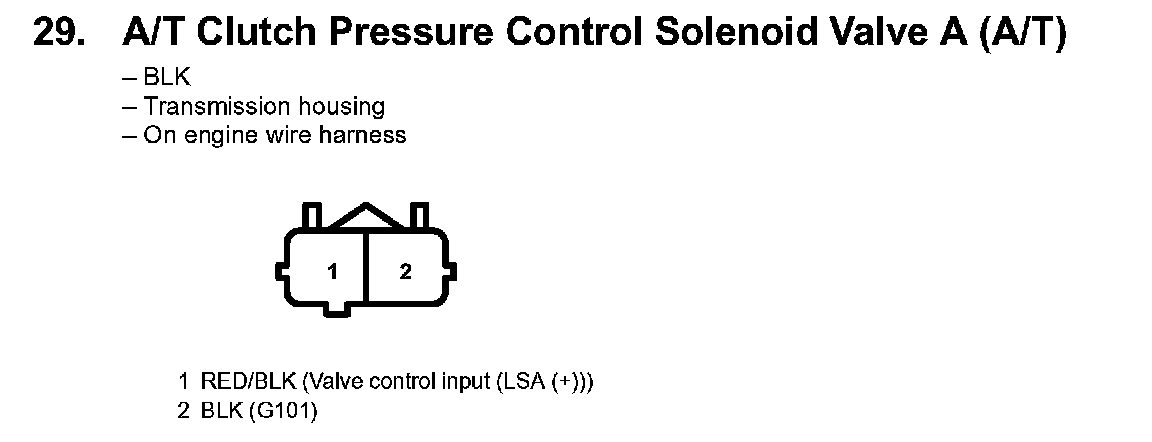

29. A/T Clutch Pressure Control Solenoid Valve A (A/T):

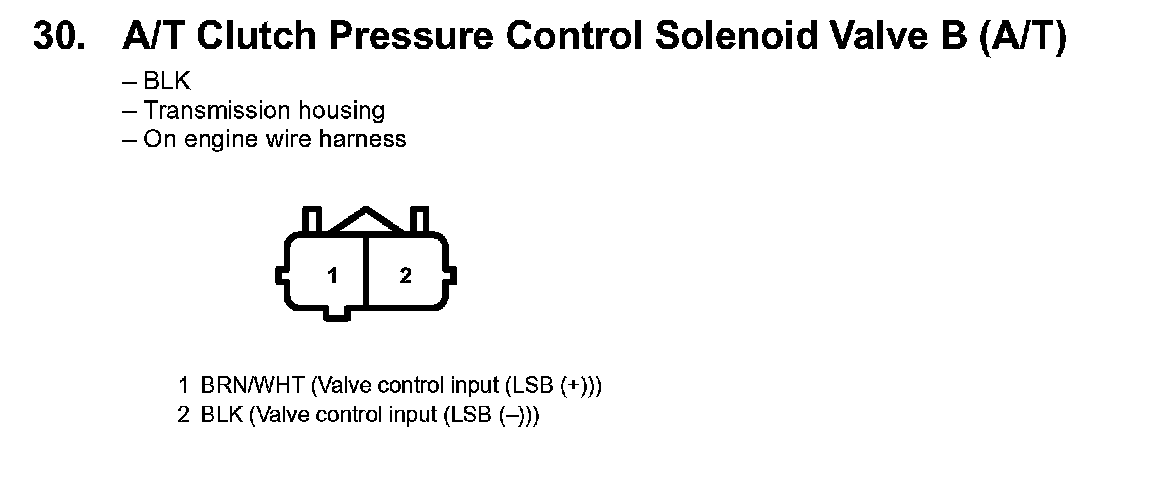

30. A/T Clutch Pressure Control Solenoid Valve B (A/T):



31. A/T Clutch Pressure Control Solenoid Valve C (A/T):
