View 26-50: 32

32. Accessory Power Socket, Front:

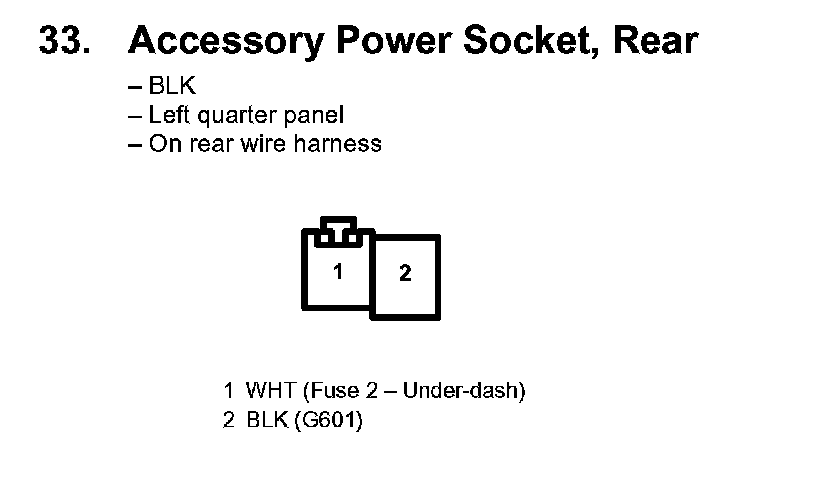

33. Accessory Power Socket, Rear:

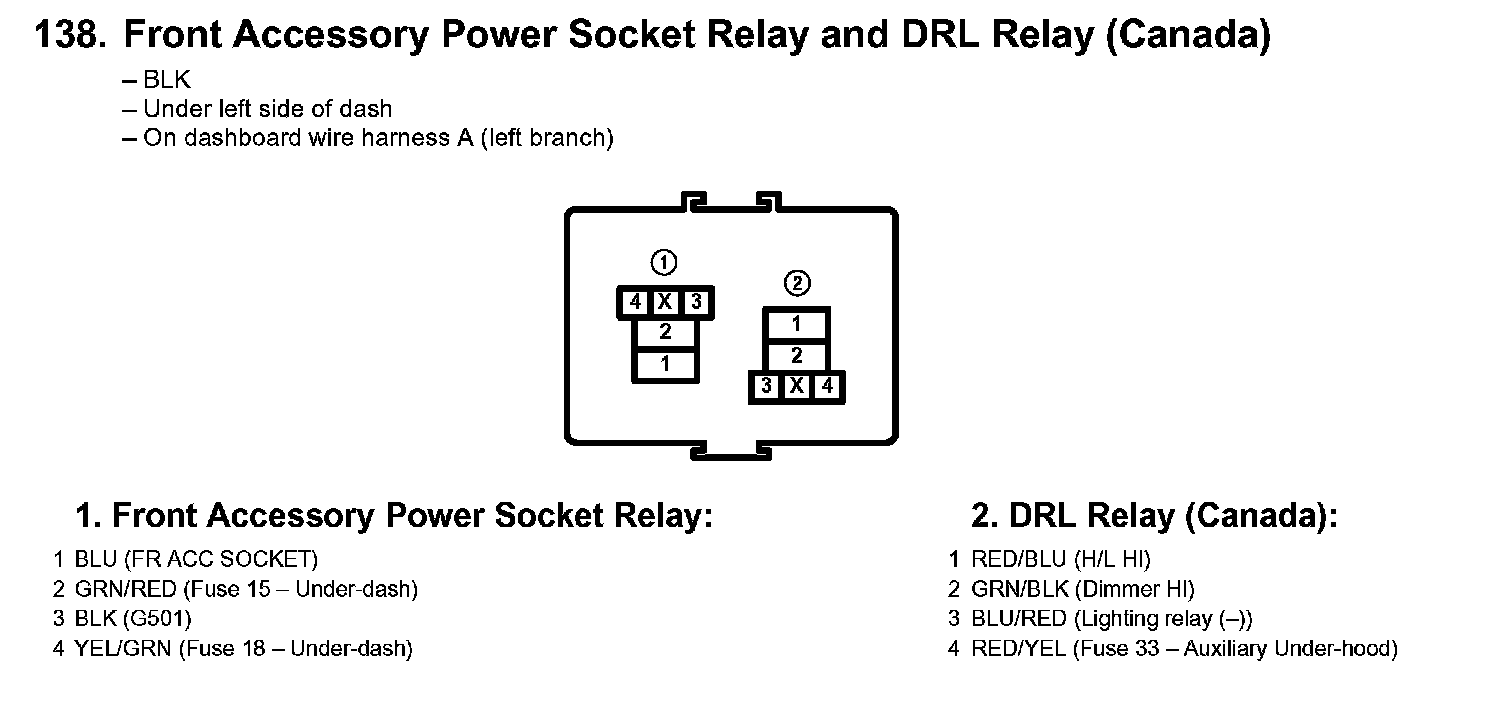

138. Front Accessory Power Socket Relay And DRL Relay (canada):



140. Ignition Coil Relay And Rear Accessory Power Socket Relay:
