View 26-50: 43

43. Door Lock Actuator, Driver's:

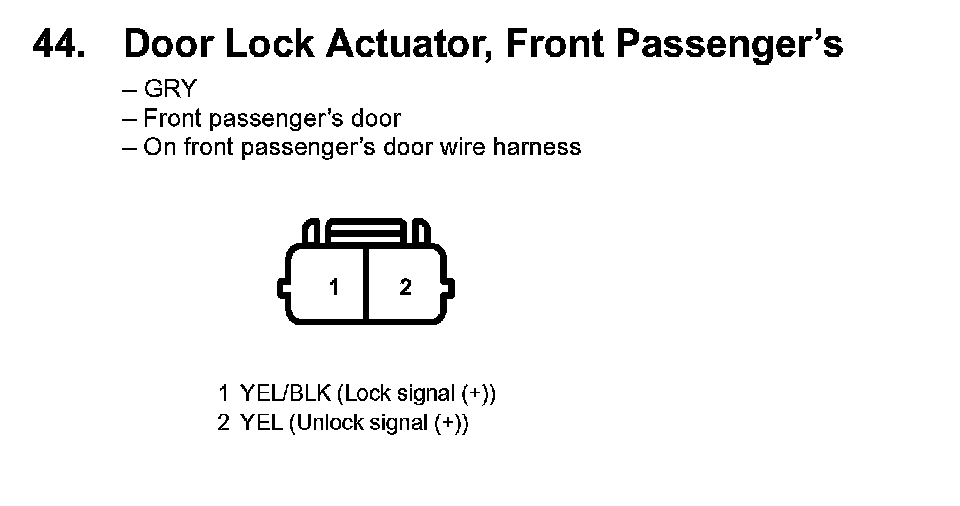

44. Door Lock Actuator, Front Passenger's:

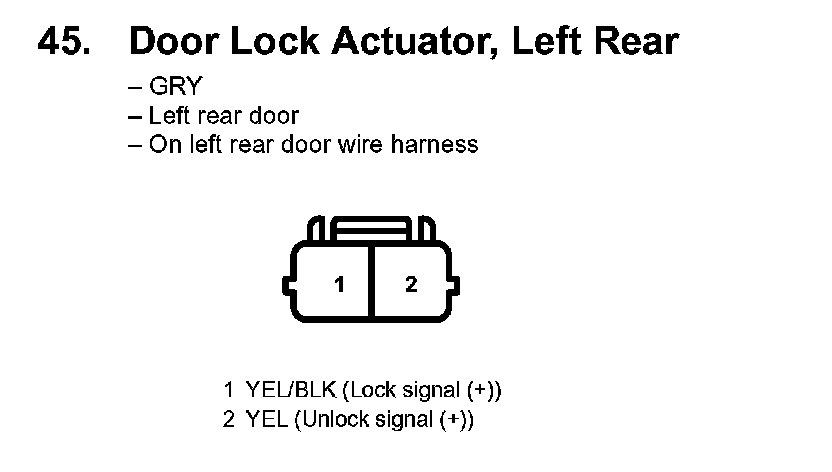

45. Door Lower Actuator, Left Rear:

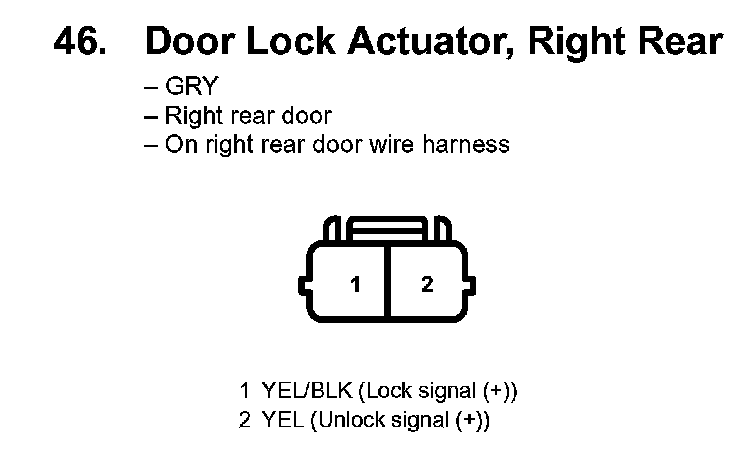

46. Door Lower Actuator, Right Rear:
