Turn Signal Lamp
Turn Signal Lamp

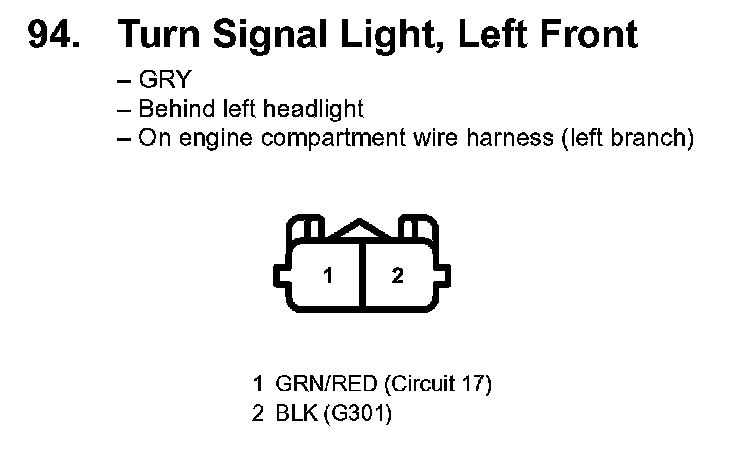

94. Turn Signal Light, Left Front:

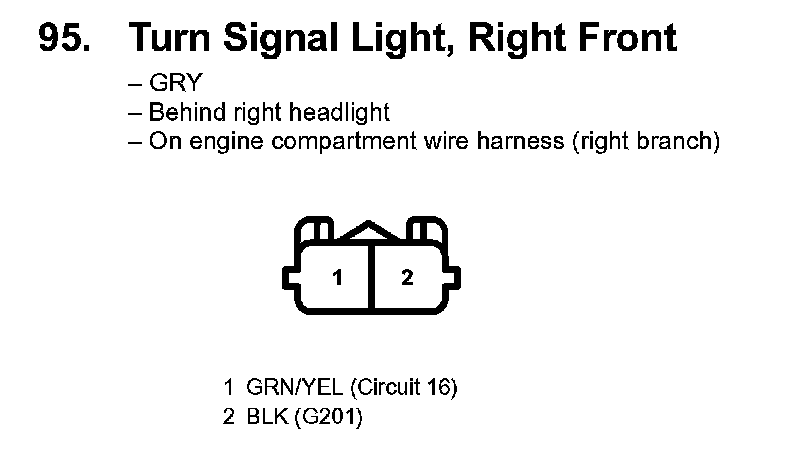

95. Turn Signal Light, Right Front:
