Manual Transmission/Transaxle
Manual Transmission/Transaxle
Clutch Housing:

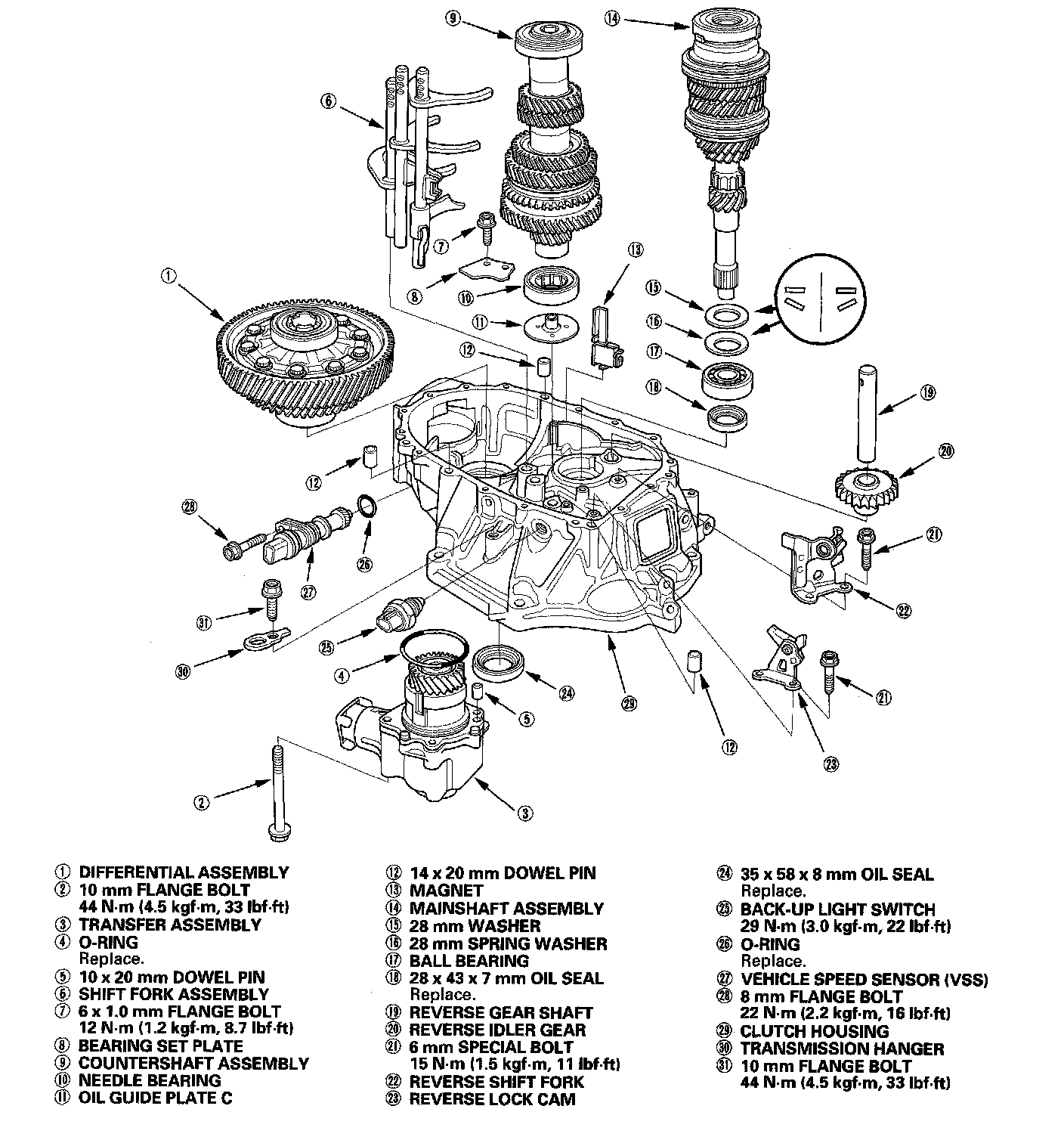

Transmission Housing:

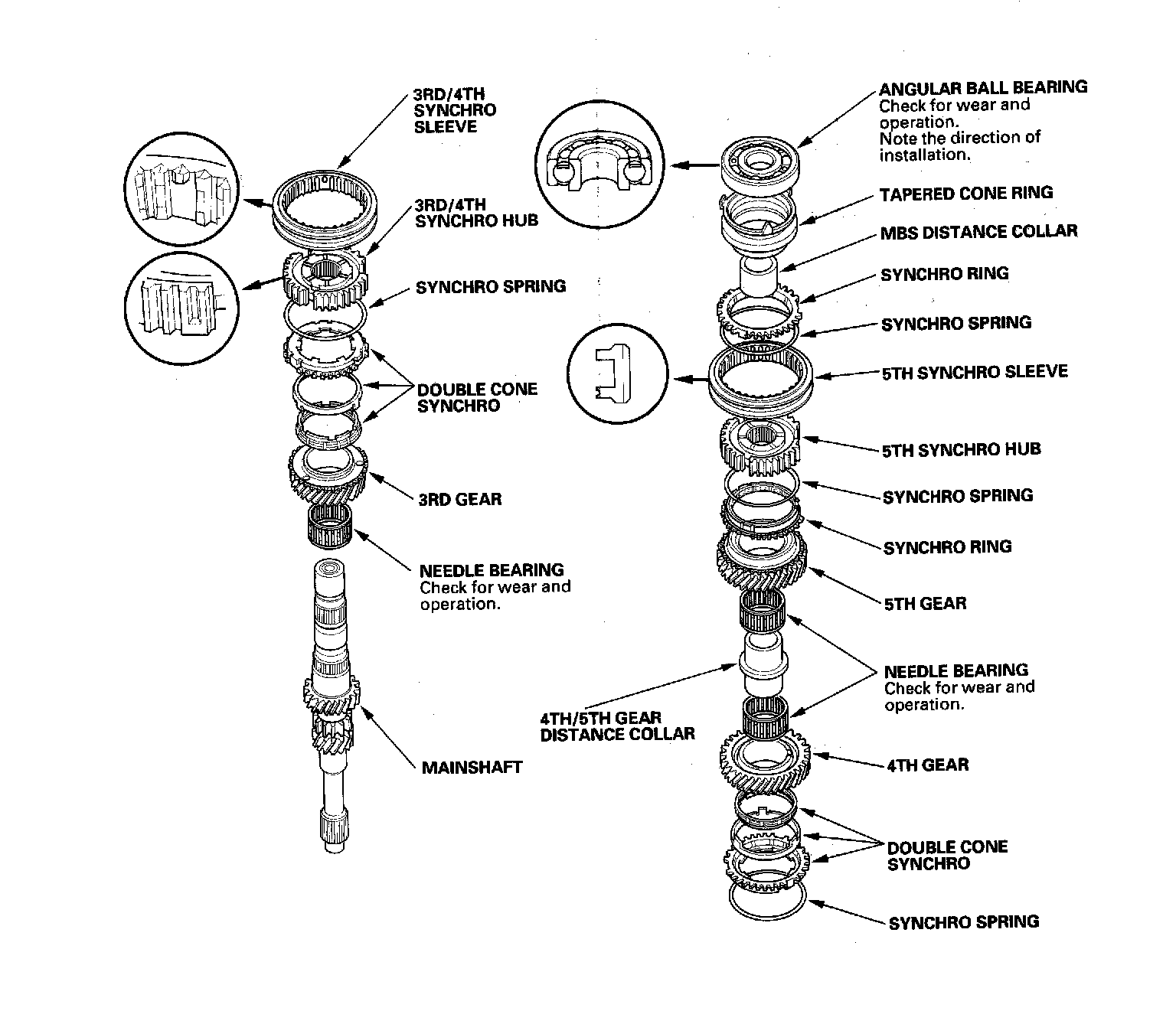

Mainshaft:

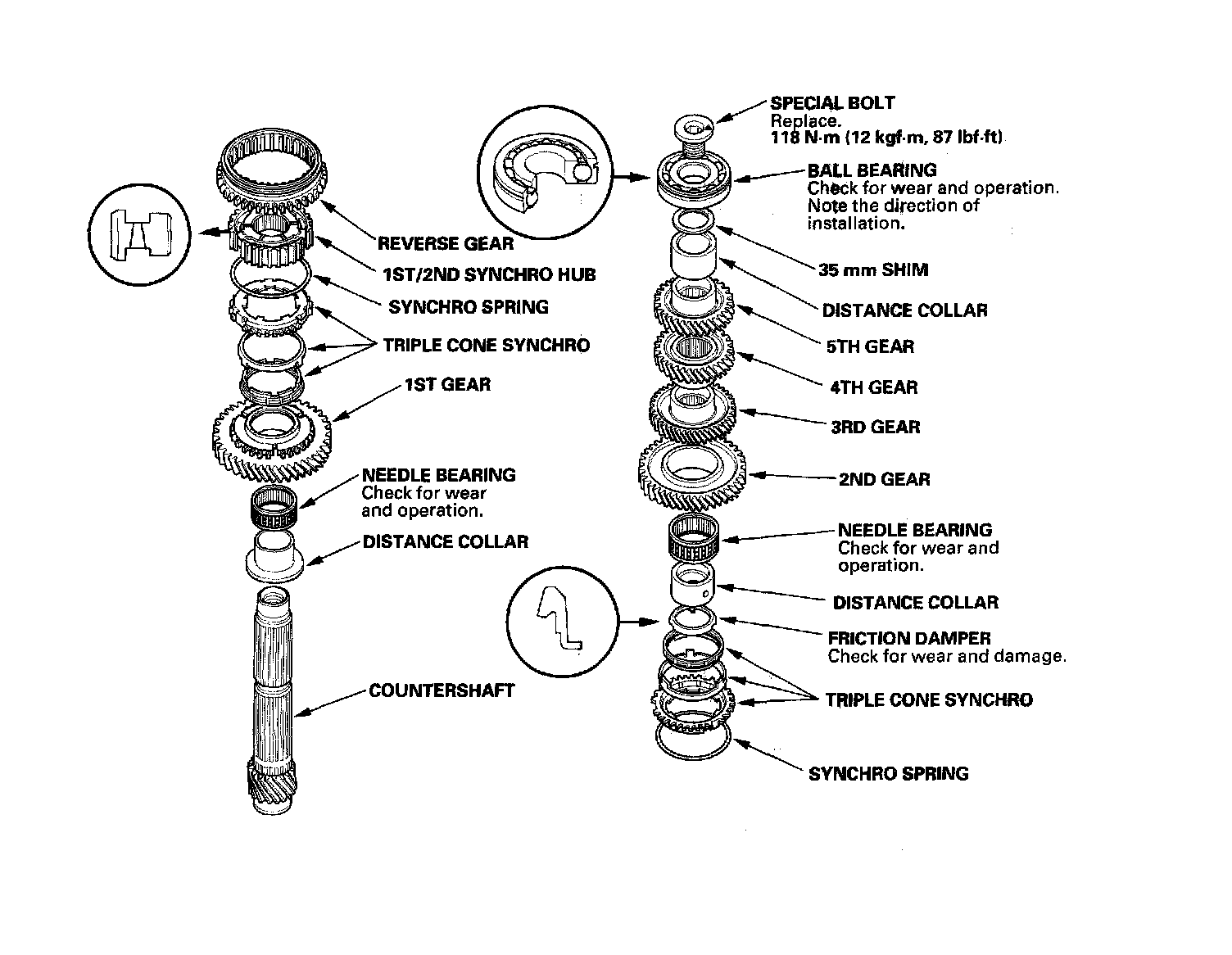

Countershaft:
