1. Remove the., radiator fan relay from the under-hood fuse/relay box, and test it.
Is the relay OK?
YES - Go to step 2.
NO - Replace the radiator fan relay.
2. Remove the radiator fan switch, and test it.
Is the radiator fan switch OK?
YES - Go to step 3.
NO - Replace the radiator fan switch.
3. Connect the Honda Diagnostic System (HDS) to the data link connector (DLC).
4. Select "SCS" mode using the HDS.
5. Disconnect engine-control module (ECM)/powertrain control module (PCM) connector B (24P) and the under-hood fuse/relay box 14P connector.

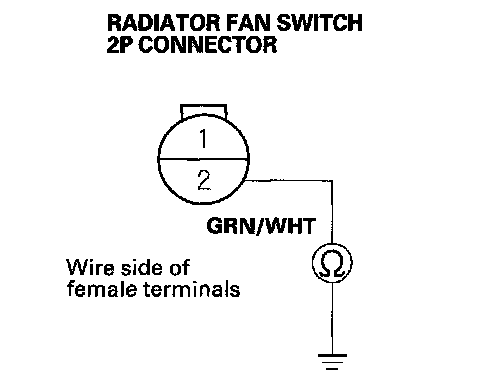

6. Check for continuity between radiator fan switch 2P connector terminal No. 2 arid body ground.
Is there continuity?
YES - Repair short in the wire between radiator fan switch 2P connector terminal No. 2 and under-hood fuse/relay box.
NO - Replace the under-hood fuse/relay box.
