Evaporator Temperature Sensor / Switch: Service and Repair
Evaporator Temperature Sensor Replacement 1.

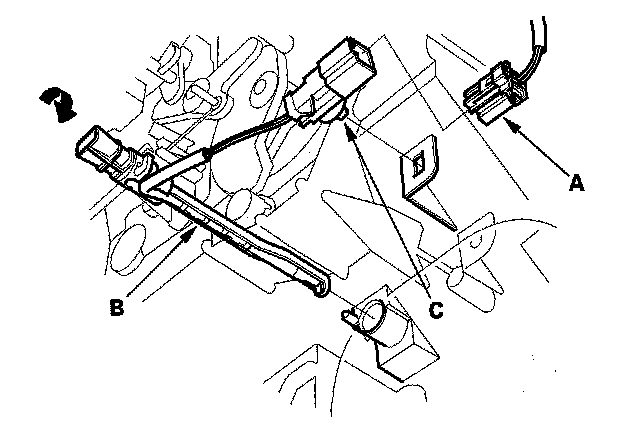

Disconnect the 2P connector (A) from the evaporator temperature sensor (B), then remove the connector clip (C). Turn the evaporator temperature sensor clockwise to the stop, and carefully pull it out.
2.
Install the sensor in the reverse order of removal.
