Map Light: Service and Repair

Spotlight Test/Replacement

1. Turn the light switch OFF.

2. Carefully pry off the lens (A) with a small screwdriver.
3. Remove the four mounting screws.
4. Disconnect the 3P connector (B) from the housing (C).

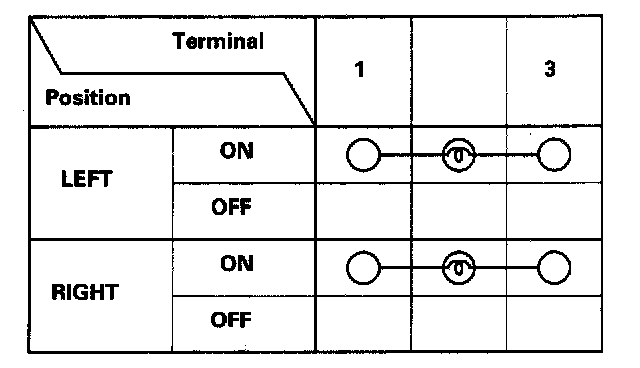

5. Check for continuity between the terminals in each switch position according to the table.
6. If the continuity is not as specified, check the bulb (D). If the bulb is OK, replace the light.
