Locations
>>
Ground Locations
>>
G201
G201
28. Behind Right Side Of Front Bumper:

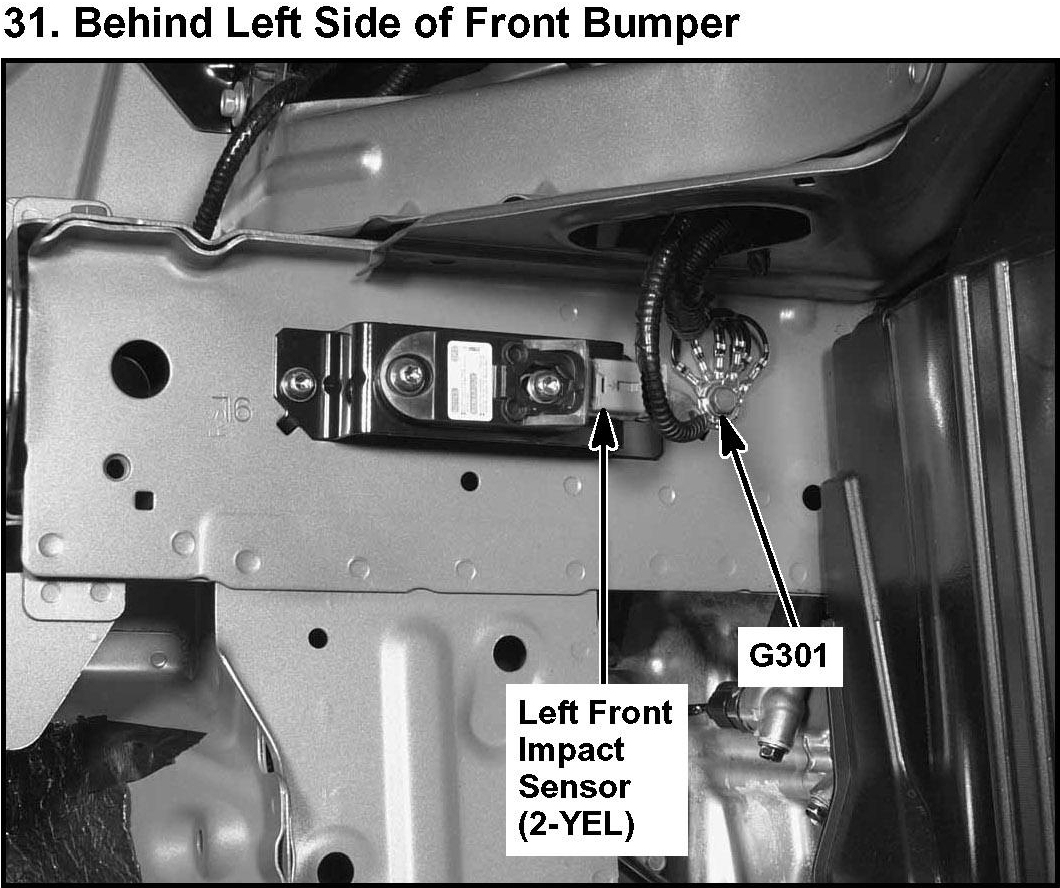

31. Behind Left Side Of Front Bumper:

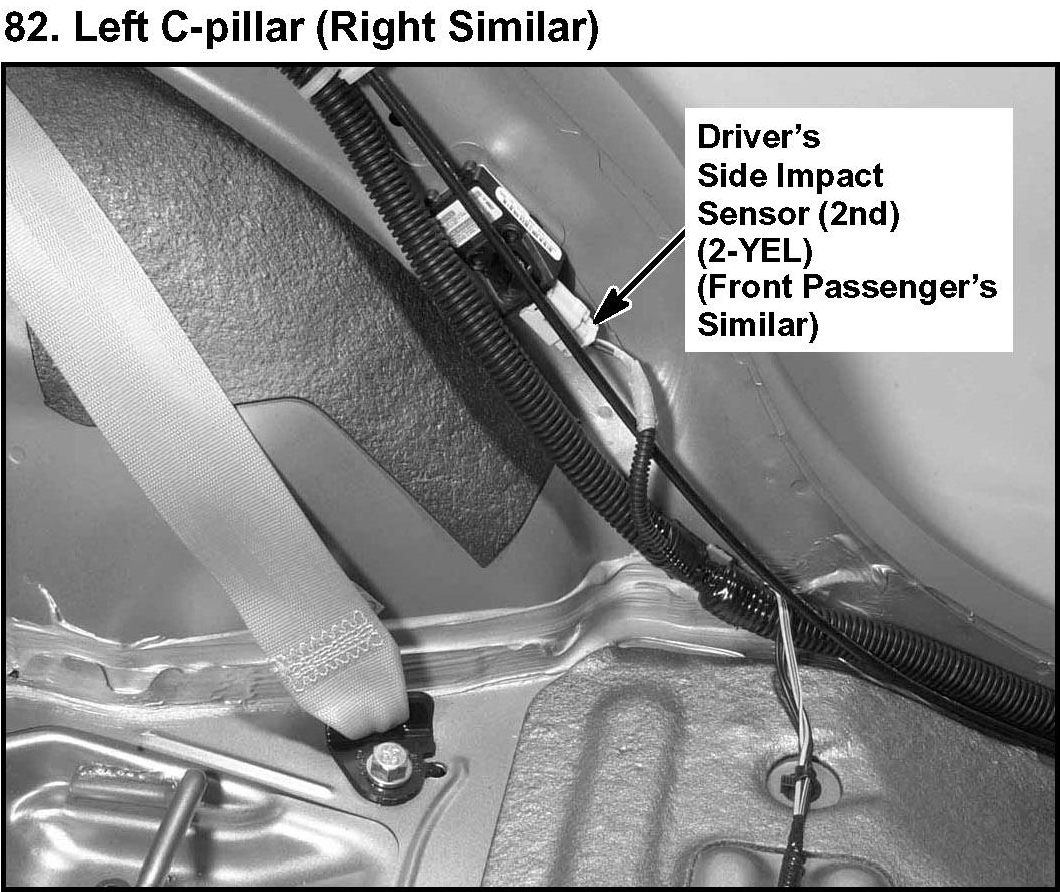

82. Left C-pillar (Right Similar):

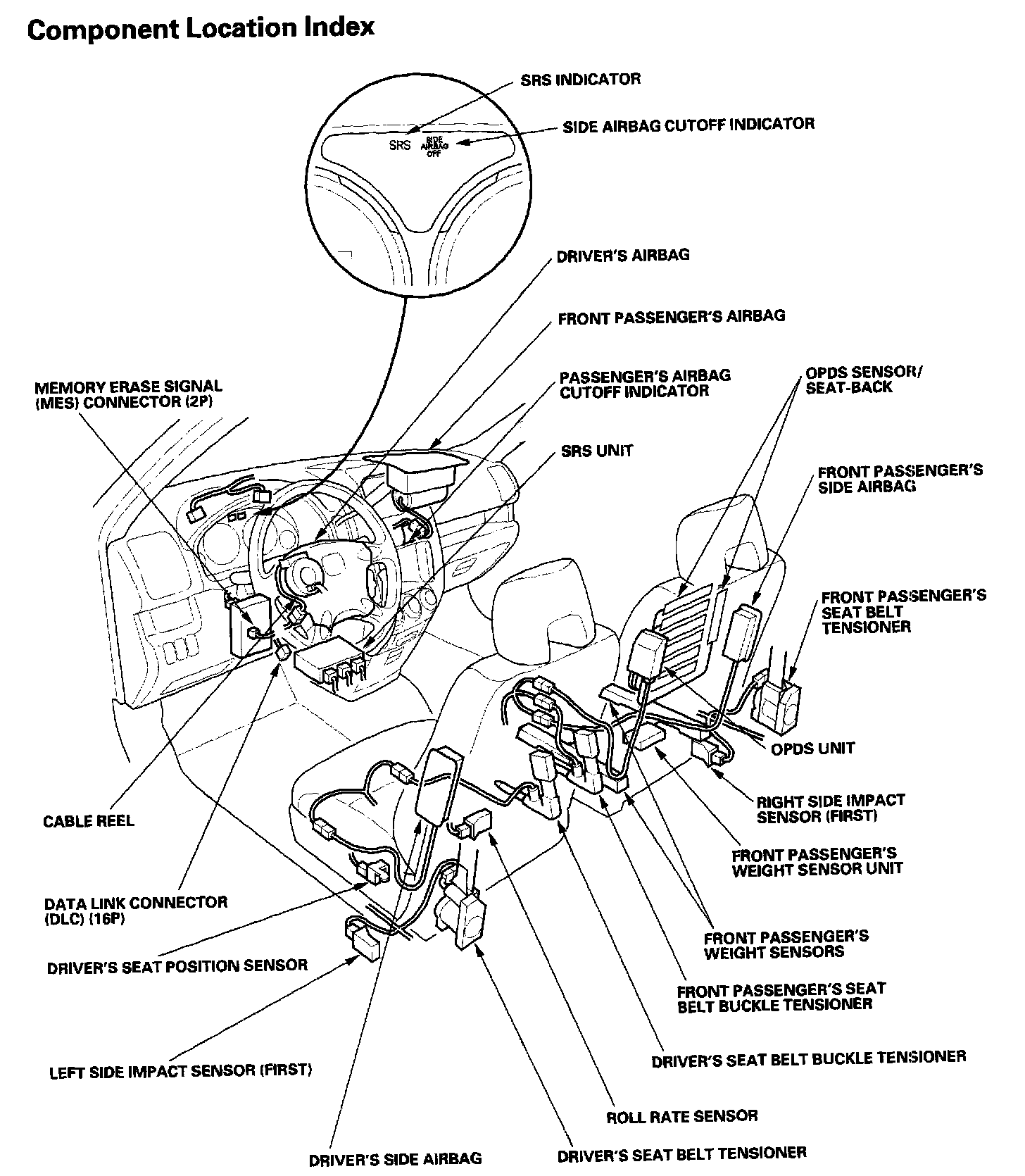

SRS - Component Location Index:

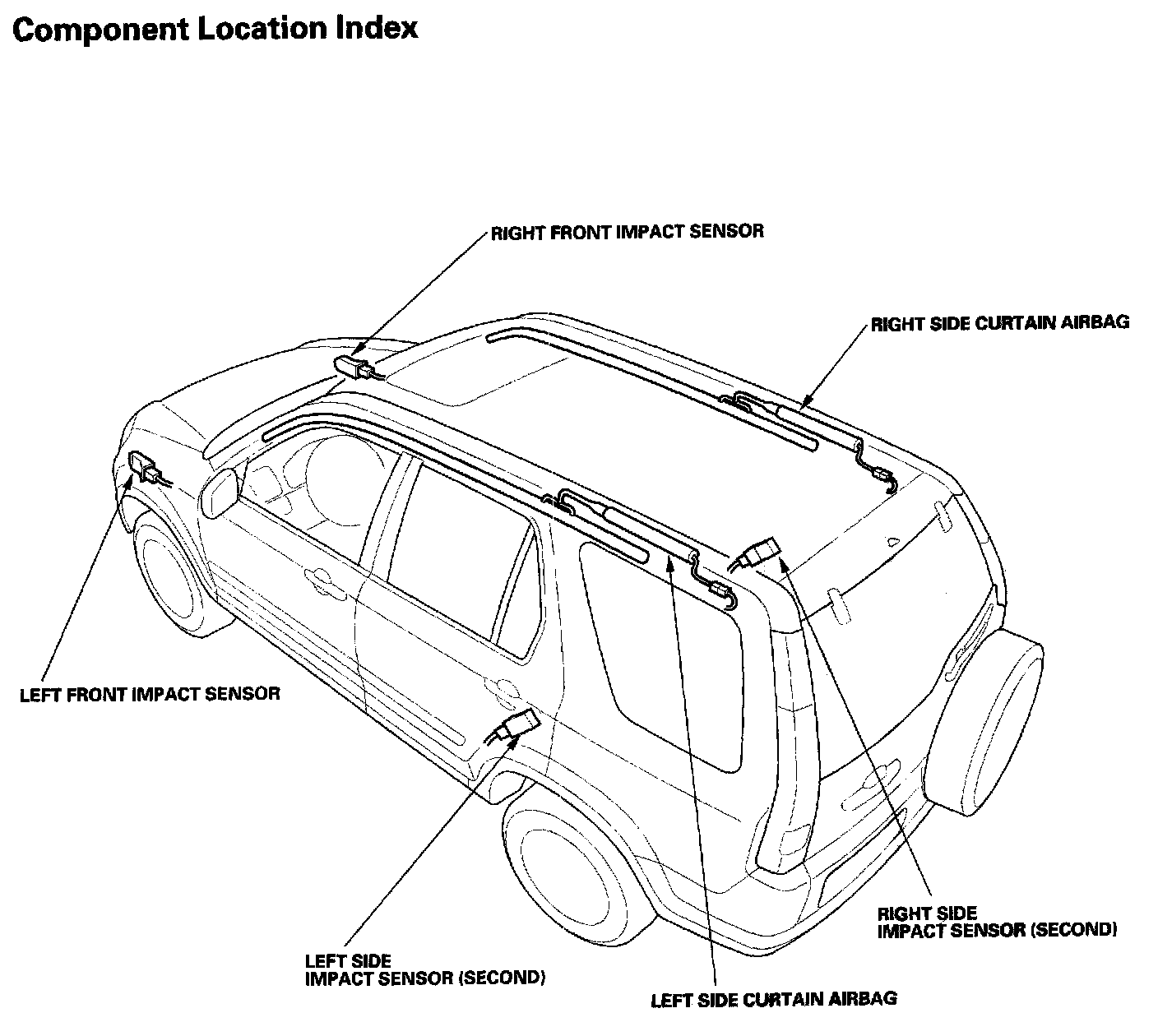

SRS - Component Location Index:
