Home >> Honda >> 2006 >> CR-V 2WD L4-2.4L >> Repair and Diagnosis >> Locations >> Harness Locations >> Driver's Seat Subharness

Driver's Seat Subharness

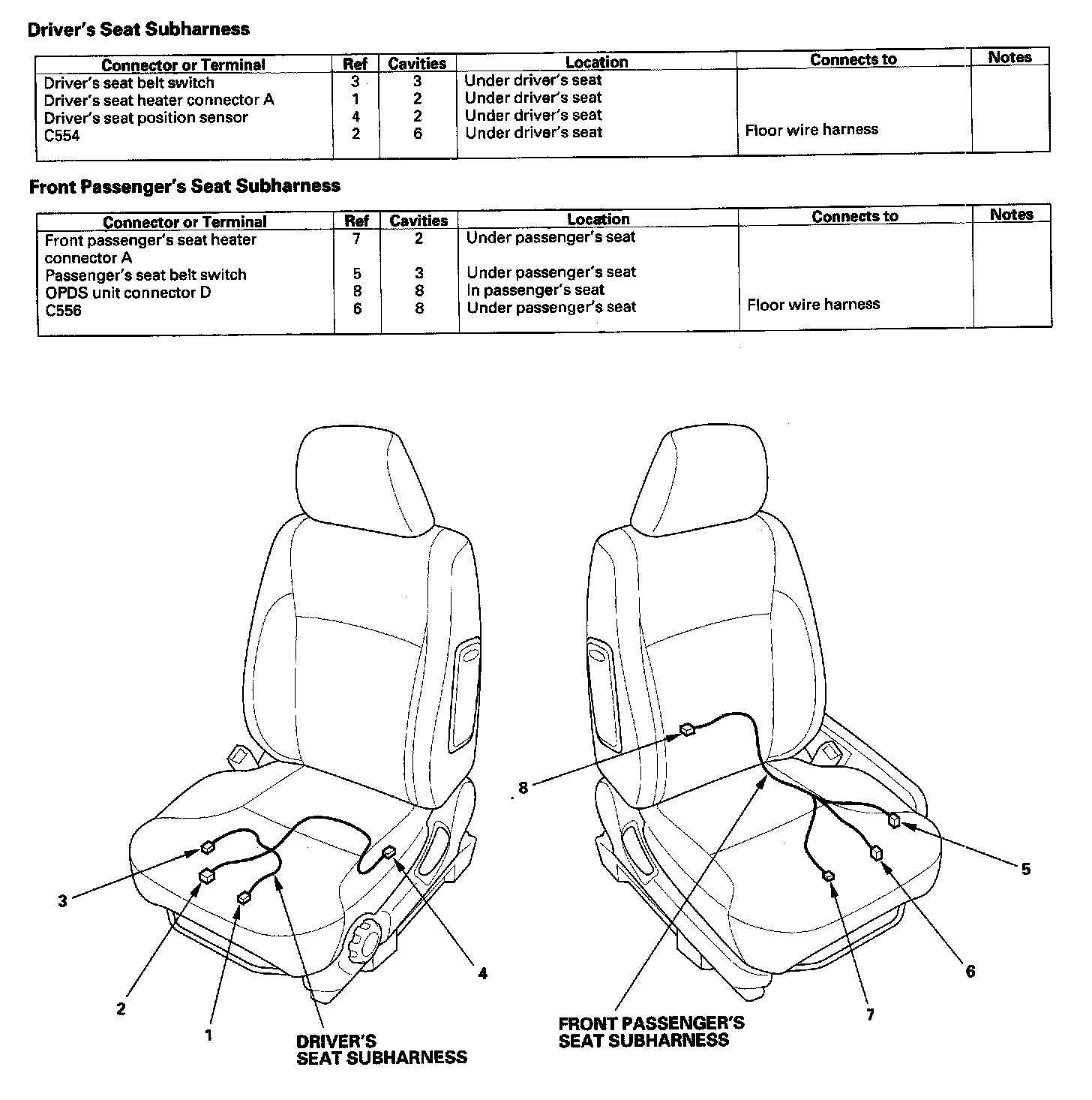

Driver's Seat Subharness/Front Passenger's Seat Subharness:
