License Plate Light Subharness
License Plate Light Subharness

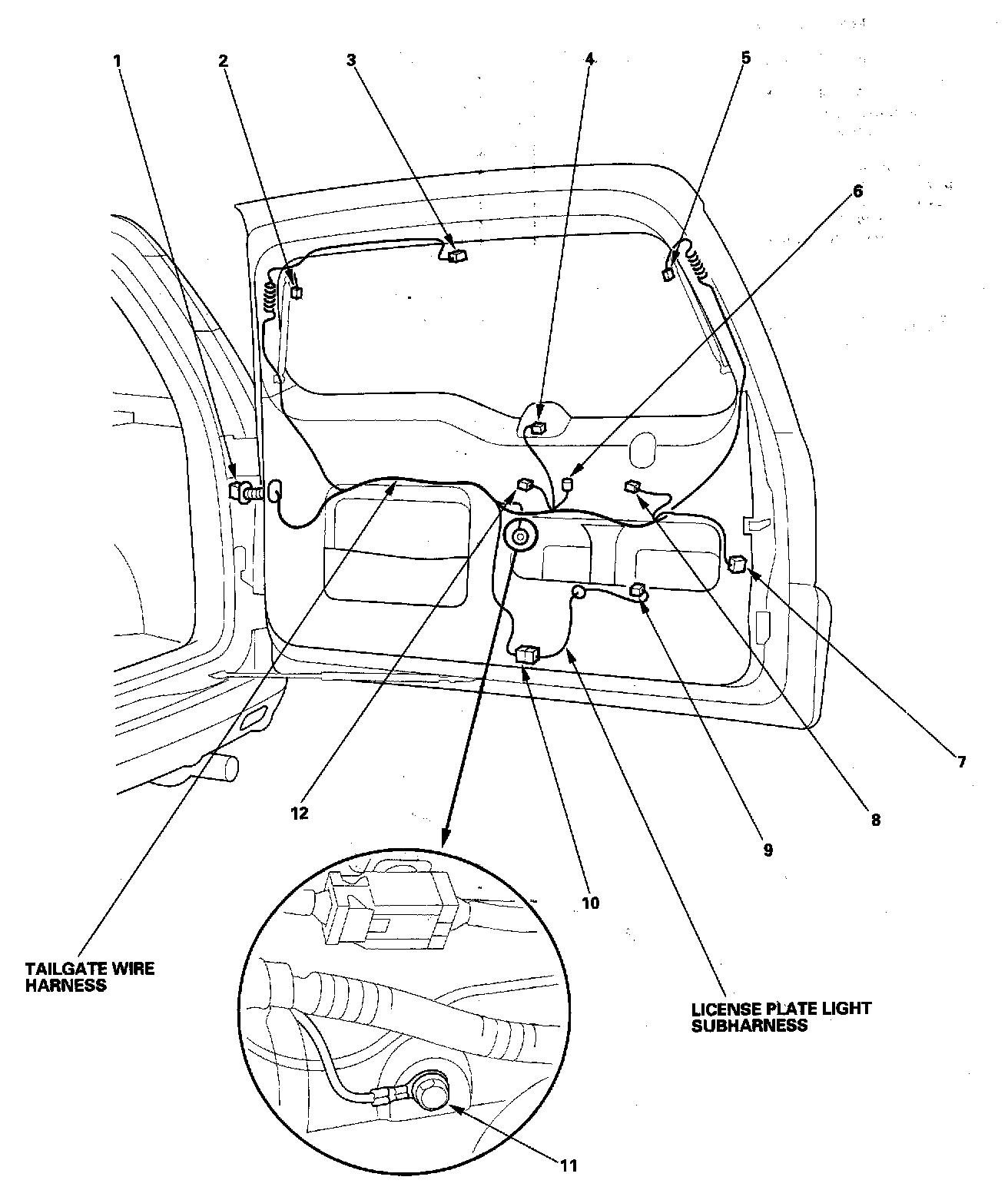

Harness Location View:

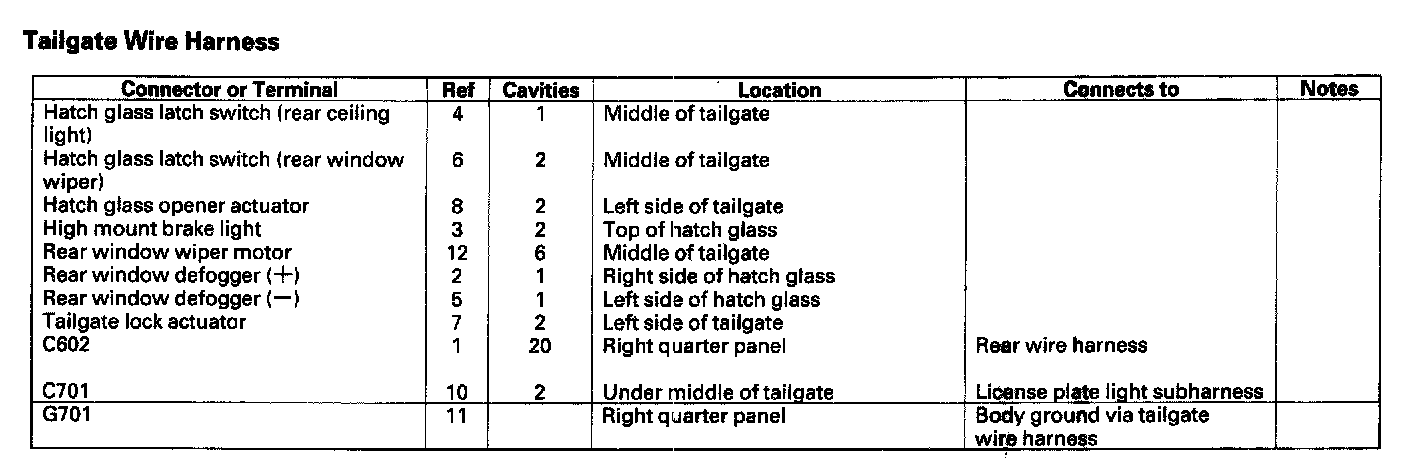

Tailgate Wire Harness:

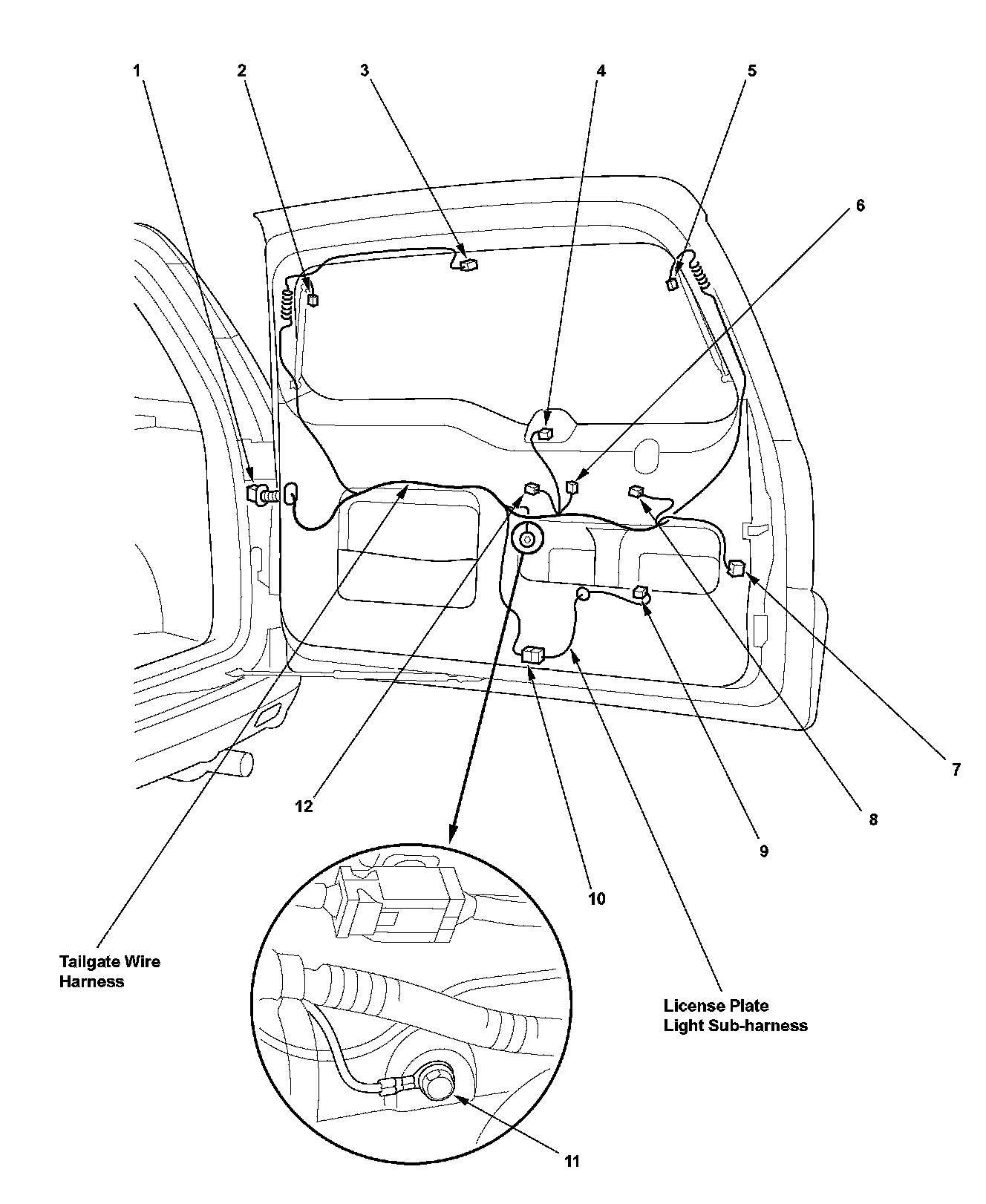

Harness Location View:

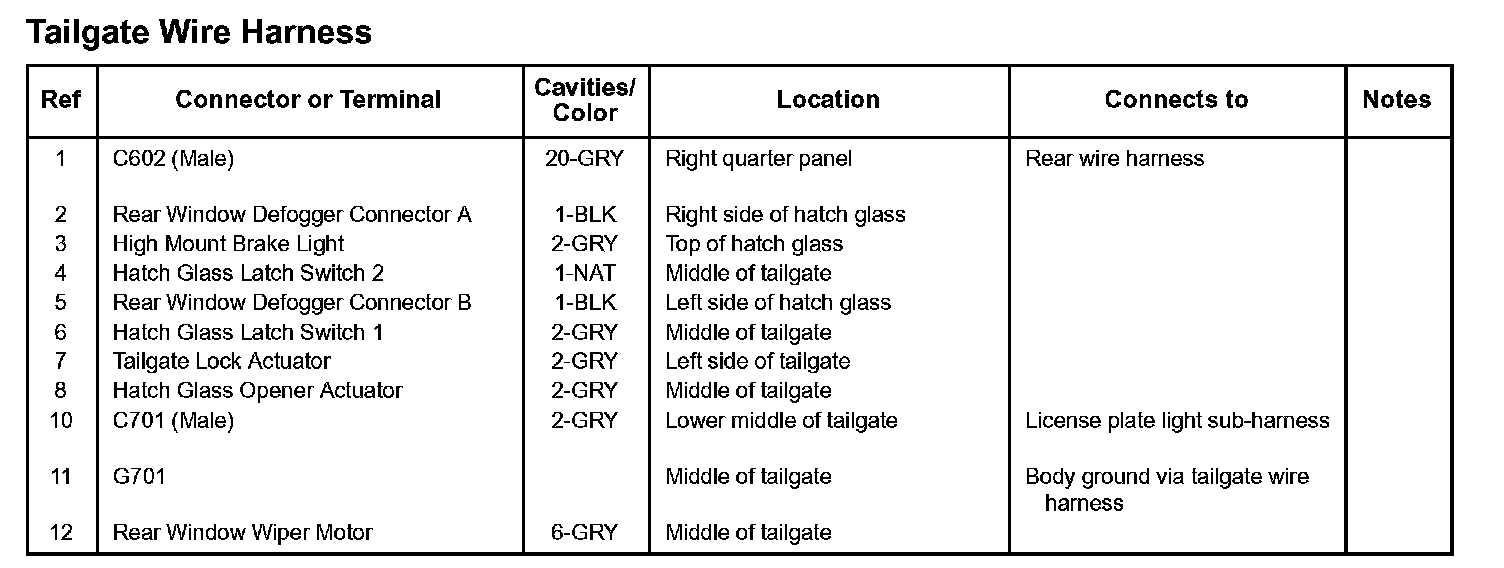

Tailgate Wire Harness:
