Engine Oil: Service and Repair
Engine Oil Replacement 1.
Warm up the engine.
2.

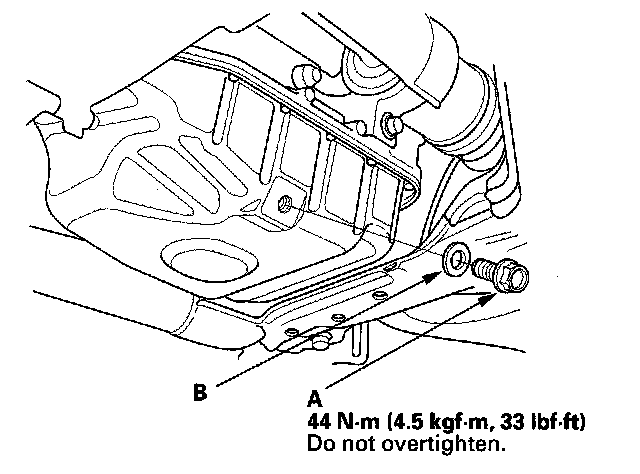

Remove the drain bolt (A), and drain the engine oil.
3.
Reinstall the drain bolt with a new washer (B).
4.
Refill with the recommended oil.
Capacity
At Oil Change:
4.0 L (4.2 US qt) At Oil Change including Filter:
4.2 L (4.4 US qt) After Engine Overhaul:
5.3 L (5.6 US qt) 5.
Run the engine for
more than 3 minutes, then check for oil leakage.
