CMP Sensor B Replacement
CMP Sensor B ReplacementNOTE: CMP sensor B is on the exhaust side of the cylinder head.
1.
Remove the air cleaner.
2.
Disconnect the CMP sensor B 3P connector.
3.

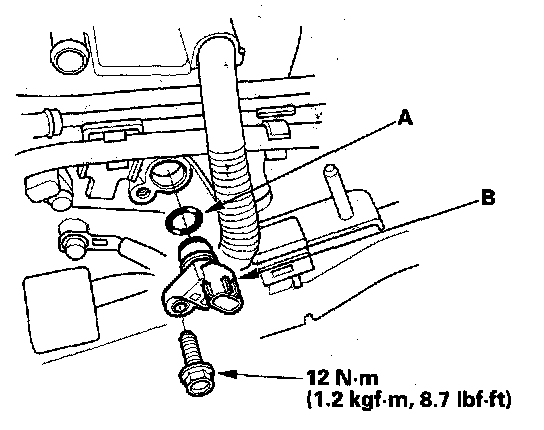

Remove CMP sensor B from the exhaust camshaft side of the cylinder head,
4.
Install the sensor in the reverse order of removal with a new O-ring (A).
5.
Do the CKP pattern clear/CKP pattern learn procedure.
