Variable Induction Position Sensor: Service and Repair

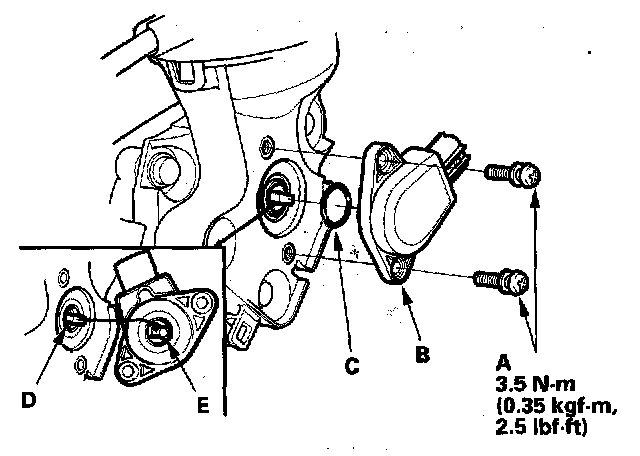

IMT Valve Position Sensor Replacement 1.
Remove the two screws (A) and the IMT position sensor (B).
2.
Install the sensor with a new O-ring (C), and make sure the projection (D) inside the IMT valve matches up with the groove (E) in the sensor.
