Ignition Coil: Service and Repair

Ignition Coil Removal/Installation

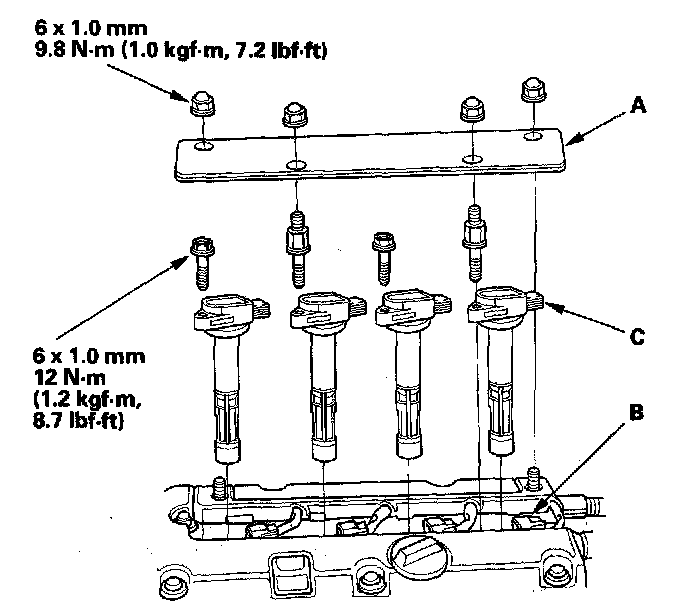

1. Remove the ignition coil cover (A), ignition coil connectors (B) then remove the ignition coils (C).
2. Install the ignition coils in the reverse order of removal.
