Main Bearing Cap
Main Bearing Cap

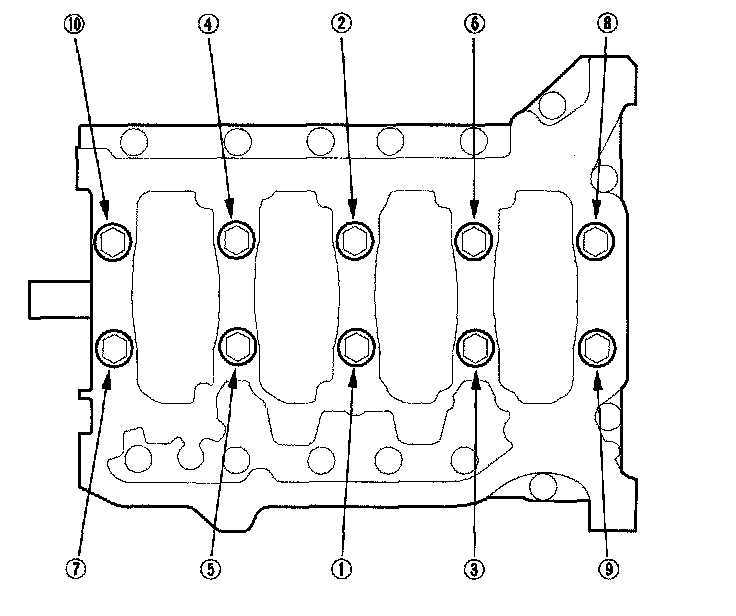

Tighten the bearing cap bolts in sequence to 29 Nm (3.0 kgf-m, 22 ft. lbs.).

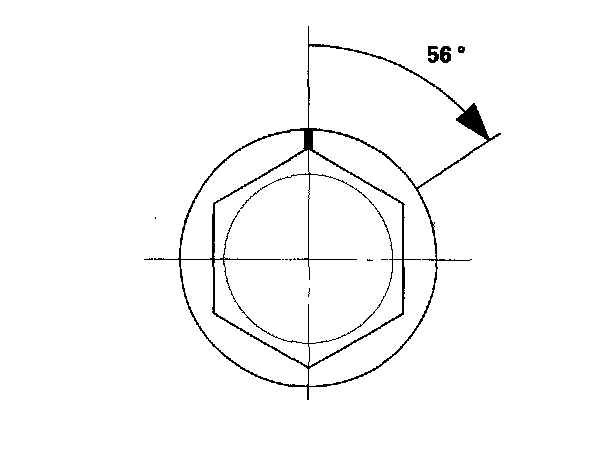

Tighten the bearing cap bolts an additional 56°.

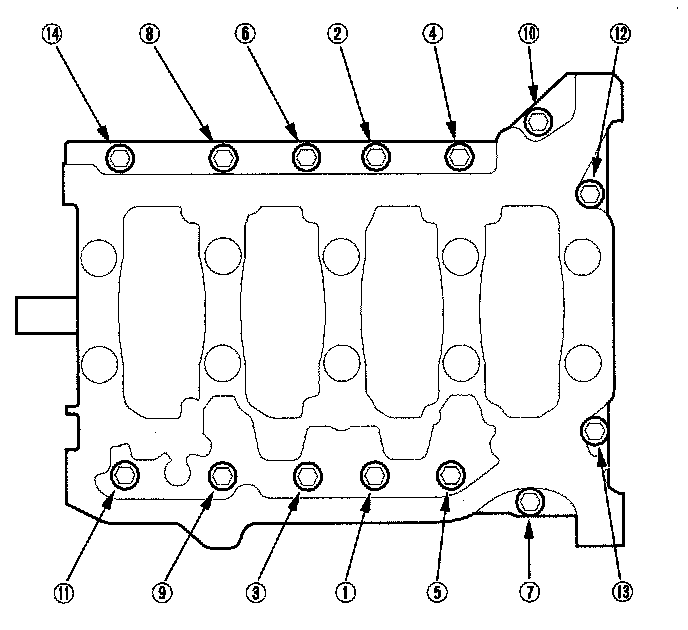

Tighten the 8 mm bolts in sequence to 22 Nm (2.2 kgf-m, 16 ft. lbs.).
Tighten the bearing cap bolts in sequence to 29 Nm (3.0 kgf-m, 22 ft. lbs.).
Tighten the bearing cap bolts an additional 56°.
Tighten the 8 mm bolts in sequence to 22 Nm (2.2 kgf-m, 16 ft. lbs.).
