Recall - Driver's Power Window Sw. Inop. Or Intermittent: Overview
11-057September 23, 2011
Applies To:
2006 CR-V - ALL VINs Beginning with JHL - Check VIN Status Inquiry
Safety Recall: Driver's Power Window Switch Does Not Work or Works Intermittently
(Supersedes 11-057, dated September 7, 2011, to revise the information marked by the black bars and asterisks)
REVISION SUMMARY
*An example of the customer letter was added.*
BACKGROUND
If silicone based cleaning agents are used near the master power window switch, the residue can adhere to the switches circuit board which may cause accelerated wear. As a result, the switch may overheat and melt, causing smoke, preventing the window to be rolled up or down, and the possibility of a fire.
CUSTOMER NOTIFICATION
Owners of affected vehicles will receive a notification of this campaign. An example of the customer notification is at the end of this service bulletin.
Do an iN VIN status inquiry to make sure the vehicle is shown as eligible.
In addition, check for a punch mark above the first character of the engine compartment VIN. A punch mark in that location means this campaign has already been completed.
Some vehicles affected by this campaign may be in your used vehicle inventory. As a matter of federal law, these vehicles must be repaired before they are sold.
Should your dealership sell an unrepaired vehicle that subsequently causes injury or damage because of the recalled item, the dealership will be solely responsible to the damaged party, and will be required to defend and indemnify American Honda for any resulting claims. To see if a vehicle in inventory is affected by this recall, do a VIN status inquiry before selling it.
CORRECTIVE ACTION
Replace the driver's power window master switch.
PARTS INFORMATION
Driver's Power Window Master Switch:
P/N 06357-59A-305
TOOL INFORMATION
KTC Trim Tool Set: T/N S0JATP2014
WARRANTY CLAIM INFORMATION
Operation Number: 7441C8
Flat Rate Time: 0.2 hour
Failed Part: P/N 35750-59A-CO5ZA
Defect Code: 5WT00
Symptom Code: R9300
Skill Level: Repair Technician
REPAIR PROCEDURE

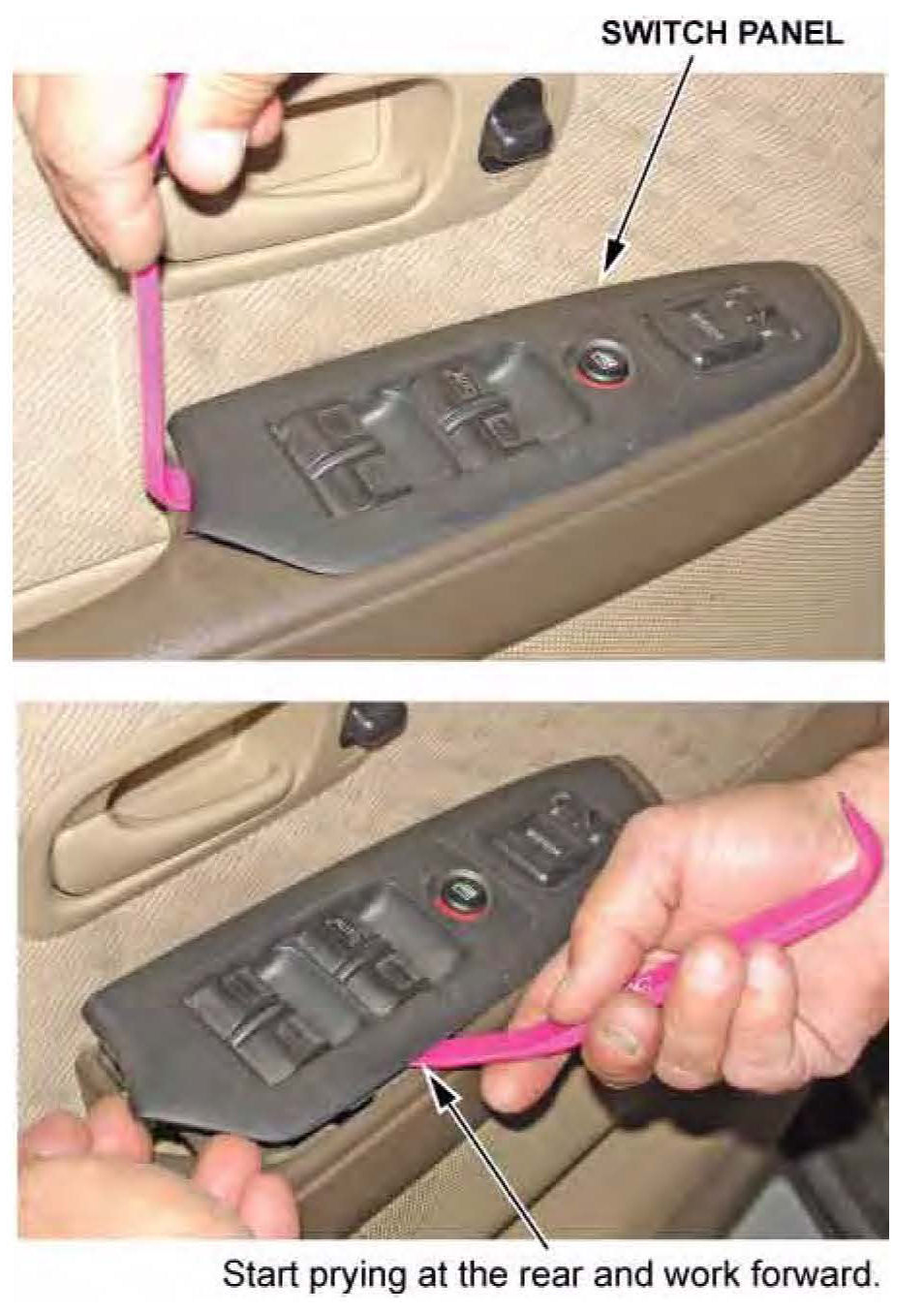

1. Using the appropriate trim tool, start prying at the rear of the driver's switch panel and move forward to release the hooks.

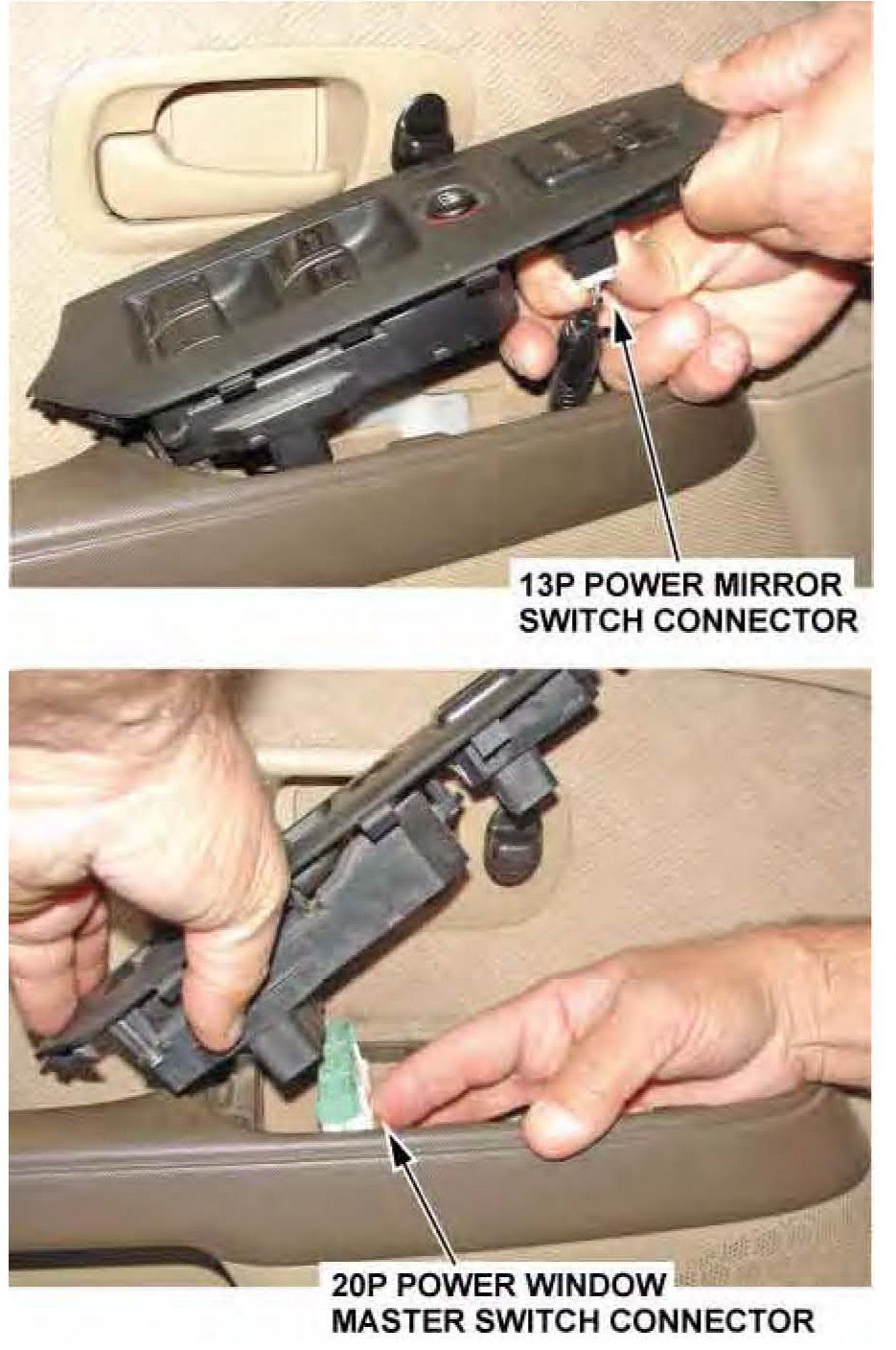

2. Disconnect the two connectors from the driver's power window master switch.

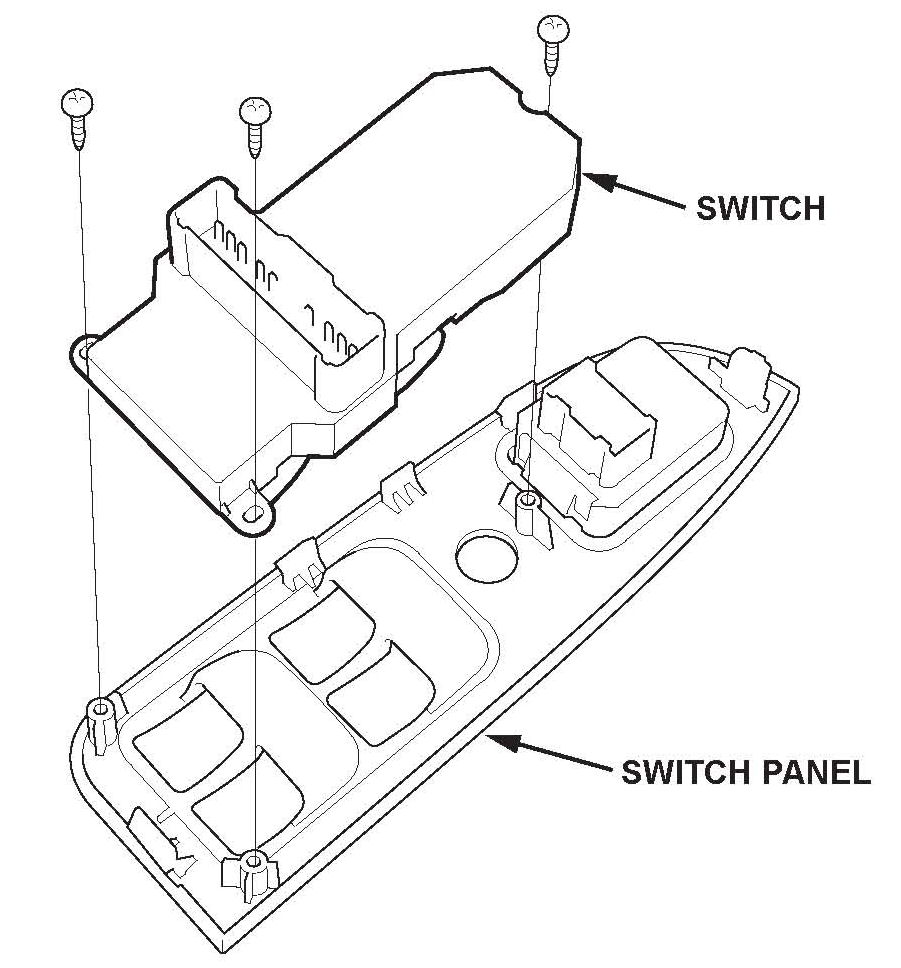

3. Remove the three screws that attach the switch to the switch panel.
4. Using the three screws removed in step 3, install the new switch to the switch panel.
5. Reconnect the connectors.
6. Reinstall the driver's switch panel into the door panel.
7. Reset the power window control unit:
^ Turn the ignition switch to ON (II).
^ Move the driver's window all the way down by holding the driver's window switch firmly down; when the window reaches the bottom, hold the driver's window switch down for 2 seconds.
^ Move the driver's window all the way up by holding the driver's window switch firmly up; when the window reaches the top, hold the switch firmly up for 2 seconds.
^ If the window does not work in AUTO, turn the ignition switch to LOCK (0) and repeat step 7.
8. Center-punch a completion mark above the first character of the engine compartment VIN:
