Passenger's Window Switch Test/Replacement

Passenger's Window Switch Test/Replacement

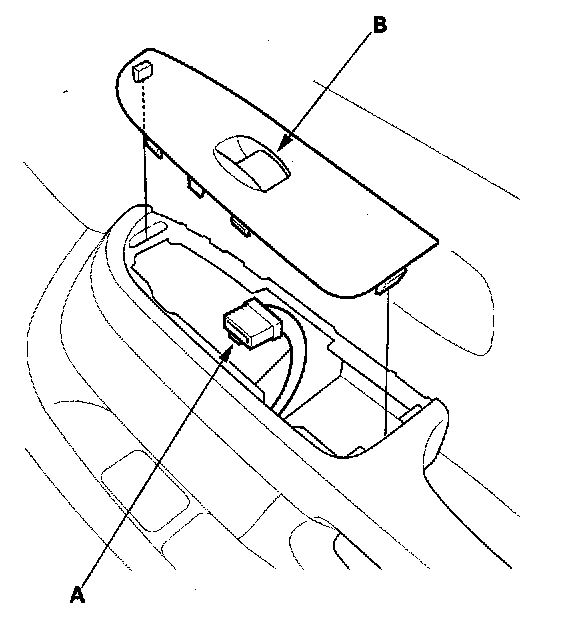

1. Remove the switch panel from the door panel.

2. Disconnect the 5P connector (A) from the power window switch (B).

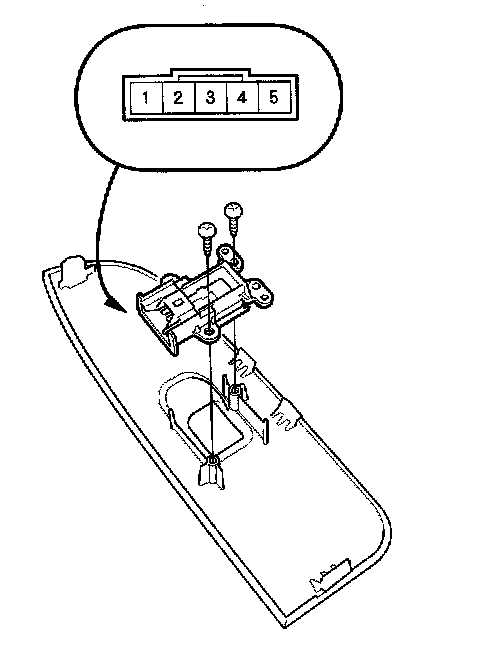

3. Remove the two screws and the passenger's power window switch.

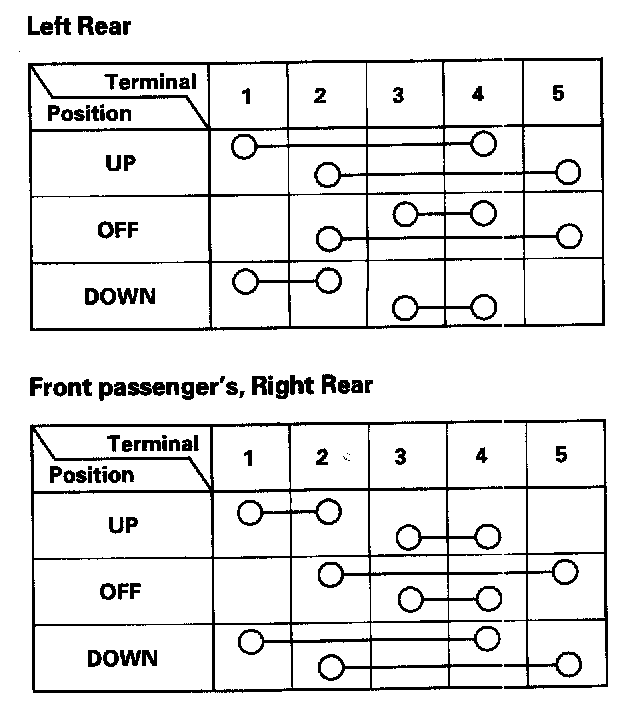

4. Check for continuity between the terminals in each switch position according to the table.
5. If the continuity is not as specified, remove the two screws and replace the switch.
