System Description

Rear Window Wiper System Description




Intermittent operation

Rear window wiper switch ON: The wiper operates every 7 seconds after completing two sweeps.

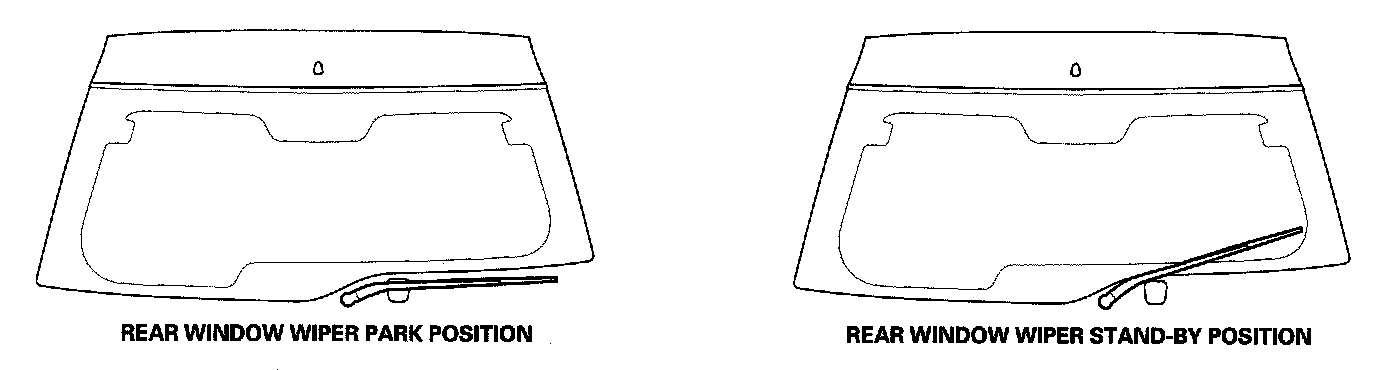

Rear window wiper switch OFF: The wiper returns to the park position.

Washer/Wiper combined system
Rear window wiper switch ON: The wiper operates continuously while the washer switch is ON.

Rear window wiper switch OFF: After switching OFF the washer switch, the wiper returns to the park position after completing two sweeps.

Fail-safe Function

Lock Function: The rear window wiper will not operate if the hatch glass is open.

Emergency Stop Function: If the hatch glass is opened while the rear window wiper is operating, it will automatically stop.

Automatic Park Function: If the ignition switch is turned OFF while the rear window wiper is operating, the wiper will return to the park position.

NOTE: To avoid interference with the vehicle's spare tire, the rear window wiper does not fold out as on previous models.
