Home >> Honda >> 2006 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 176-200 >> 191

View 176-200: 191

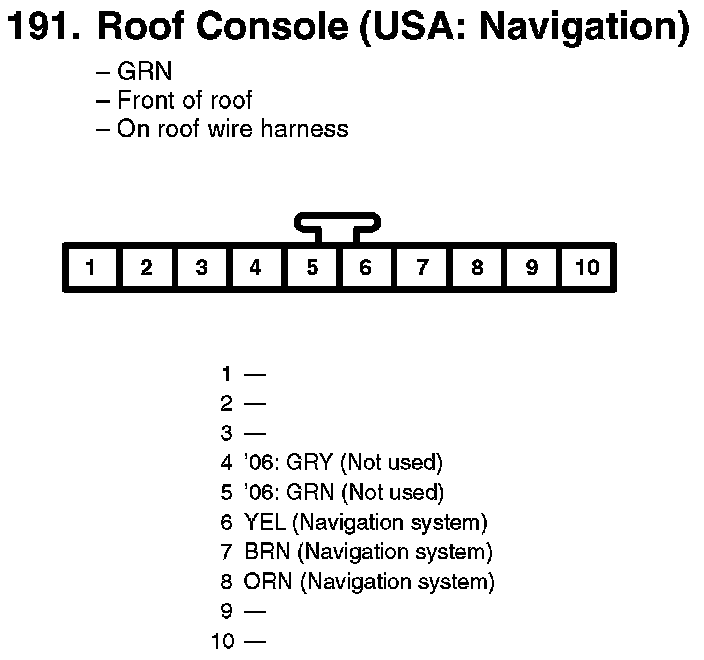

191. Roof Console (USA: Navigation):
