Thermal Limiting Fuse: Service and Repair

A/C Compressor Thermal Protector Replacement

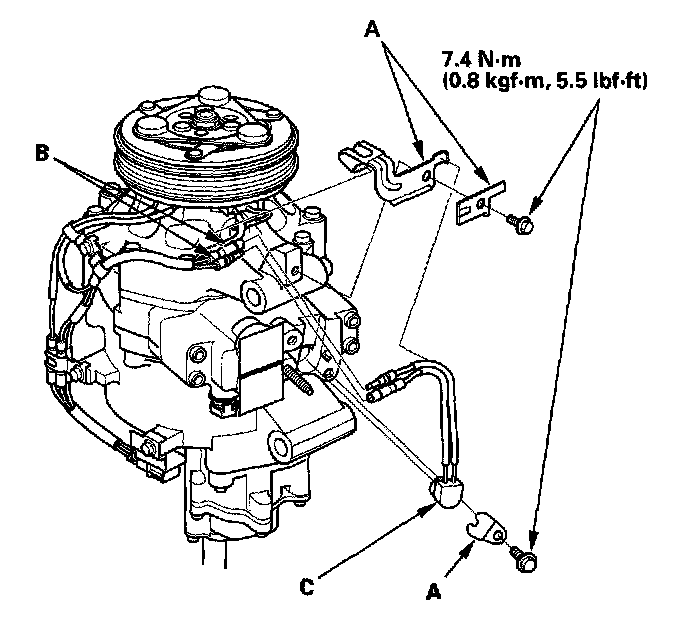

1. Remove the bolts and the holders (A). Disconnect 1P connectors (B), then remove the thermal protector (C).

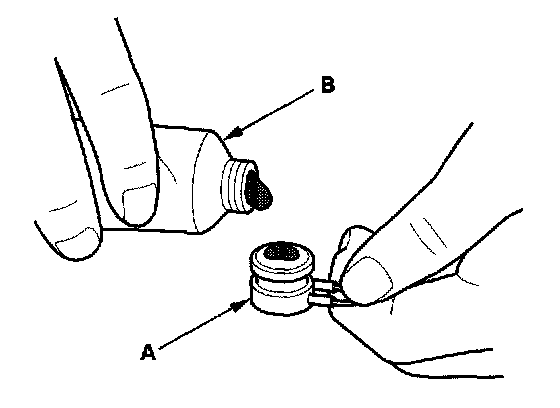

2. Replace the thermal protector (A) with a new one, and apply silicone sealant (B) to the bottom of the thermal protector.
3. Install the thermal protector in the reverse order of removal.
