Home >> Honda >> 2006 >> Civic L4-1.8L CNG >> Repair and Diagnosis >> Locations >> Harness Locations >> Engine Wire Harness (GX) >> Part 1 of 2

Part 1 of 2

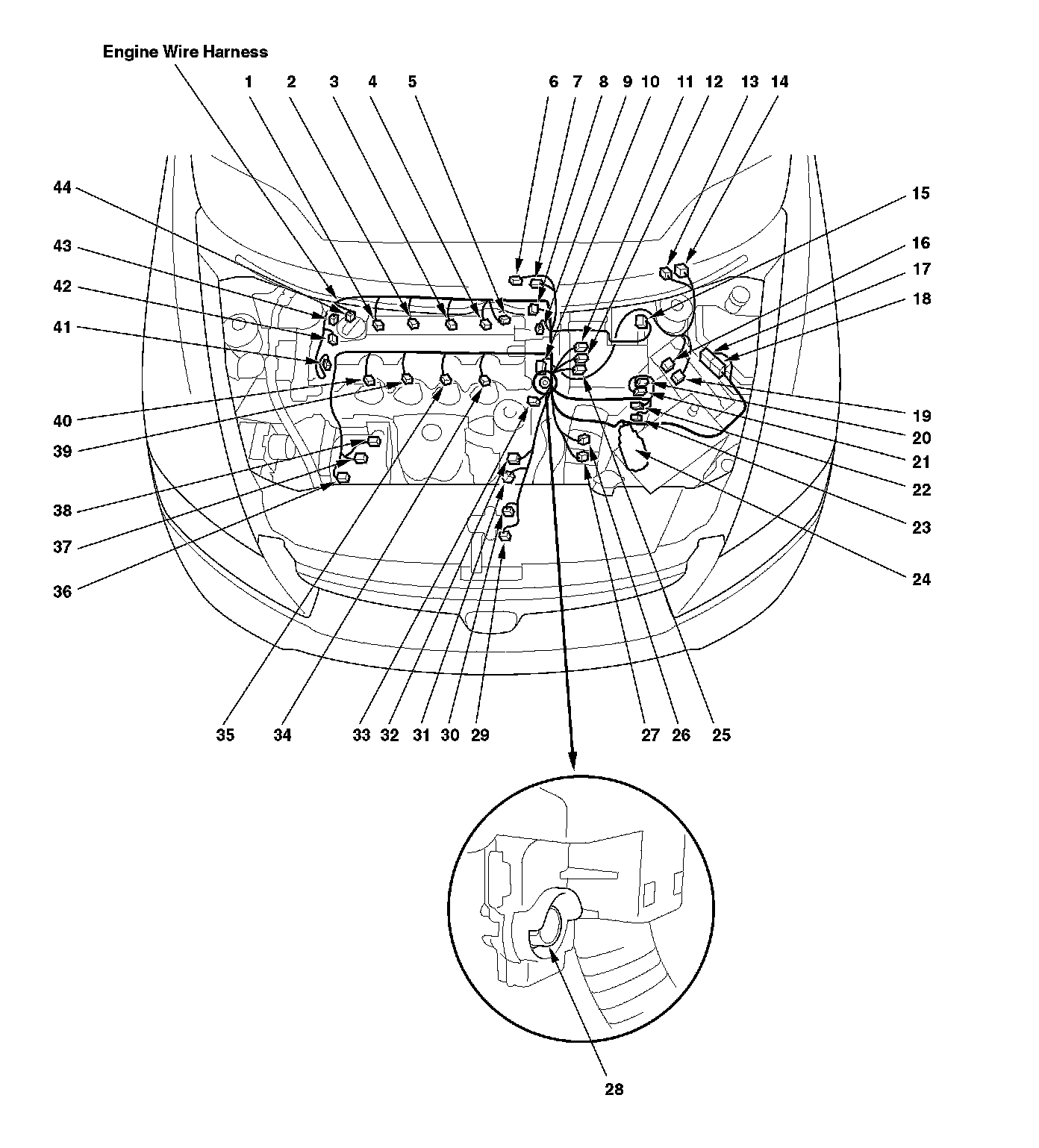

Harness Location View:



Engine Wire Harness (GX):
