Trunk / Liftgate Switch: Diagrams

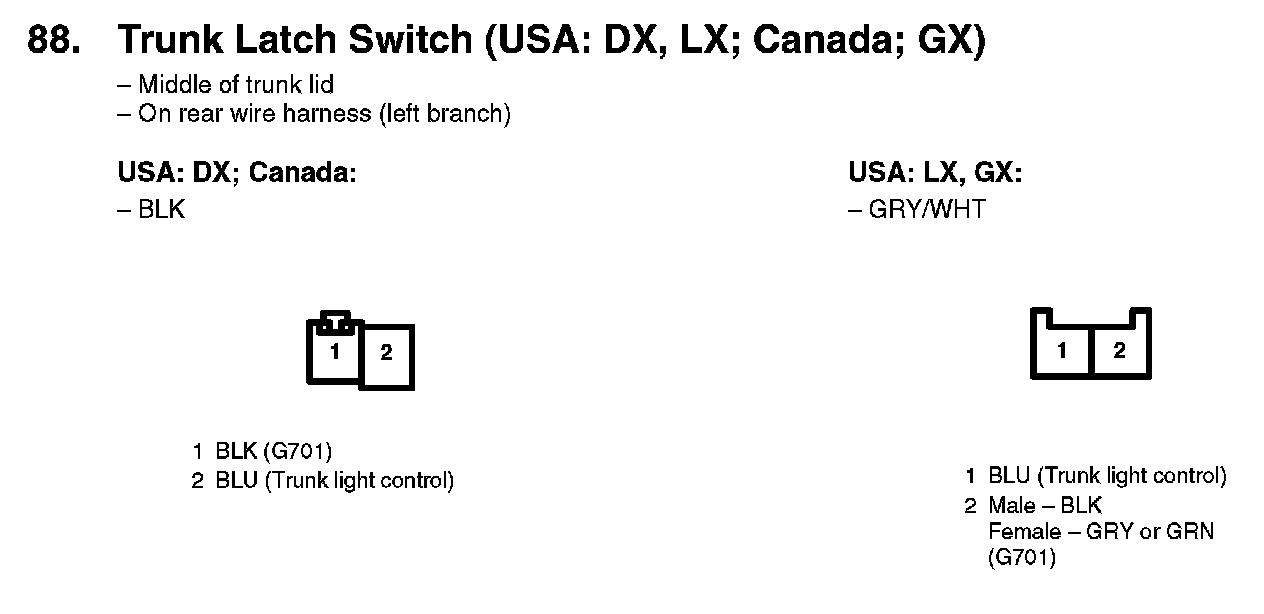

88. Trunk Latch Switch (USA: DX, LX; Canada; GX):

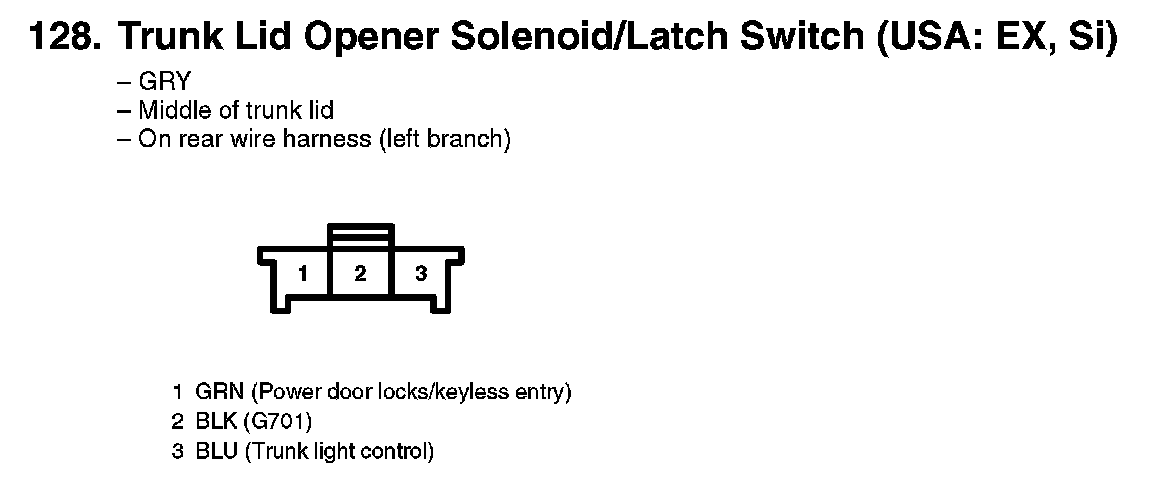

128. Trunk Lid Opener Solenoid/Latch Switch (USA: EX, Si):
