Instrument Panel Control Module

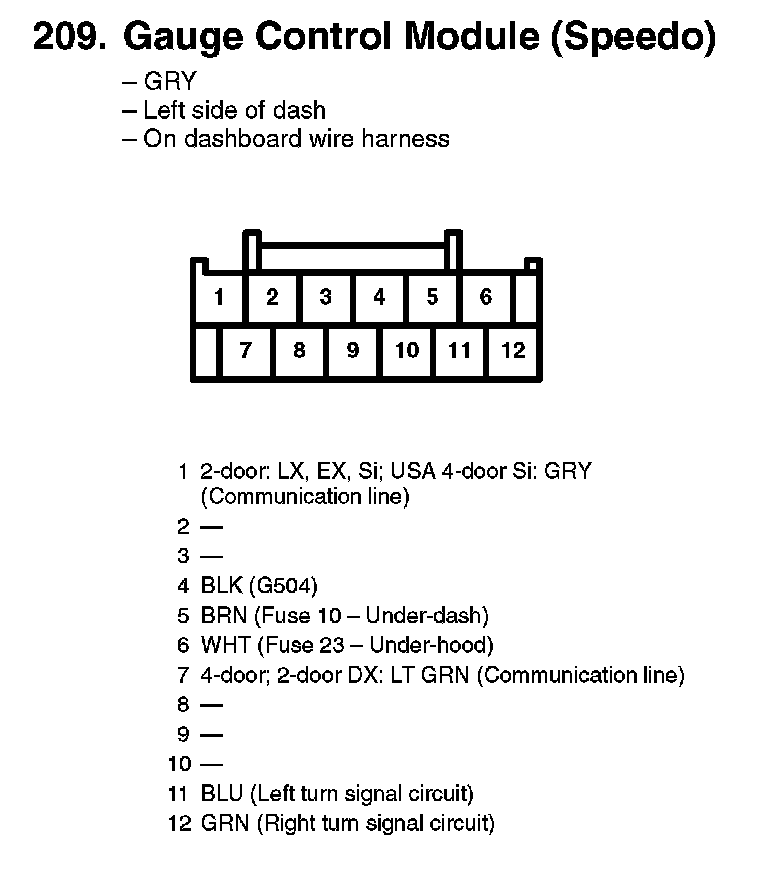

209. Gauge Control Module (Speedo):



236. Gauge Control Module (Tach):
