ECM/PCM Circuit Diagrams

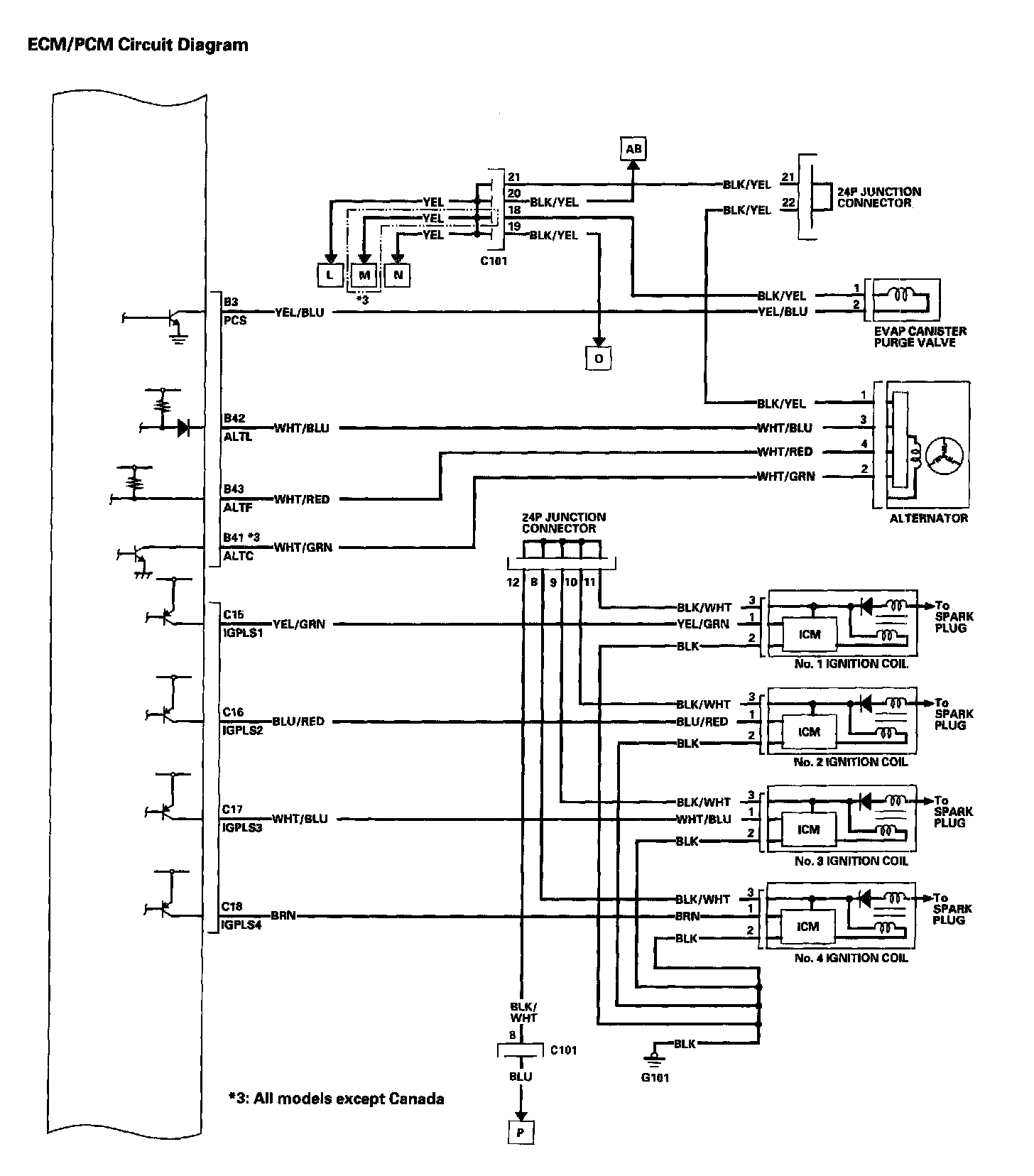

ECM/PCM Circuit Diagram 11-45:

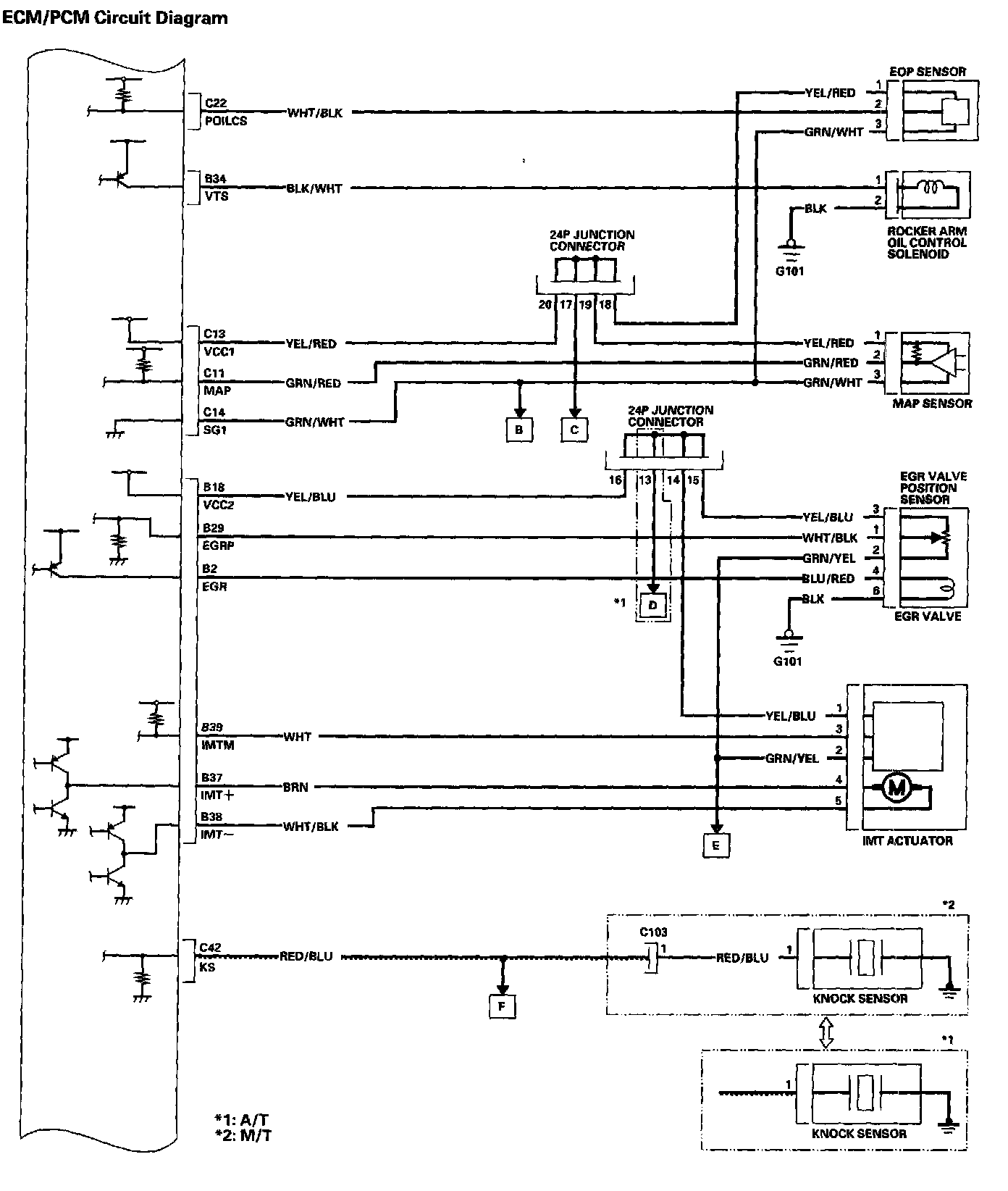

ECM/PCM Circuit Diagram 11-46:

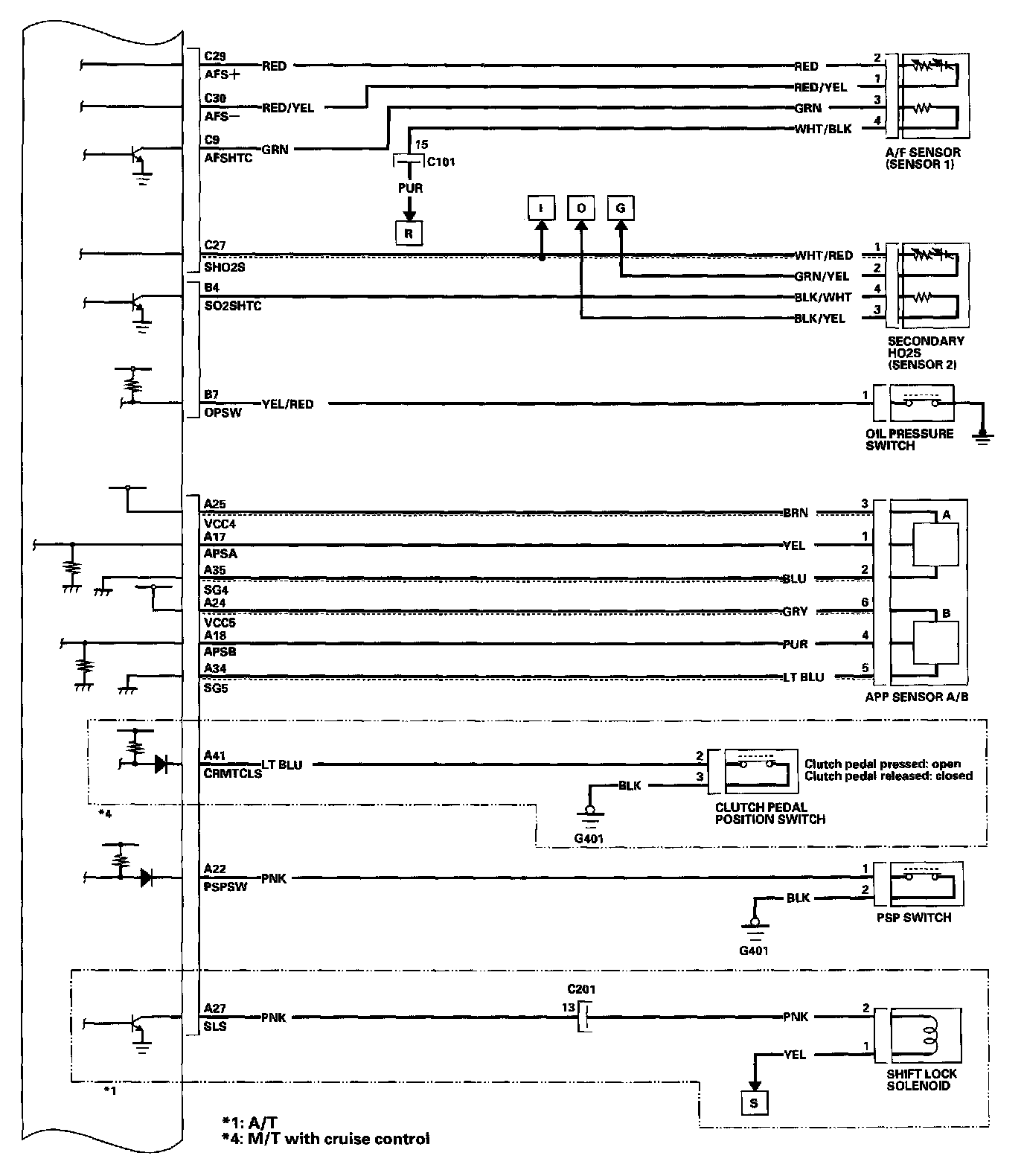

ECM/PCM Circuit Diagram 11-47:

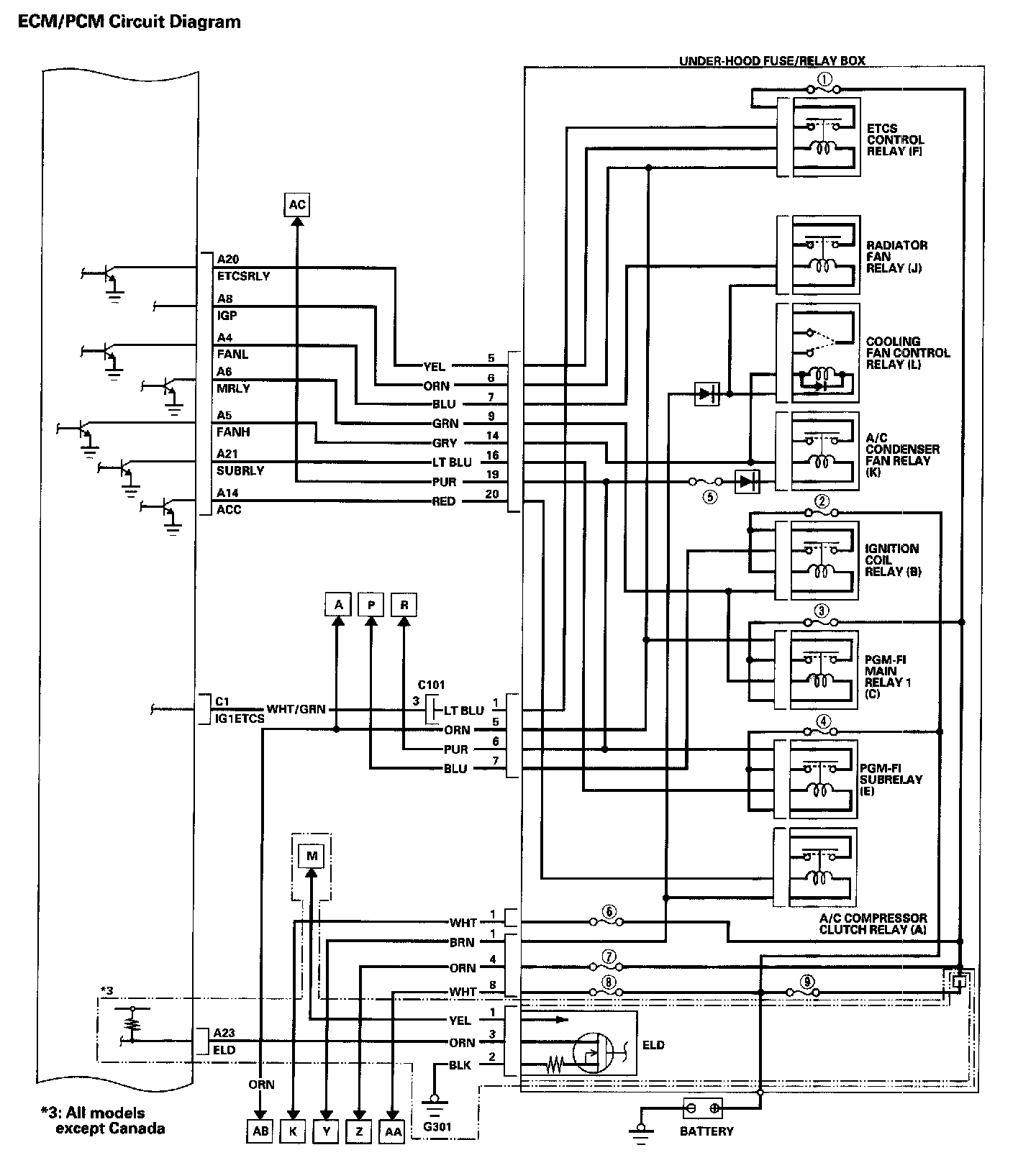

ECM/PCM Circuit Diagram 11-48:

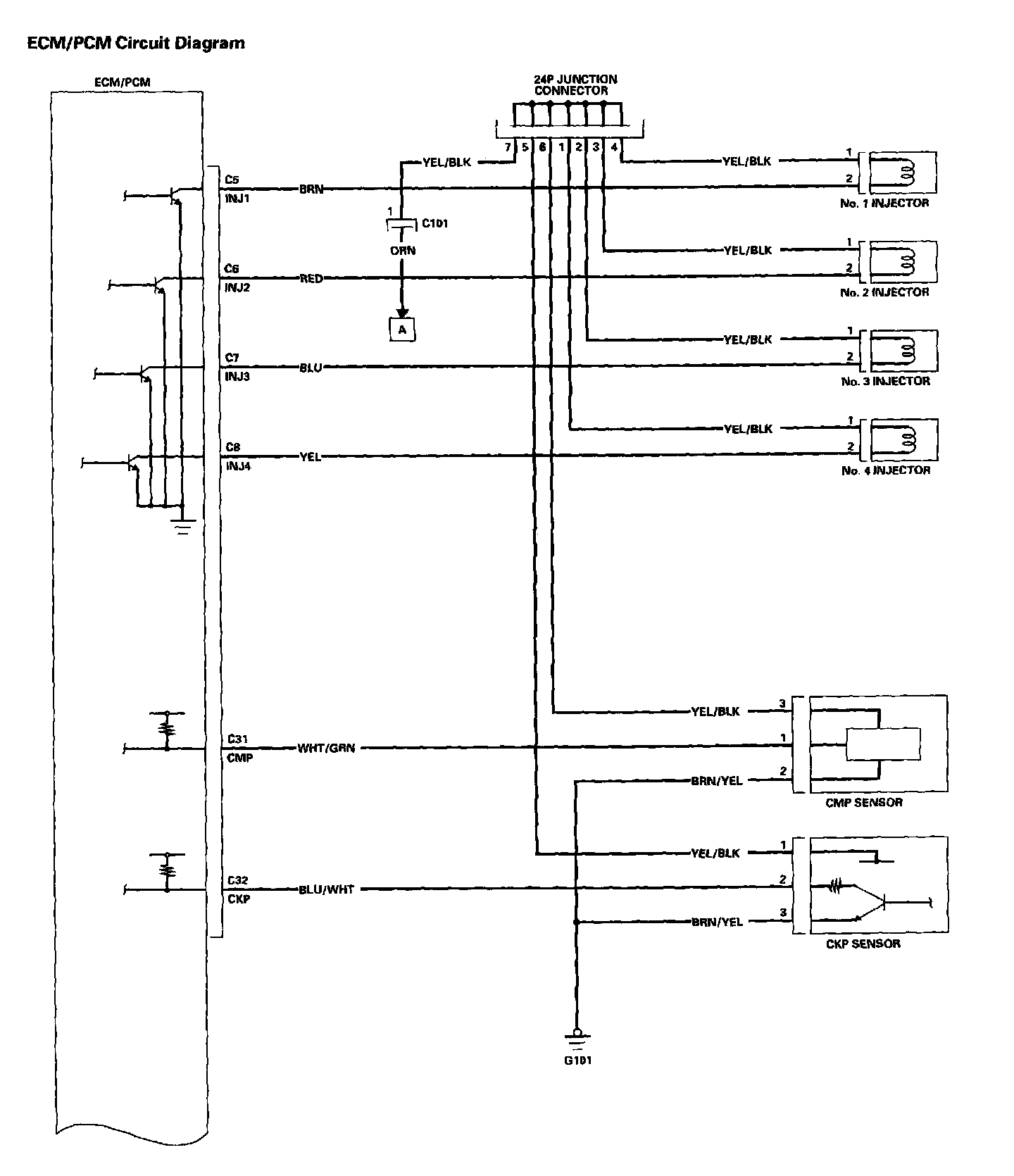

ECM/PCM Electric Diagram 11-49:

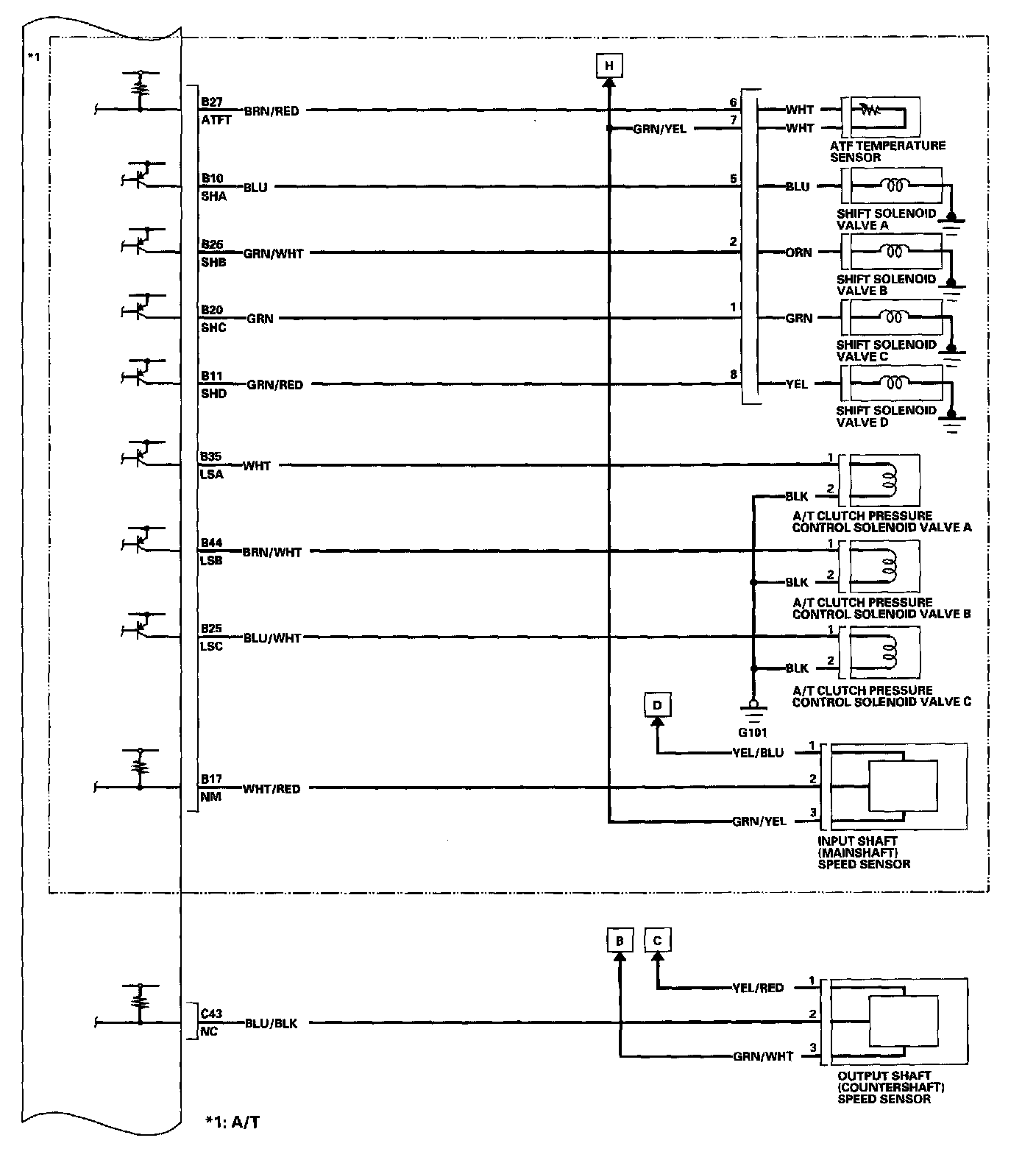

ECM/PCM Circuit Diagram 11-50:

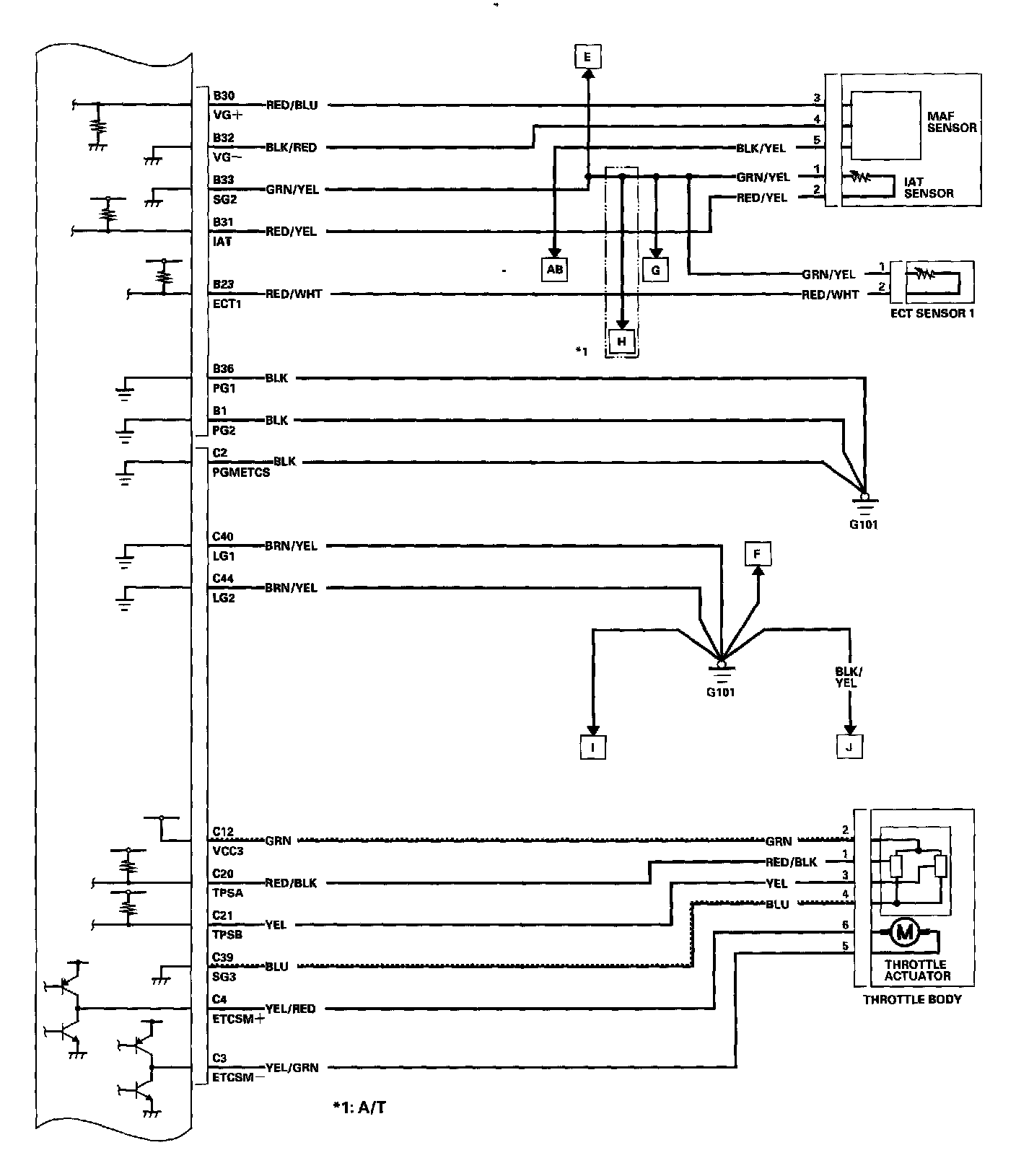

ECM/PCM Electric Diagram 11-51:

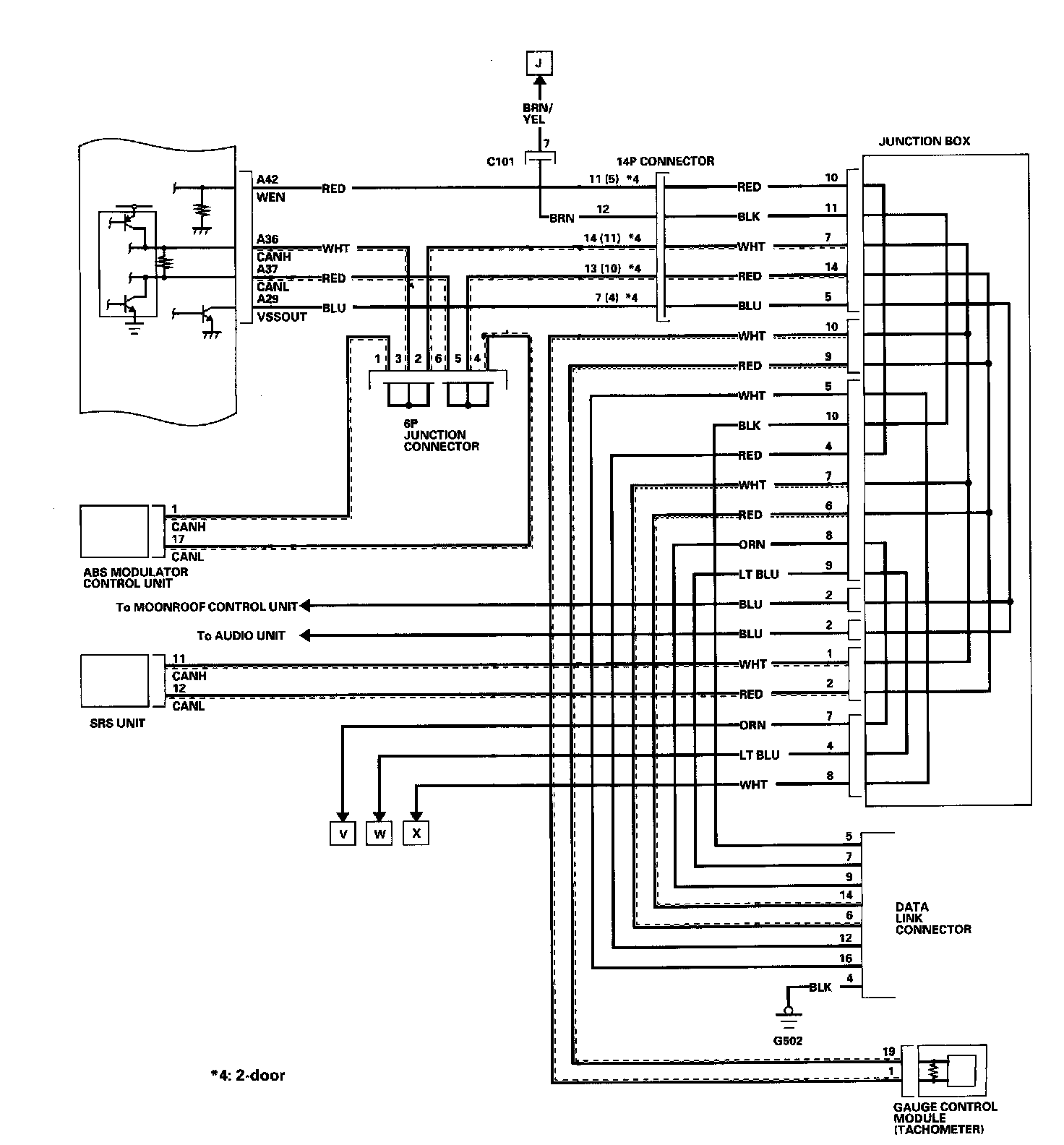

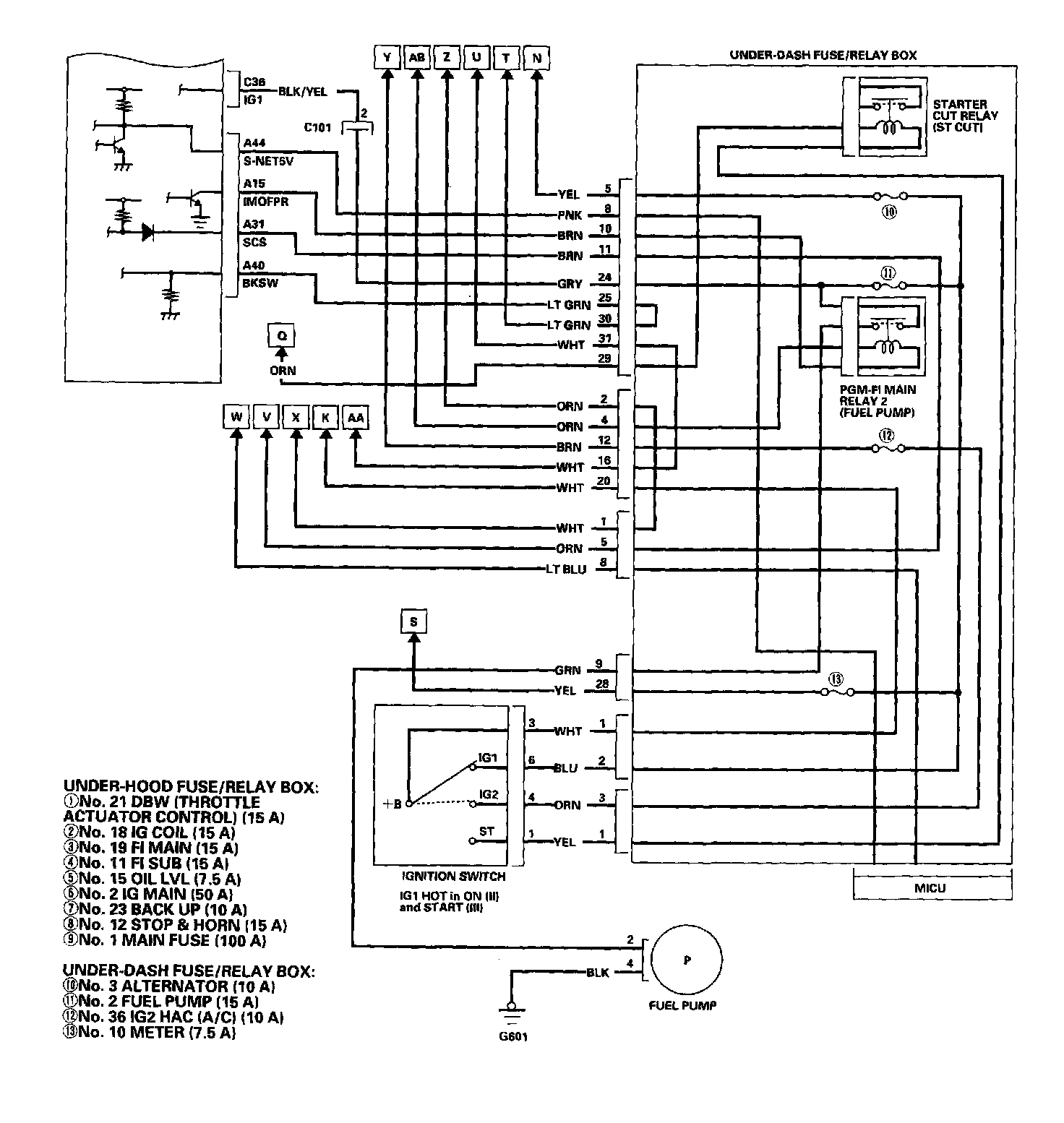

ECM/PCM Circuit Diagram 11-52:

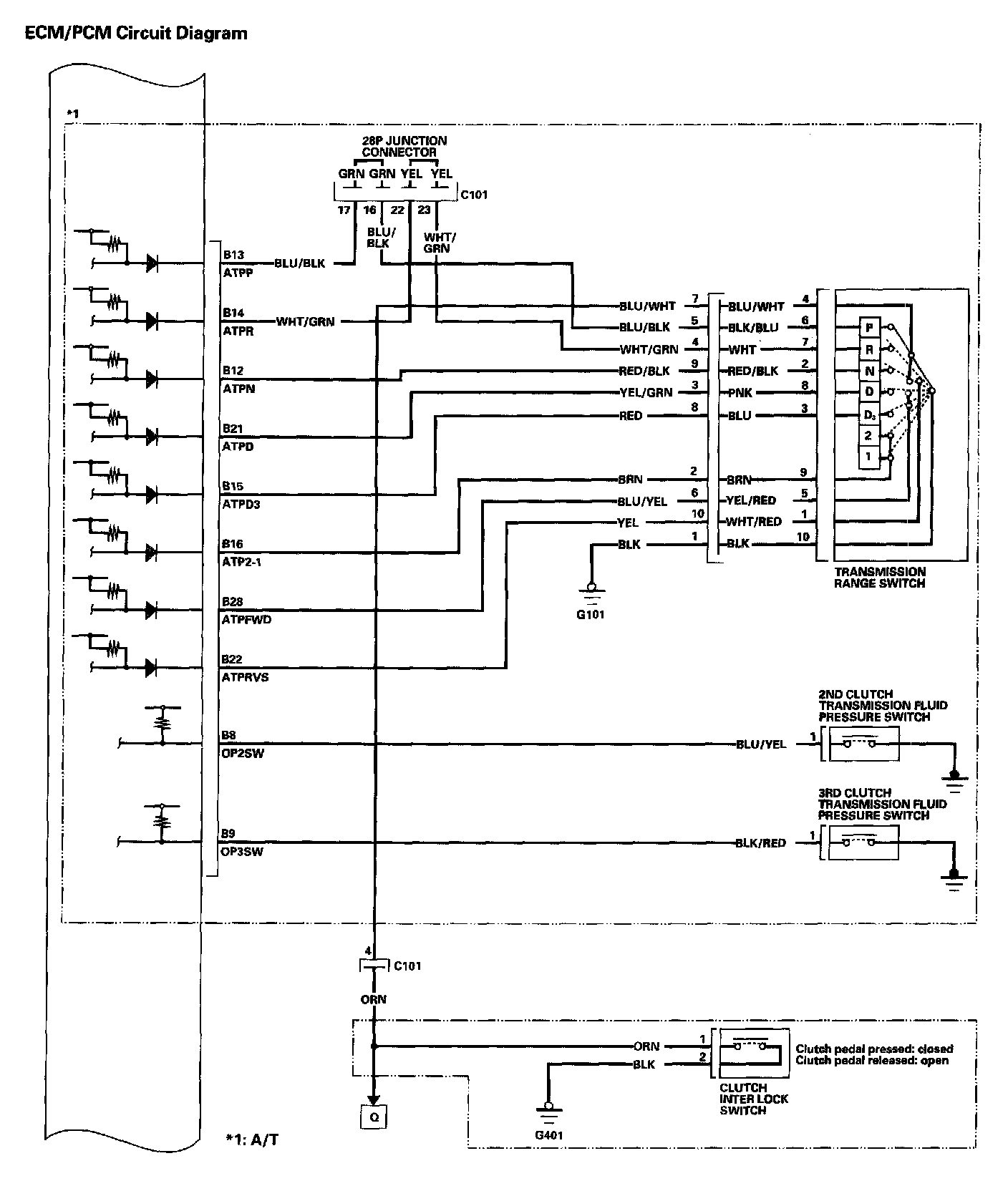

ECM/PCM Electric Diagram 11-53:

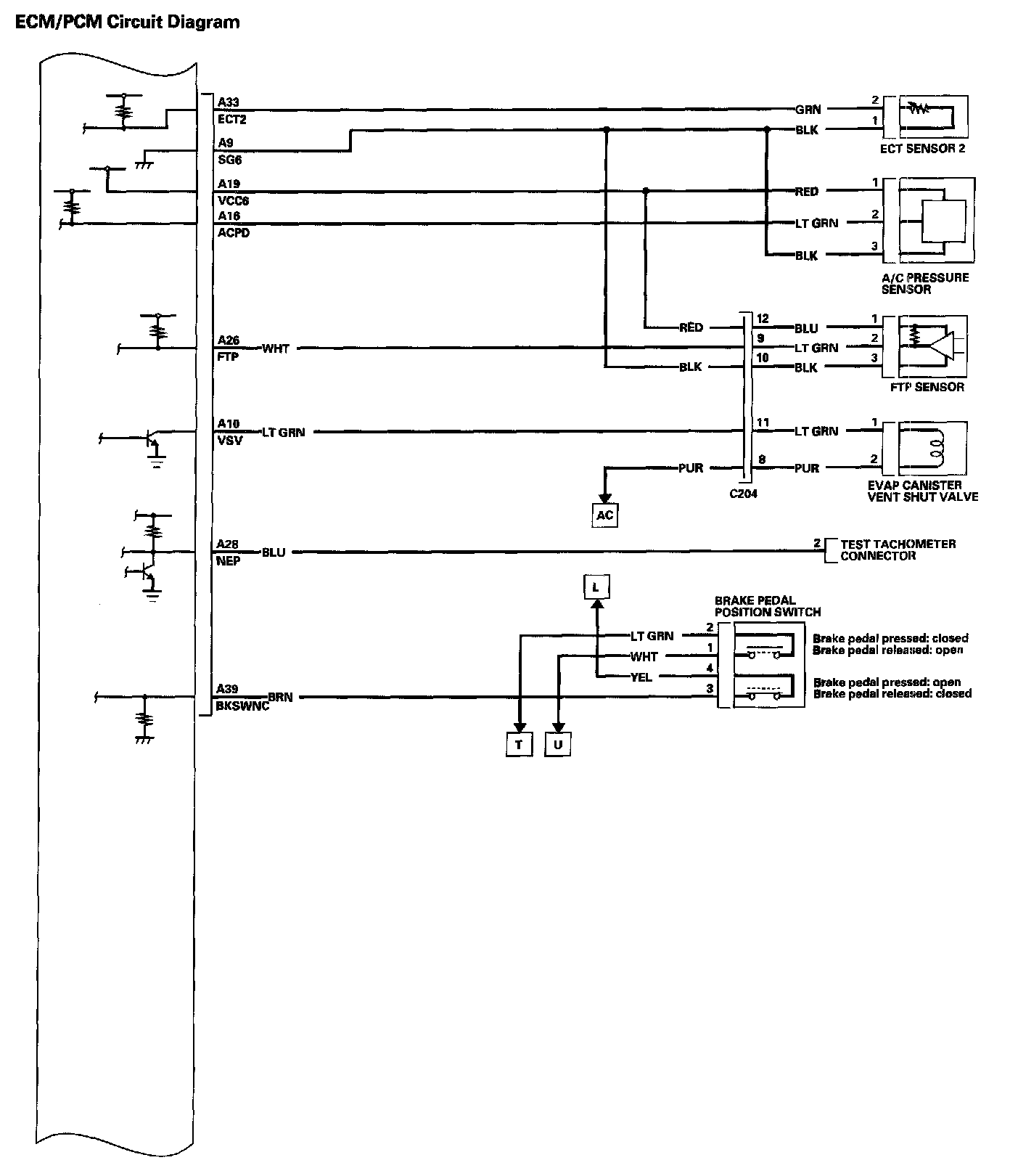

ECM/PCM Circuit Diagram 11-54:

ECM/PCM Circuit Diagram 11-55:
