Home >> Honda >> 2006 >> Civic L4-1.8L >> Repair and Diagnosis >> Lighting and Horns >> Fog/Driving Lamp >> Fog/Driving Lamp Switch >> Diagrams

Fog/Driving Lamp Switch: Diagrams

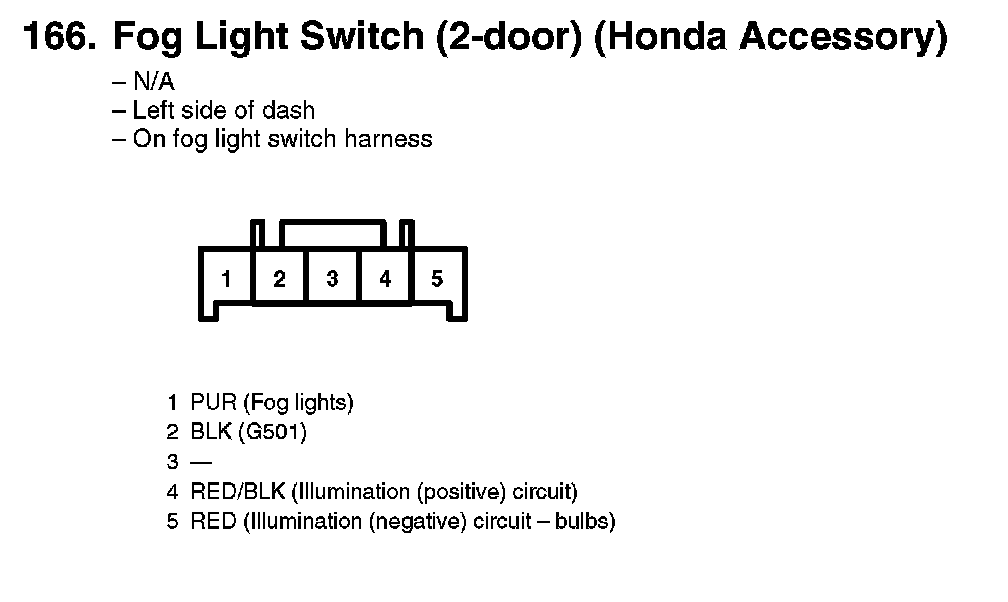

166. Fog Light Switch (2-door) (Honda Accessory):
