CMP Sensor Replacement
CMP Sensor Replacement1. Remove the cowl cover and under-cowl panel.

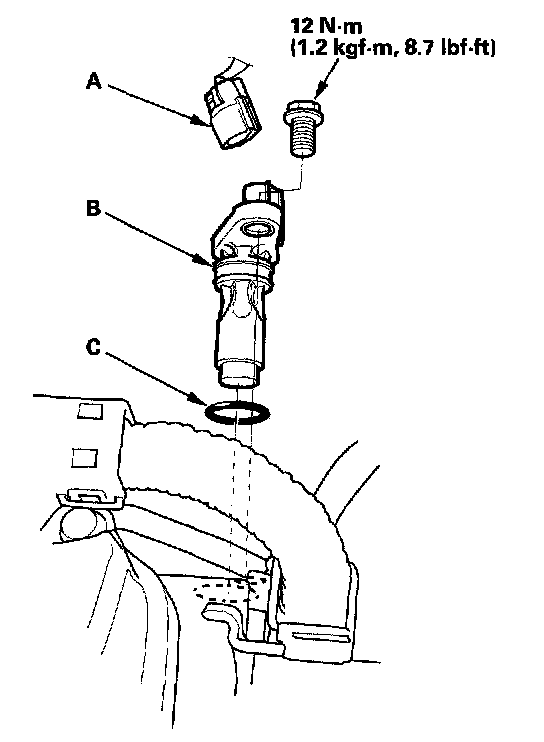

2. Disconnect the CMP sensor connector (A).
3. Remove the CMP sensor (B).
4. Install the sensor in the reverse order of removal with a new O-ring (C).
1. Remove the cowl cover and under-cowl panel.
2. Disconnect the CMP sensor connector (A).
3. Remove the CMP sensor (B).
4. Install the sensor in the reverse order of removal with a new O-ring (C).
