Manifold Pressure/Vacuum Sensor: Service and Repair

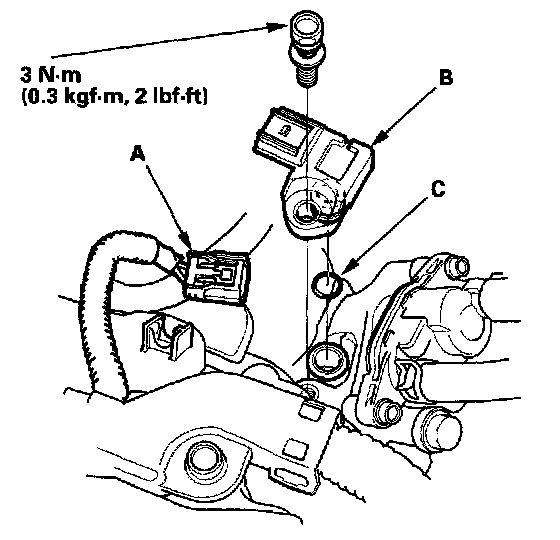

MAP Sensor Replacement

1. Remove the cowl cover and under-cowl panel.




2. Disconnect the MAP sensor connector (A).
3. Remove the MAP sensor (B).
4. Install the sensor in the reverse order of removal with a new O-ring (C).
