Variable Induction Control Actuator: Service and Repair
IMT Actuator Removal/Installation1. Remove the intake manifold.

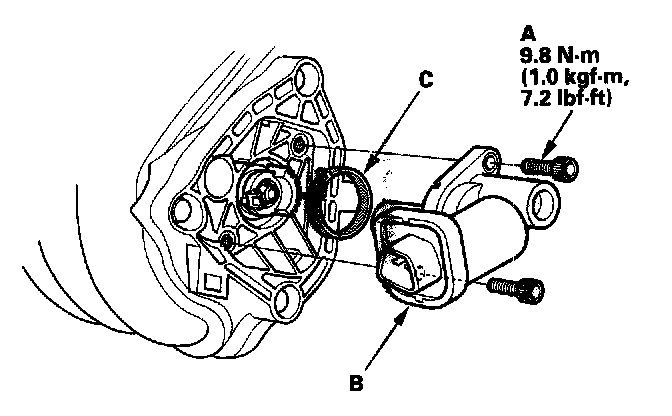

2. Remove the bolts (A) and the IMT actuator (B).
3. Install the actuator in the reverse order of removal with a new O-ring (C).
1. Remove the intake manifold.
2. Remove the bolts (A) and the IMT actuator (B).
3. Install the actuator in the reverse order of removal with a new O-ring (C).
