Knock Sensor: Locations
PGM-FI System - Component Location Index:

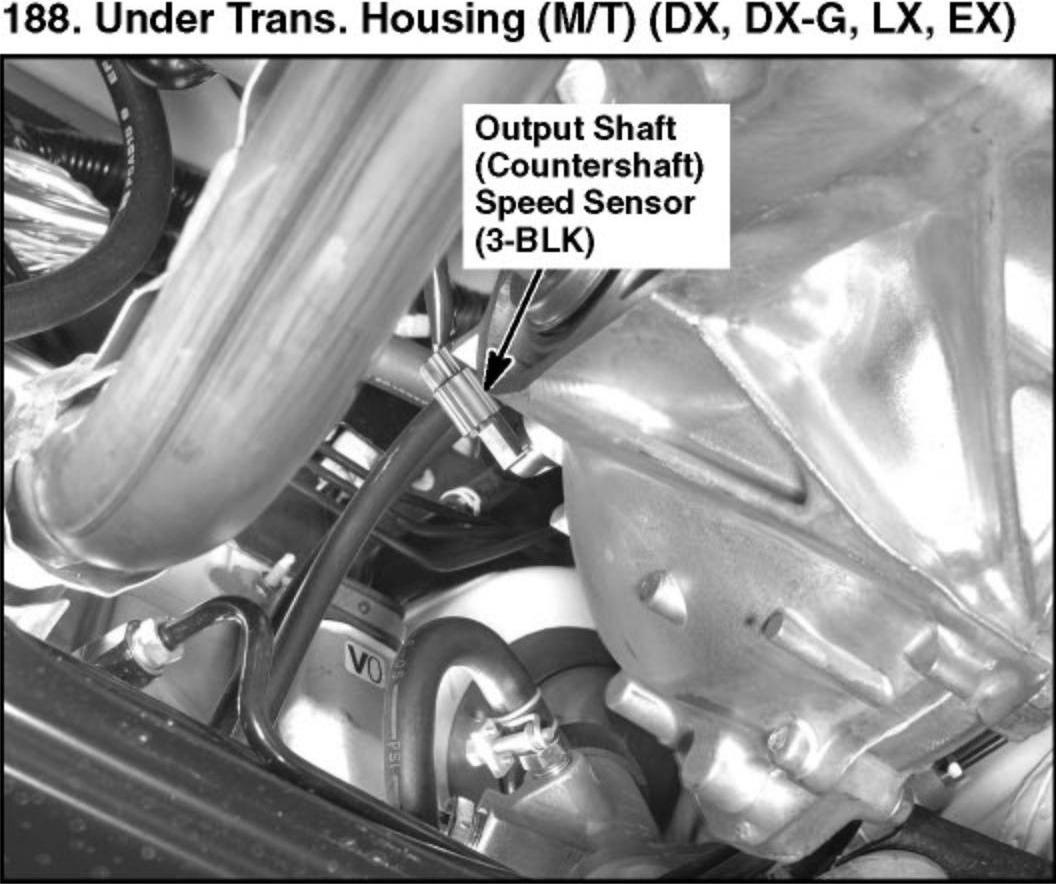

188. Under Trans. Housing (M/T) (DX, DX-G, LX, EX):
