Engine Controls - Intermittent Vibration At Idle
10-073July 15, 2011
Applies To:
2006-08 Civic with R18A1 Engine - ALL
Intermittent Engine Vibration At Idle When At A Stop
(Supersedes 10-073, dated November 24, 2010, to revise the information marked by the black bars and asterisks).
REVISION SUMMARY
* Under WARRANTY CLAIM INFORMATION, the flat rate time was changed because the MVCI updates control modules more efficiently.*
SYMPTOM
The driver feels an intermittent engine vibration when the vehicle is stopped and idling with various electrical systems on.
PROBABLE CAUSE
The PGM-FI software is slow to respond to engine load because of varying electrical loads.
CORRECTIVE ACTION
Update the PGM-FI software with the HDS.
SOFTWARE INFORMATION
HDS Software Version: 2.020.018 or later.
Control Module (CM) Update:
Database Update 29-NOV-2009 or later.
NOTE:
To avoid an incorrect repair that would not be covered under warranty, use the software version listed above or a later version.

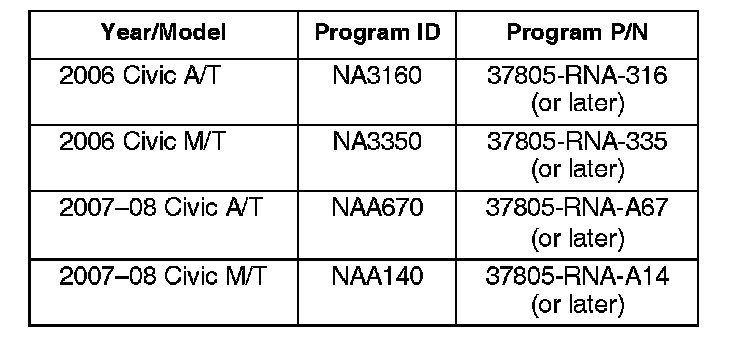

The updated PGM-FI software program IDs and P/Ns are shown below. If the HDS is loaded with the latest software, and it displays No Update Needed during the update, the software for this service bulletin is already installed.
WARRANTY CLAIM INFORMATION
The normal warranty applies.
Operation Number: 125517
*Flat Rate Time: 0.2 hour*
Failed Part: P/N 37820-RNA-325
Defect Code: 03214
Symptom Code: 03203
Skill Level: Repair Technician
DIAGNOSIS
Does the customer complain of an intermittent engine vibration when coming to or at a stop?
NOTE:
The vibration is not constant and occurs after an electrical load is applied (operating headlights, power windows, rear defroster, moonroof, etc.).
Yes - Go to REPAIR PROCEDURE.
No - This service bulletin does not apply. Continue with normal troubleshooting.
NOTE:
The software update improves, but does not completely eliminate, the intermittent engine vibration.
REPAIR PROCEDURE
Update the PGM-FI software with the HDS. Refer to Service Bulletin 01-023, Updating Control Units/Modules.
