Power Steering Pressure Switch
>>
Locations
Power Steering Pressure Switch: Locations
Idle Control System - Component Location Index:

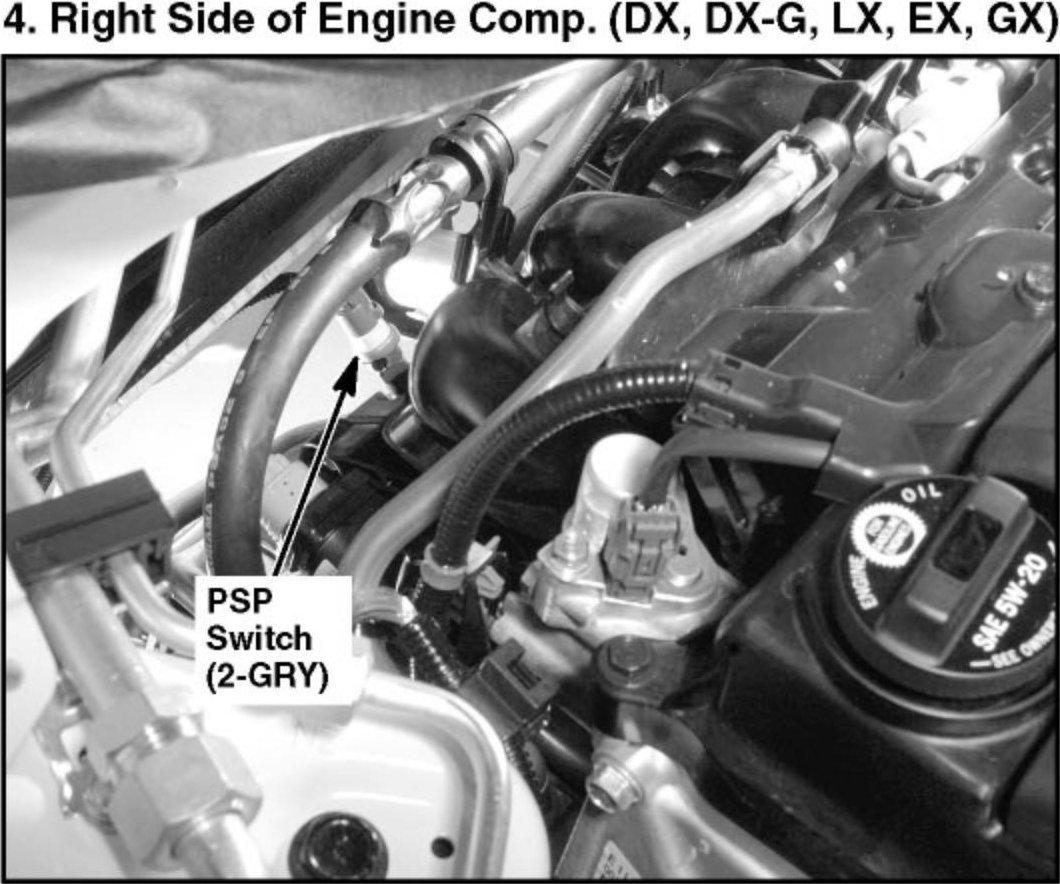

4. Right Side of Engine Comp. (DX, DX-G, LX, EX, GX):
