Circuit Diagrams

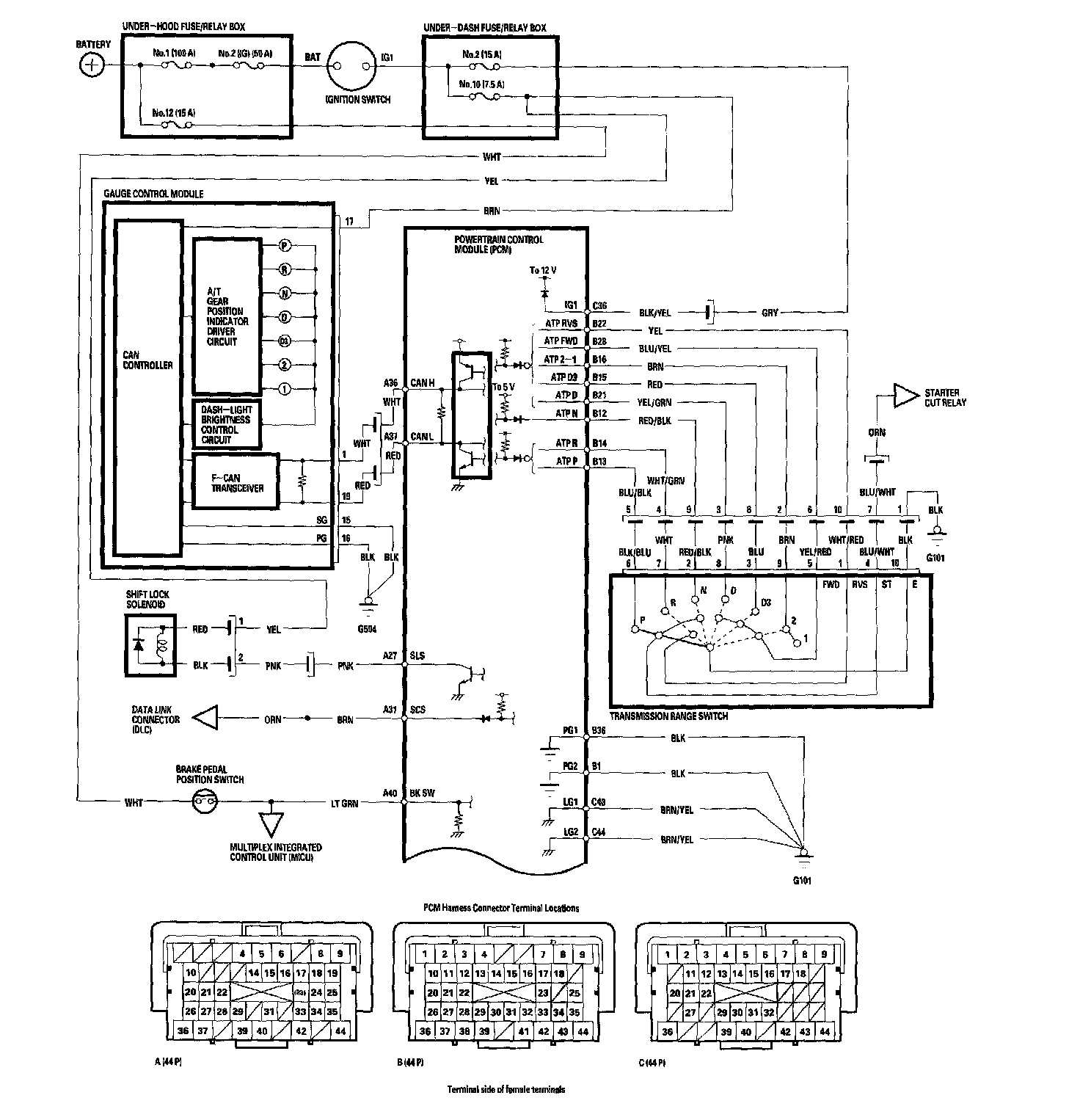

PCM A/T Control System Circuit Diagram (part 1):

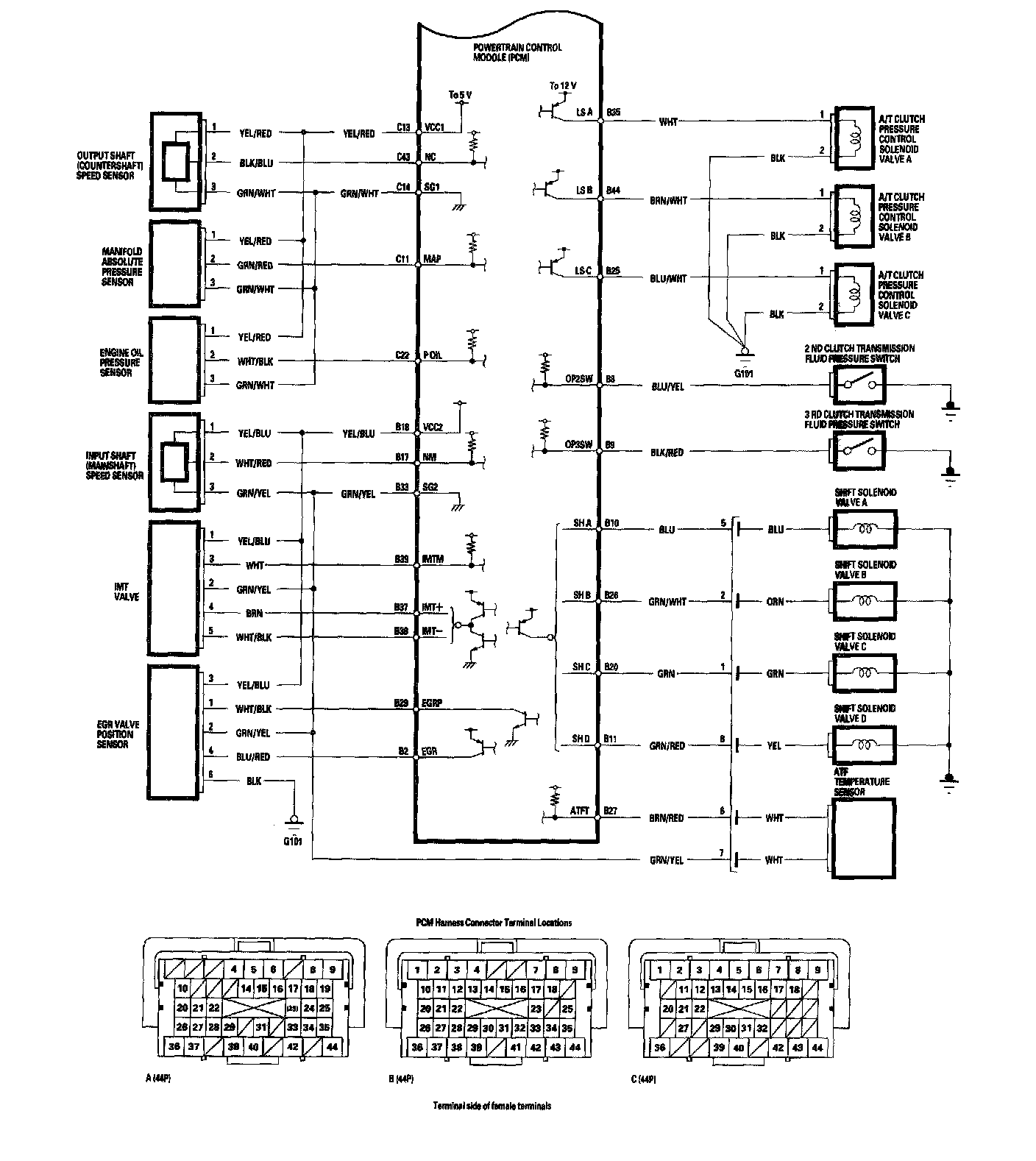

PCM A/T Control System Circuit Diagram (part 2):

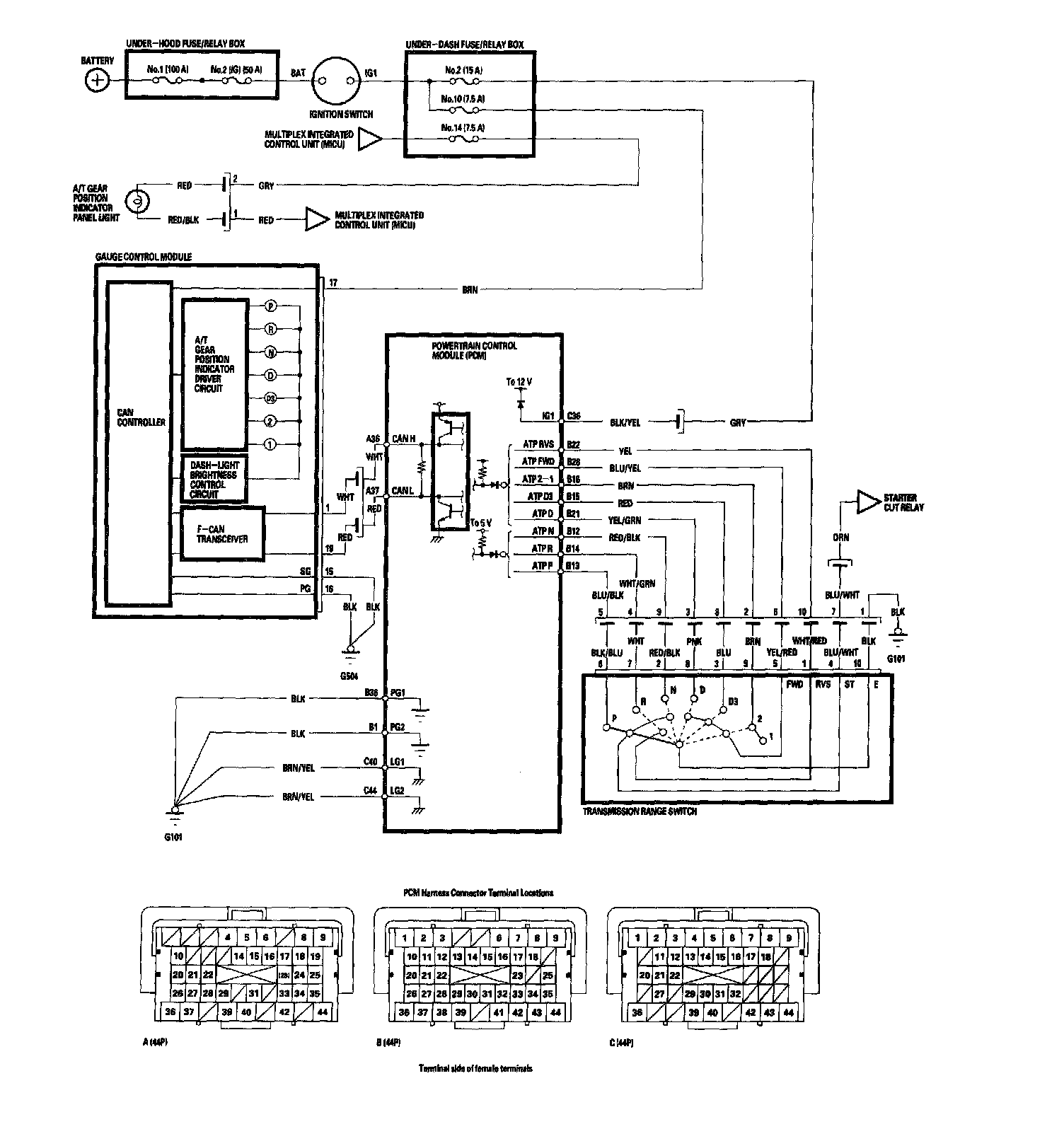

A/T Gear Position Indicator Circuit Diagram:
