Remote Switch: Testing and Inspection
Radio Remote Switch Test1. Remove the driver's airbag assembly.

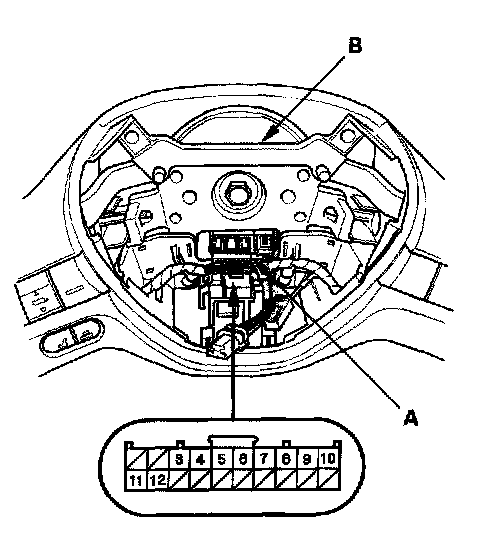

2. Remove the 20P connector (A) from the cable reel (B).
3. Measure the resistance between the No. 9 and No. 10 terminals in each switch position according to the table.
4. If the resistance is not as specified, replace the radio remote switch.
5. Use a diode tester between the terminals in each switch position according to the table.
6. If the diode test is bad, replace the switch.
