Safing Sensor
>>
Locations
Safing Sensor: Locations

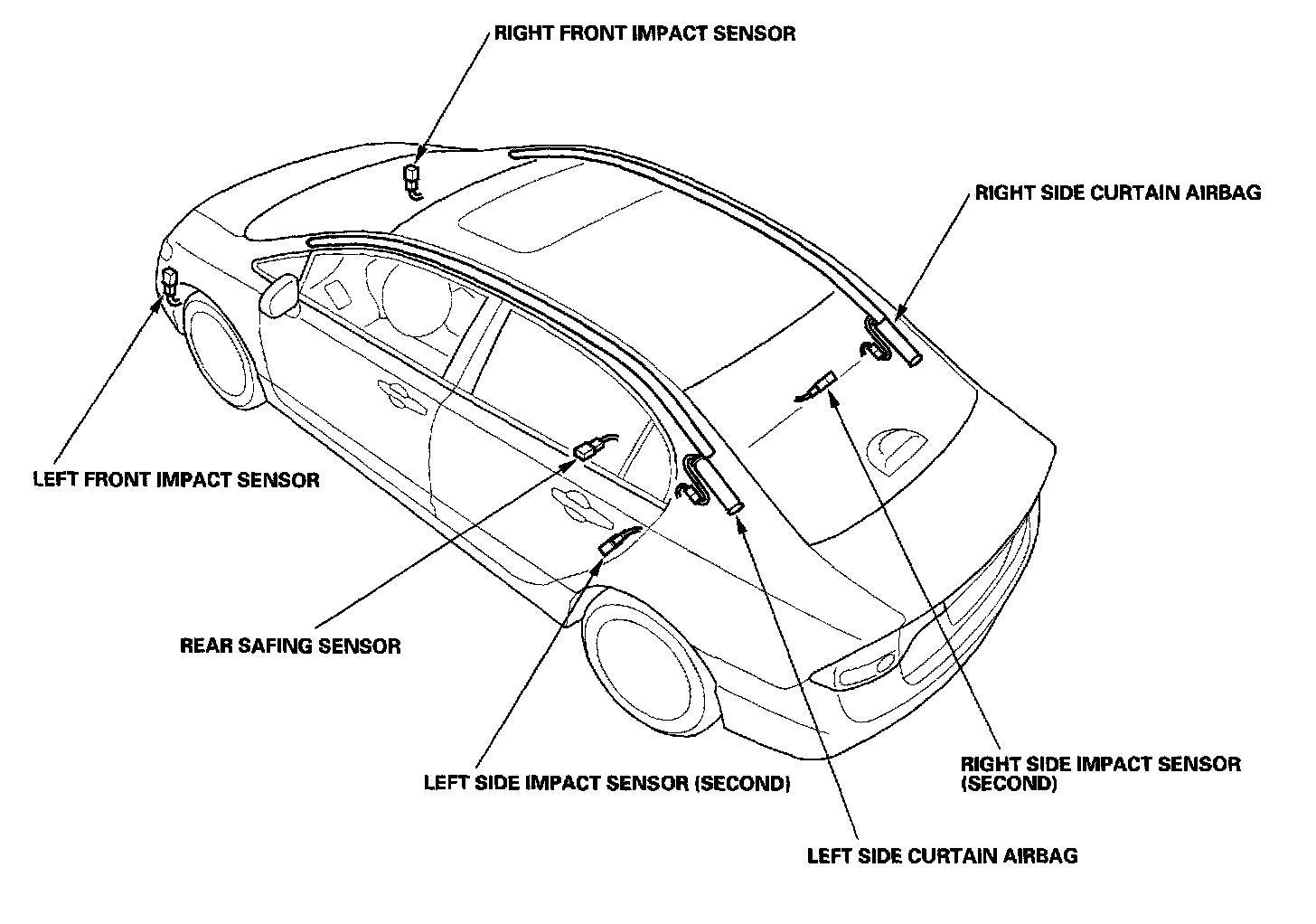

SRS - Component Location Index:

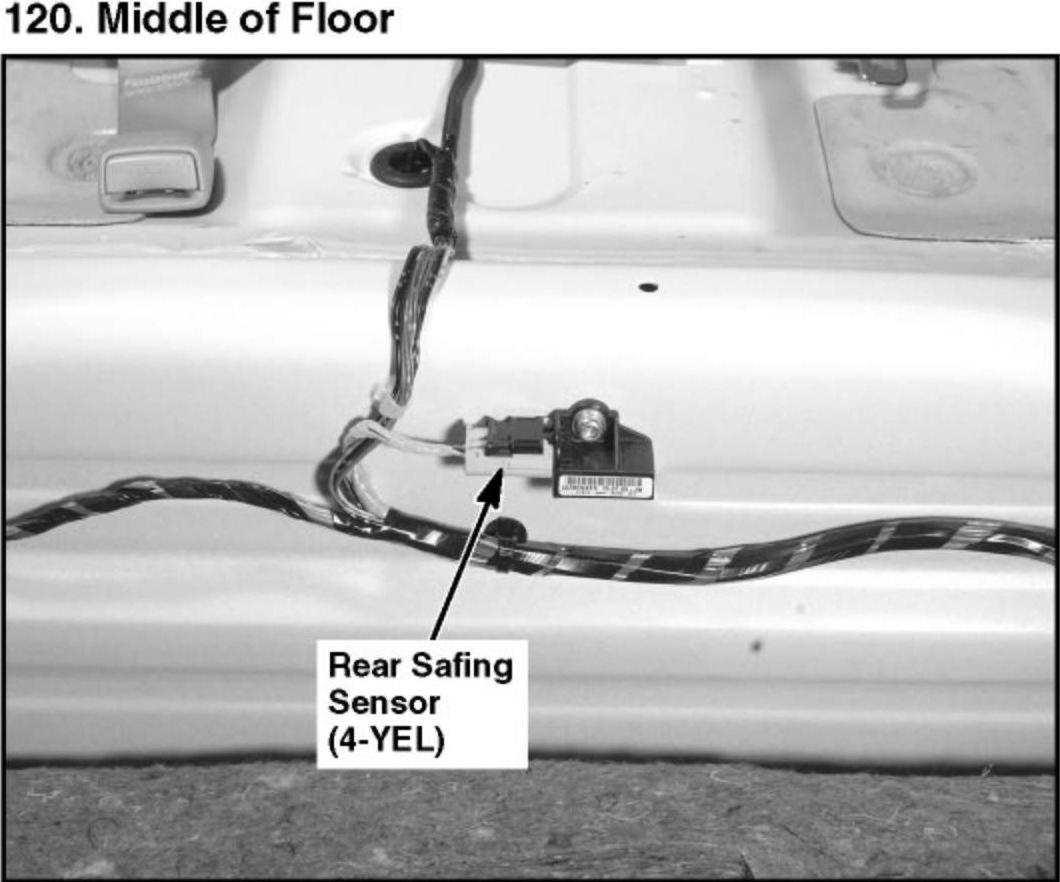

120. Middle of Floor:
