2. Change Lever Assembly Disassembly/Reassembly

Change Lever Assembly Disassembly/Reassembly

Change Lever Assembly:

Prior to reassembly, clean all the parts in solvent, dry them, and apply lubricant to any contact surface.

Special Tools Required
^ Attachment, 24x26 mm 07746-0010700
^ Driver 07749-0010000





1. Remove the breather cap (A), detent bolt (B), washer (C), spring (D), and steel ball (E). Remove the detent bolt (F).

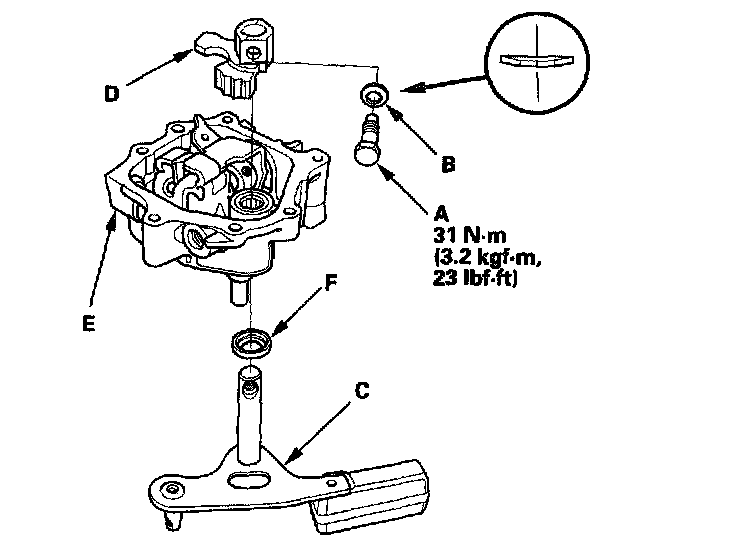

2. Remove the special bolt (A) and spring washer (B).
3. Remove the shift lever (C) and shift arm (D) from the shift arm cover (E).
4. Remove the oil seal (F).

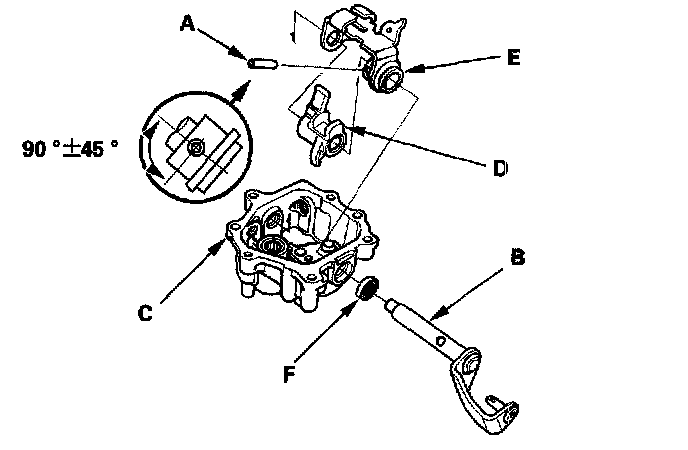

5. Remove the spring pin (A) from the select lever (B).

NOTE: Install the spring pin into the interlock with the groove of the spring pin at the angle shown.

6. Remove the select lever from the shift arm cover (C), then remove the shift piece (D) and the interlock (E).
7. Remove the oil seal (F).

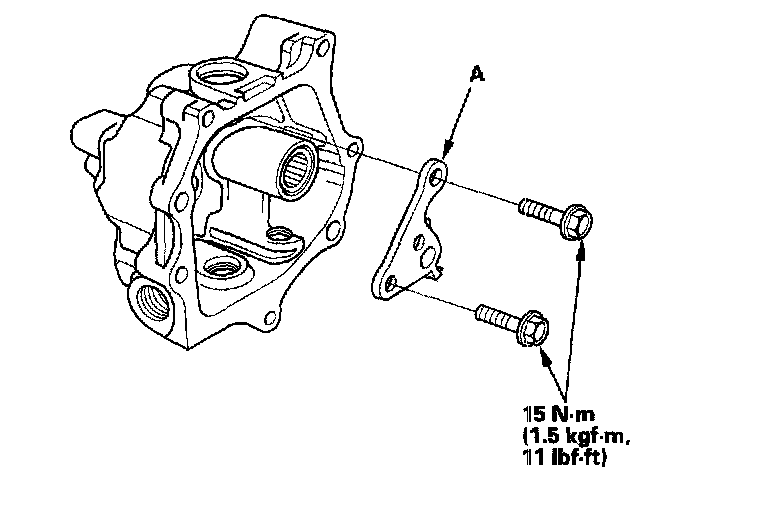

8. Remove the reverse lock cam (A).





9. Install in the reverse order of removal.

NOTE: Install the oil seal (A) using the special tools.
