Radio, Stereo, and Compact Disc: Description and Operation

System Description

Overview

The audio unit acts as the "processor" for all audio functions. Select audio functions from the audio unit, the audio remote (on steering wheel), or by using the navigation voice control system. The audio display provides the current audio status. For vehicles with navigation, additional audio information is available by touching the audio button on the Navigation Audio Screen. (See the owner's manual and the navigation user's guide for more details.)

The XM receiver passes its signal to the audio unit. In addition, it communicates with the audio unit via the GA-Net bus. Any open connections in the GA-Net bus circuit will cause audio and navigation functions to appear inoperative.

For vehicles with navigation, pressing the "open/close" switch on the navigation display panel allows access to the CD slot and PC card.

A security signal is daisy-chained between the audio and vehicle components for integration into the vehicle's security system.

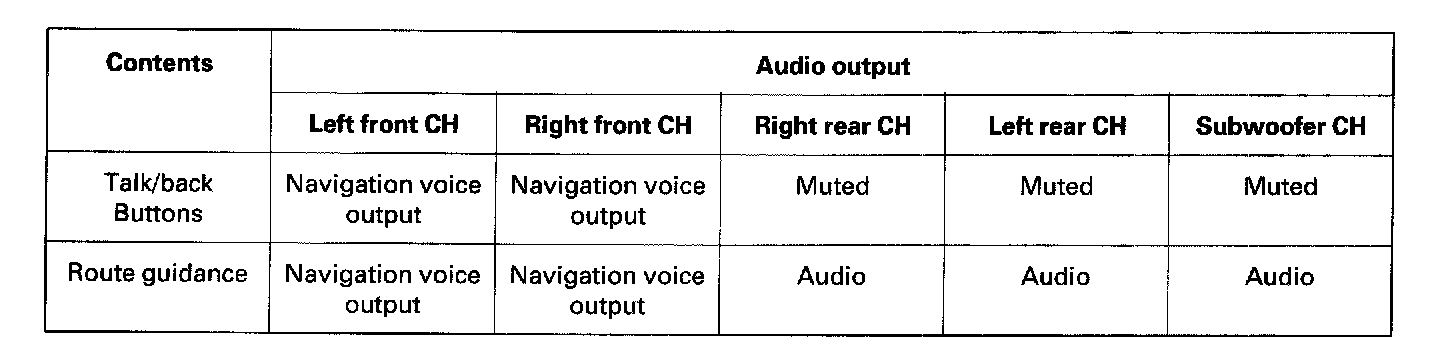

The navigation system allows voice control of the audio, XM, PC card, and CD player. Voice control commands are communicated on the GA-Net (audio unit). When using the talk/back button, the audio is muted on all speakers and you get navigation sound on the front channels. When using the navigation or route guidance (RG), the front speakers give the navigation sound and the rear speakers continue to play. For more information, see the navigation section. The outline of the interruption function is shown in this table.

GA-Net Bus Configuration

The GA-Net bus passes audio and navigation commands throughout the navigation and audio components. These commands include navigation touch screen and hard button signals, audio/XM selections by voice, and XM station and music title names. Because the entire bus is "daisy chained" between components (see diagram), any open or short in the GA-Net bus harness will cause any or all of these functions to become inoperative. Naturally the addition of any audio accessory must maintain the continuity of the GA-Net bus by installing the "Y" cable included with the accessory kit.
