Rear Suspension
Knuckle/Hub Bearing Unit ReplacementKnuckle/Hub Bearing Unit:
Hub Bearing Unit Replacement
1. Raise the rear of the vehicle, and support it with safety stands in the proper locations.
2. Remove the wheel nuts (A) and the rear wheel.
3. Remove the brake hose bracket mounting bolt (A) from the knuckle.
4. Remove the brake caliper bracket mounting bolts (B), and remove the caliper assembly (C) from the knuckle. To prevent damage to the caliper assembly or brake hose, use a short piece of wire to hang the caliper assembly from the undercarriage. Do not twist the brake hose excessively.
5. Remove the two washers (A).
6. Remove the 6 mm brake disc retaining screws (A).
7. Remove the brake disc (B) from the hub bearing unit.
NOTE: If the brake disc is stuck on the hub bearing unit, screw two 8 x 1.25 mm bolts (C) into the brake disc to push it away from the hub bearing unit. Turn each bolt 90 degrees at a time to prevent cocking the brake disc.
8. Remove the hub bearing unit (A) and the O-ring (B).
9. Check the rear hub for damage and cracks.
10. Install the hub bearing unit in the reverse order of removal, and note these items:
^ Use a new O-ring during reassembly.
^ Tighten all mounting hardware to the specified torque values.
^ Before installing the brake disc, Clean the matching surface of the hub bearing unit and inside of the brake disc.
^ Before installing the wheel, clean the mating surface of the brake disc and the inside of the wheel.
^ Check the wheel alignment, and adjust it if necessary.
Knuckle Replacement
1. Remove the hub bearing unit.
2. Remove the splash guard (A).
3. Remove the wheel sensor (A), the O-ring (B), and the sensor harness (C) from the knuckle (D). Do not disconnect the wheel sensor connector.
NOTE: Use a new O-ring during reassembly.
4. Place a floor jack under the trailing arm to support it.
NOTE: Do not place the jack against the plate section of the lower arm. Be careful not to damage any suspension components.

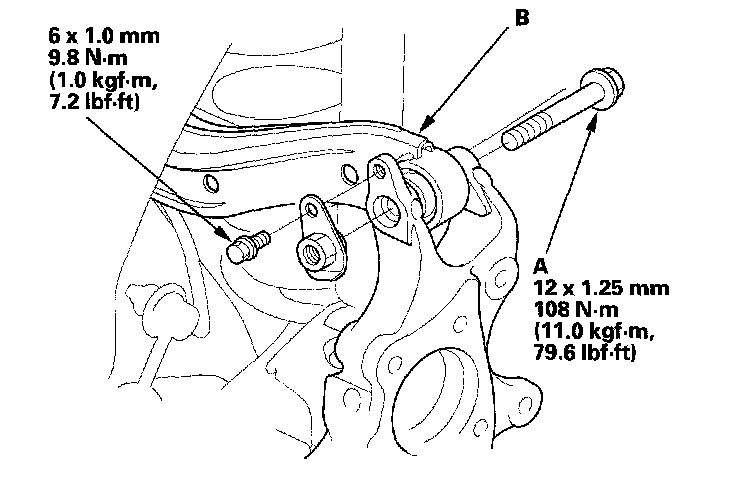

5. Remove the flange bolt (A), and disconnect the upper arm (B) from the knuckle.
NOTE: During installation use a new flange bolt.
6. Mark the cam positions of the adjusting bolt (A) and the adjusting cam (B), then remove the self-locking nut (C), the adjusting cam, and the adjusting bolt. Discard the self-locking nut.
NOTE: During installation use a new adjusting bolt and a new self-locking nut.
7. Remove the flange bolt (D).
NOTE: During installation use a new flange bolt.
8. Install the knuckle in the reverse order of removal, and note these items:
^ First install all the suspension components, and lightly tighten the bolts and nuts, then place a floor jack under the lower arm, and raise the suspension to load it with the vehicle's weight before fully tightening the bolts and nuts to the specified torque values.
^ Align the cam positions of the adjusting bolt and the adjusting cam with the marked positions when tightening.
^ Use a new self-locking nut during reassembly.
^ Before installing the brake disc, clean the mating surface of the hub bearing unit and the inside of the brake disc.
^ Before installing the wheel, clean the mating surface of the brake disc and the inside of the wheel.
^ Check the wheel alignment, and adjust it if necessary.
