Drive Belt: Service and Repair

Drive Belt Replacement

Special Tools Required
Belt tension release tool
Snap-on YA9317 or equivalent, commercially available

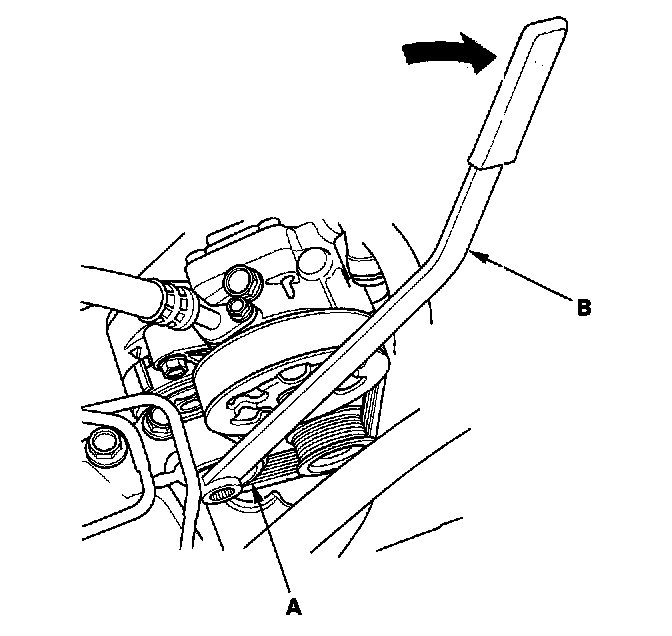

1. Move the auto-tensioner (A) with the be It tension release tool (B) in the direction shown to relieve tension from the drive belt, and remove the drive belt.
2. Install the new belt in the reverse order of removal.

NOTE: For belt routing, see the charging system component location index.
