Front Grille Replacement

Front Grille Replacement

Grille Replacement

NOTE: Take care not to scratch the front bumper and body.

1. Remove the front grille cover.

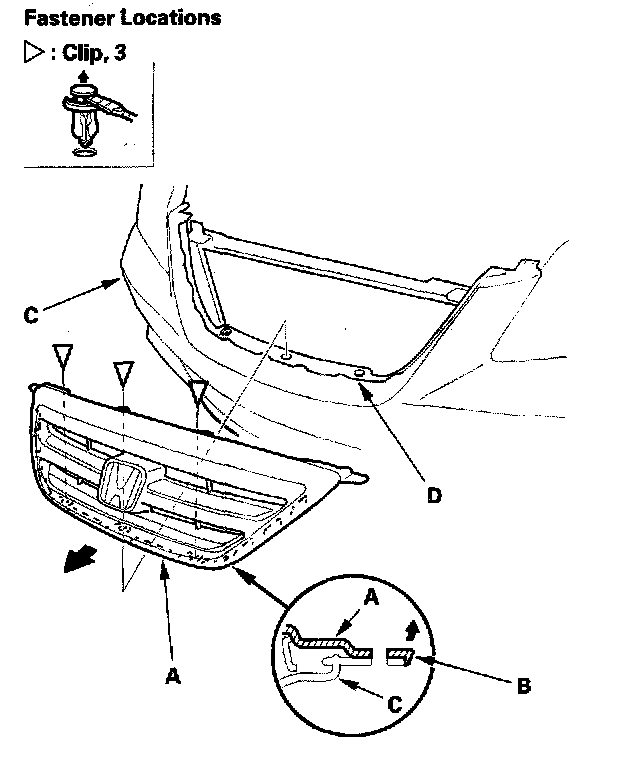

2. Remove the front grille (A).
1. Remove the clips.
2. Release the hooks (B) of the grille from the front bumper (C).
3. Pull the grille away to release it from the groove (D) of the bumper.

3. Install the grille in the reverse order of removal, and note these items:
- Check the clips for damage or stress-whitening, and replace them with new one.
- Push the clips and hooks into place securely.

4. Reinstall the front grille cover.

Molding Replacement

NOTE: Take care not to scratch the front grille.

1. Remove the front grille.

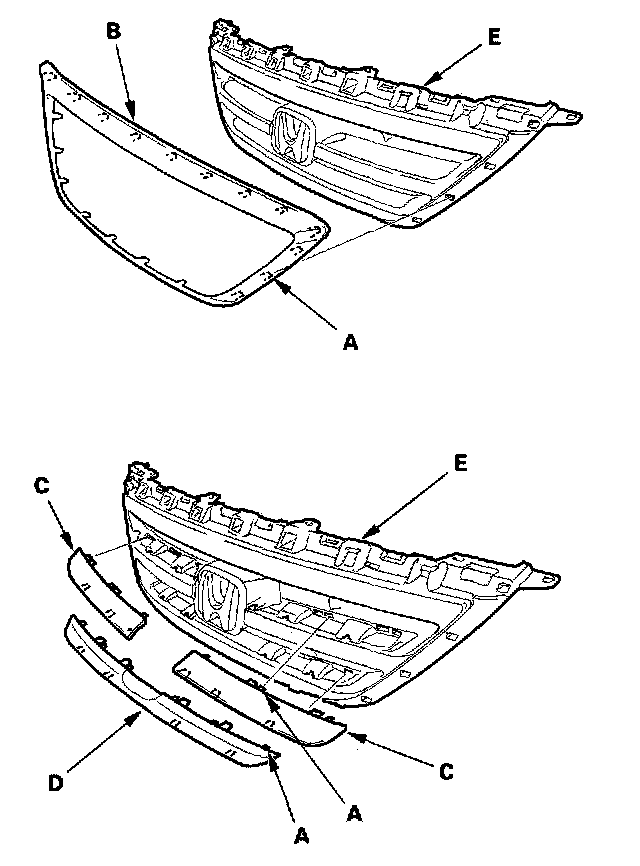

2. Release the hooks (A), then remove the front grille molding (B), the front grille upper moldings (C), and the front grille lower molding (D) from the front grille base (E).
3. Install the moldings in the reverse order of removal, and push the hooks into place securely.
4. Reinstall the front grille.
