393
View 376-400: 393

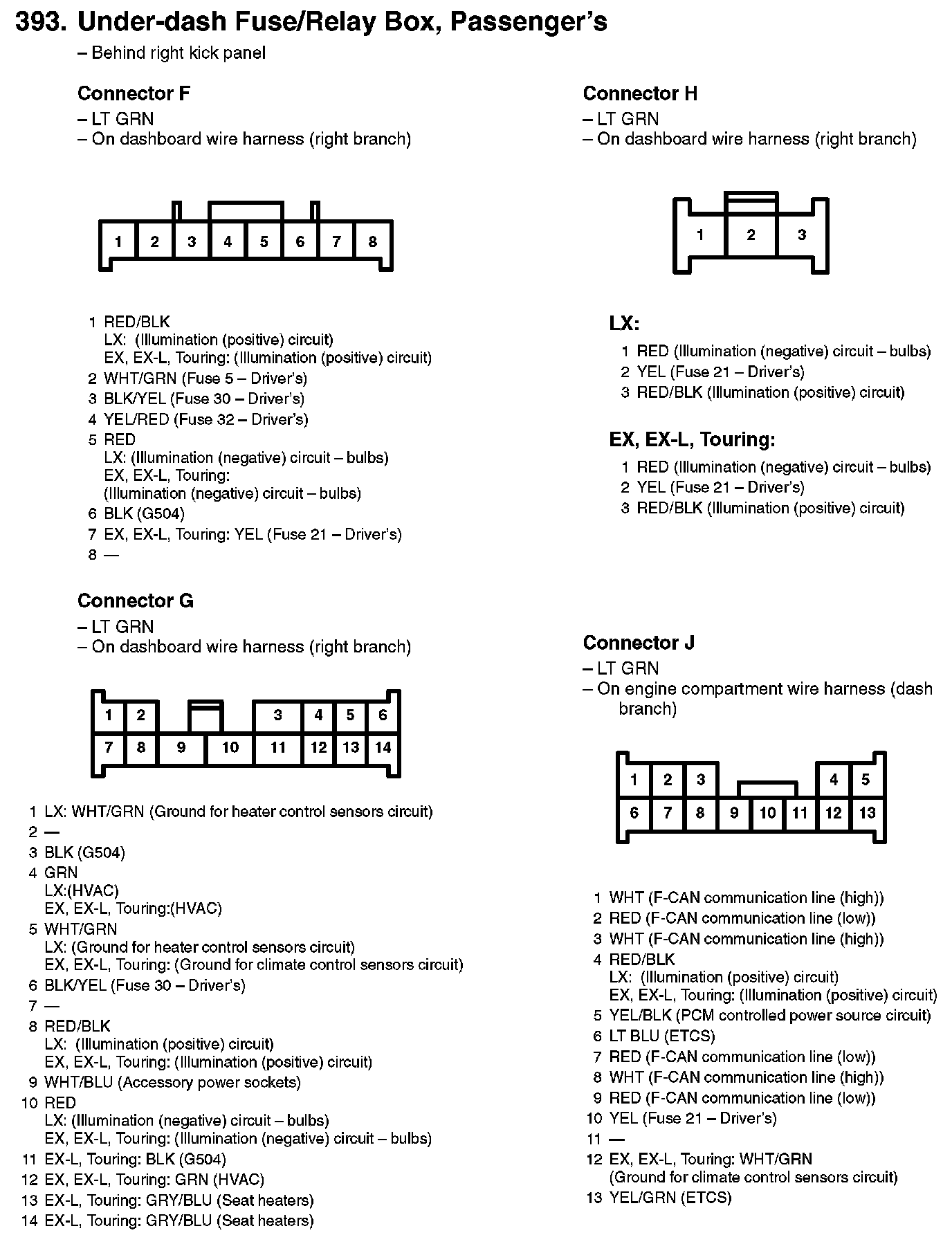

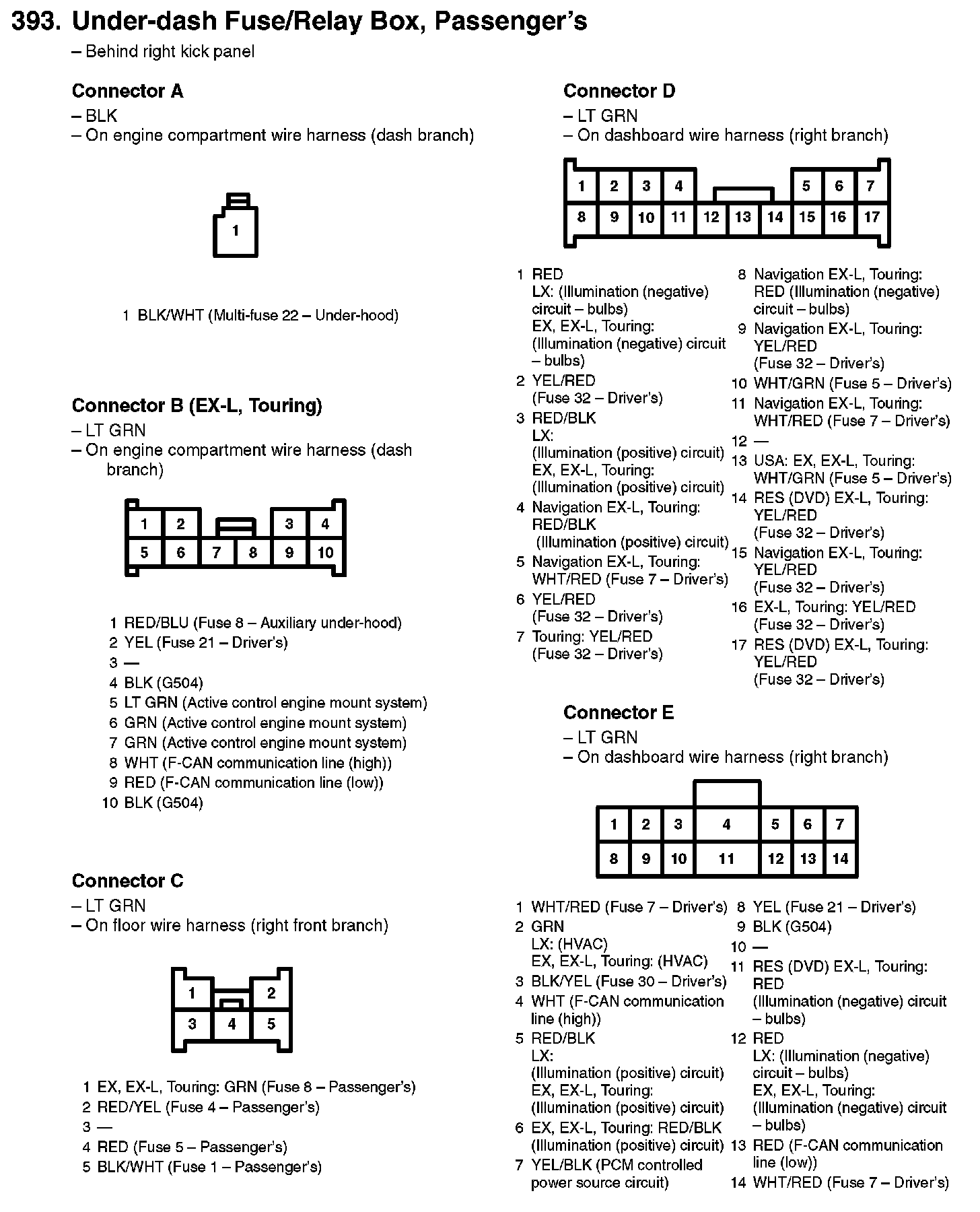

393. Under-dash Fuse/Relay Box, Passenger's:
393. Under-dash Fuse/Relay Box, Passenger's:
