Home >> Honda >> 2006 >> Odyssey V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 251-275 >> 253

Views 251-275: 253

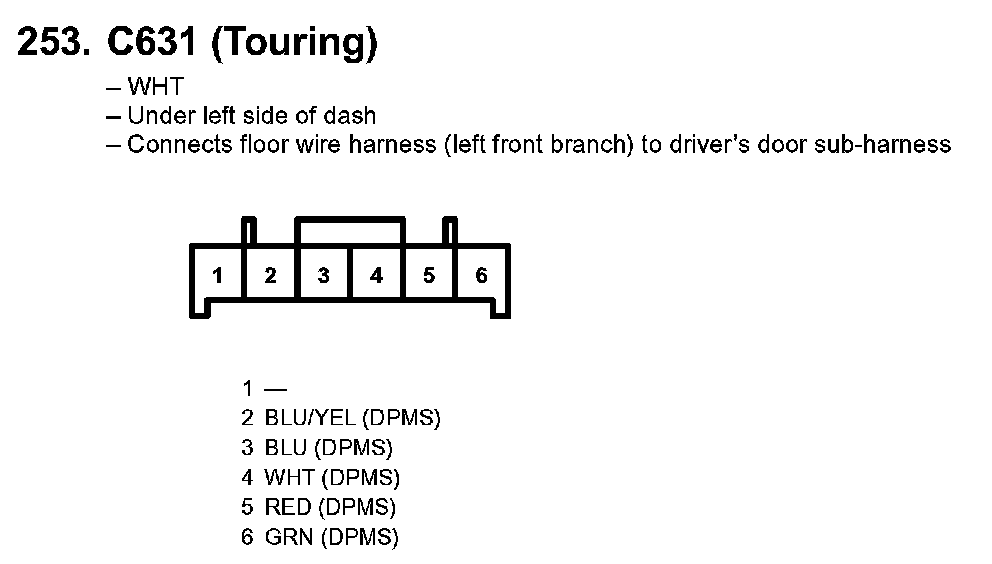

253. C631 (Touring):
