Home >> Honda >> 2006 >> Odyssey V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 276-300 >> 296

Views 276-300: 296

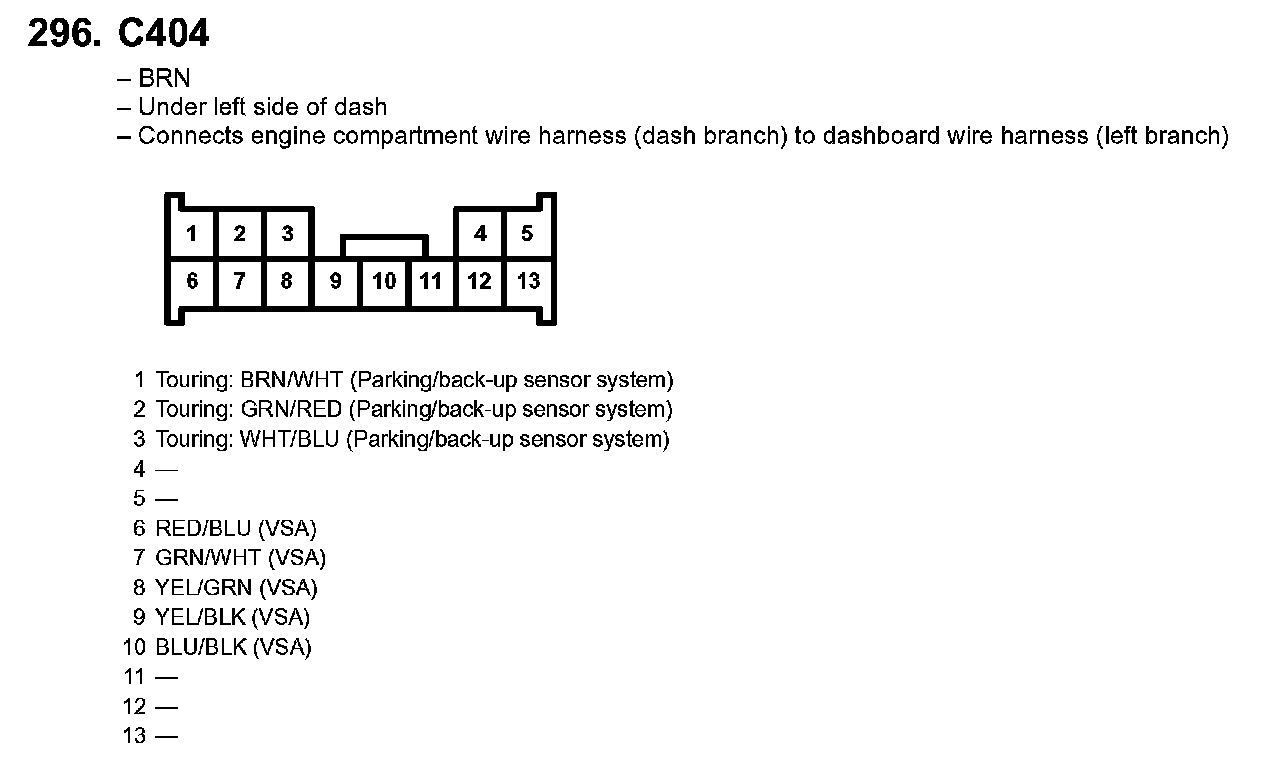

296. C404:
