Home >> Honda >> 2006 >> Odyssey V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 301-325 >> 308

Views 301-325: 308

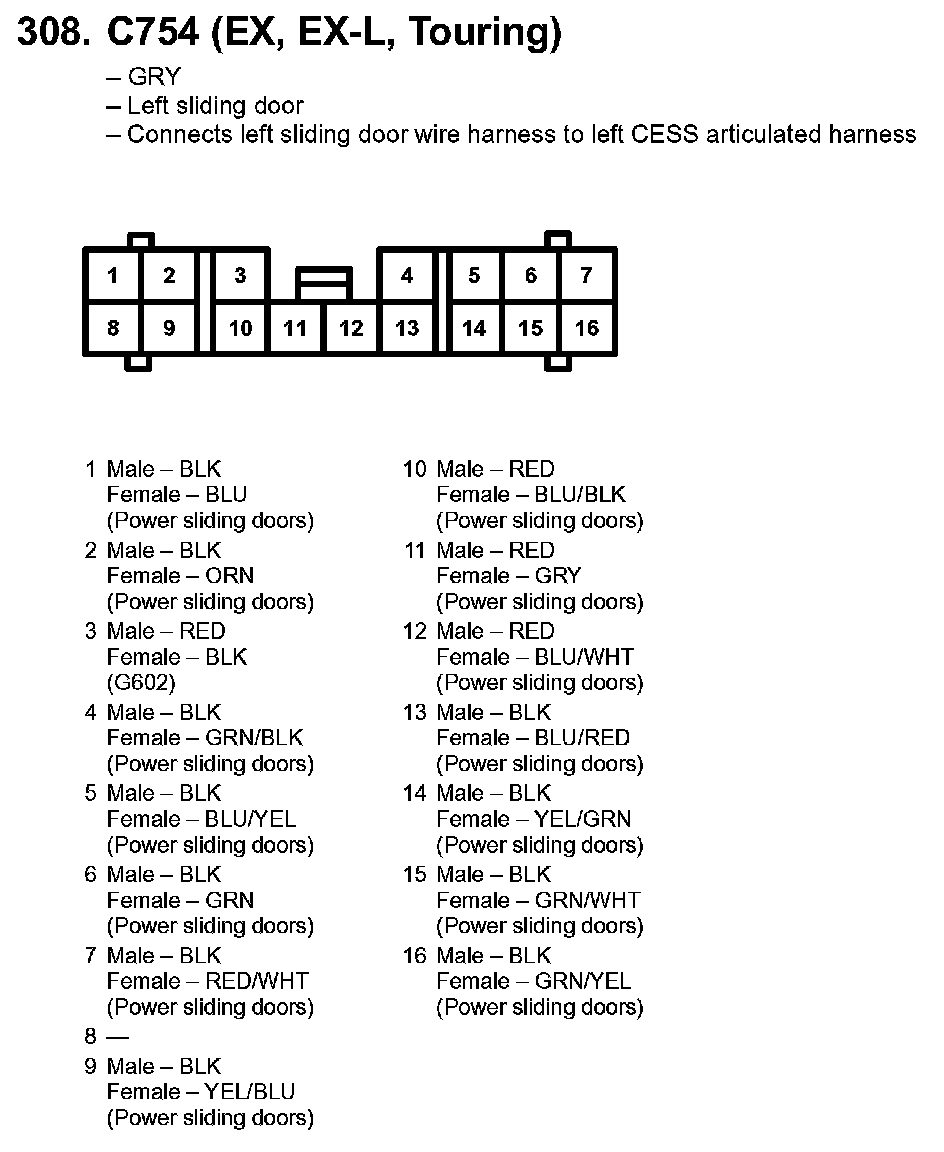

308. C754 (EX, EX-L, Touring):
