Home >> Honda >> 2006 >> Odyssey V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 301-325 >> 323

Views 301-325: 323

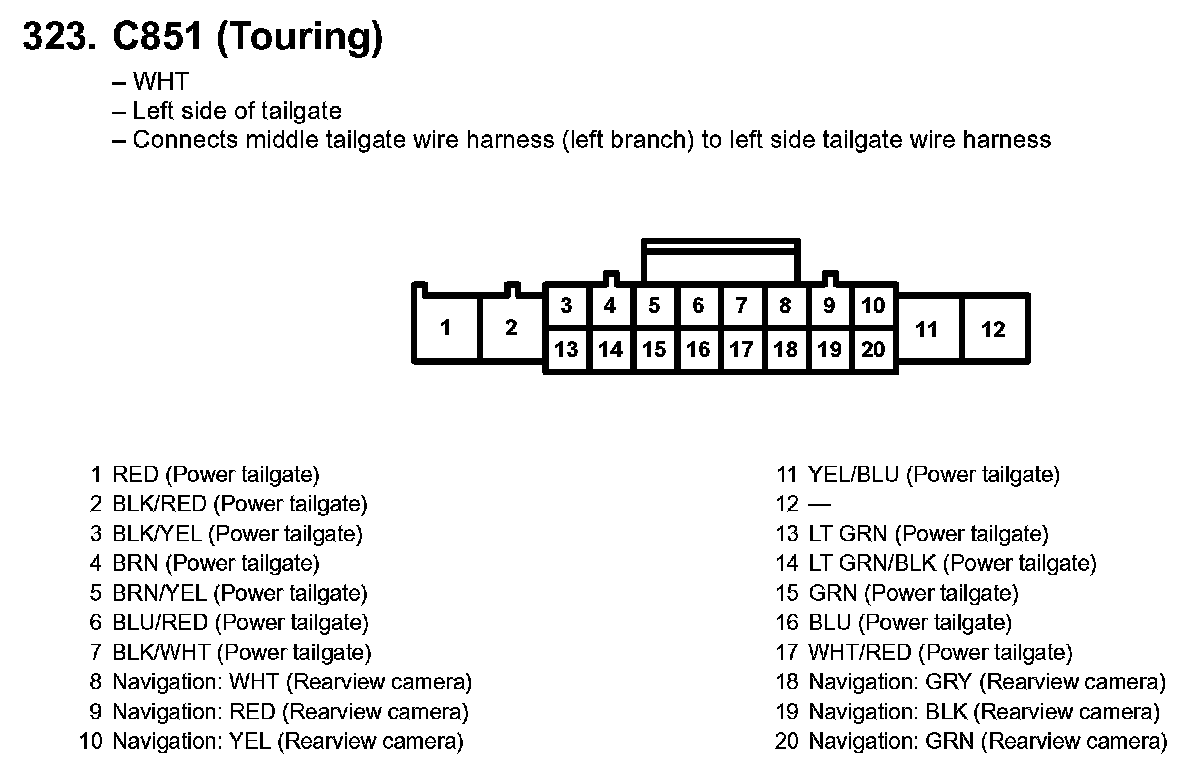

323. C851 (Touring):
