Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2006
>>
Odyssey V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>
Views 376-398
>>
390
Views 376-398: 390

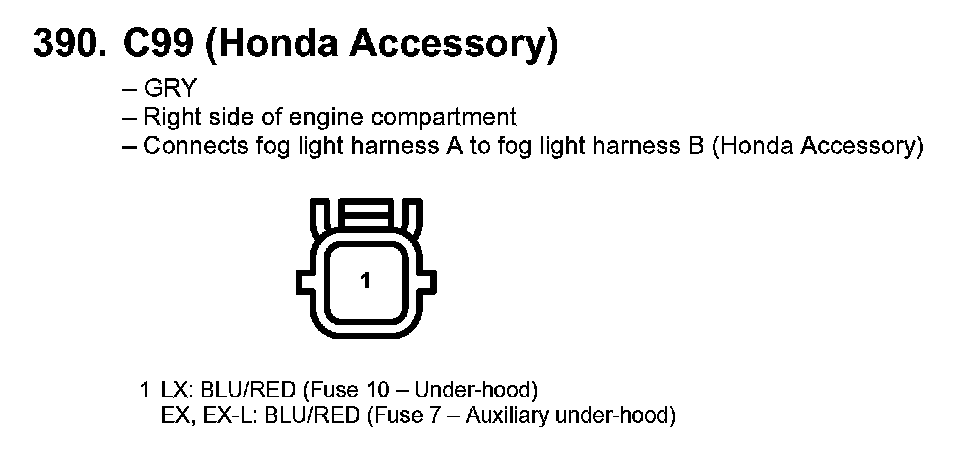

390. C99 (Honda Accessory):
