Entertainment Systems

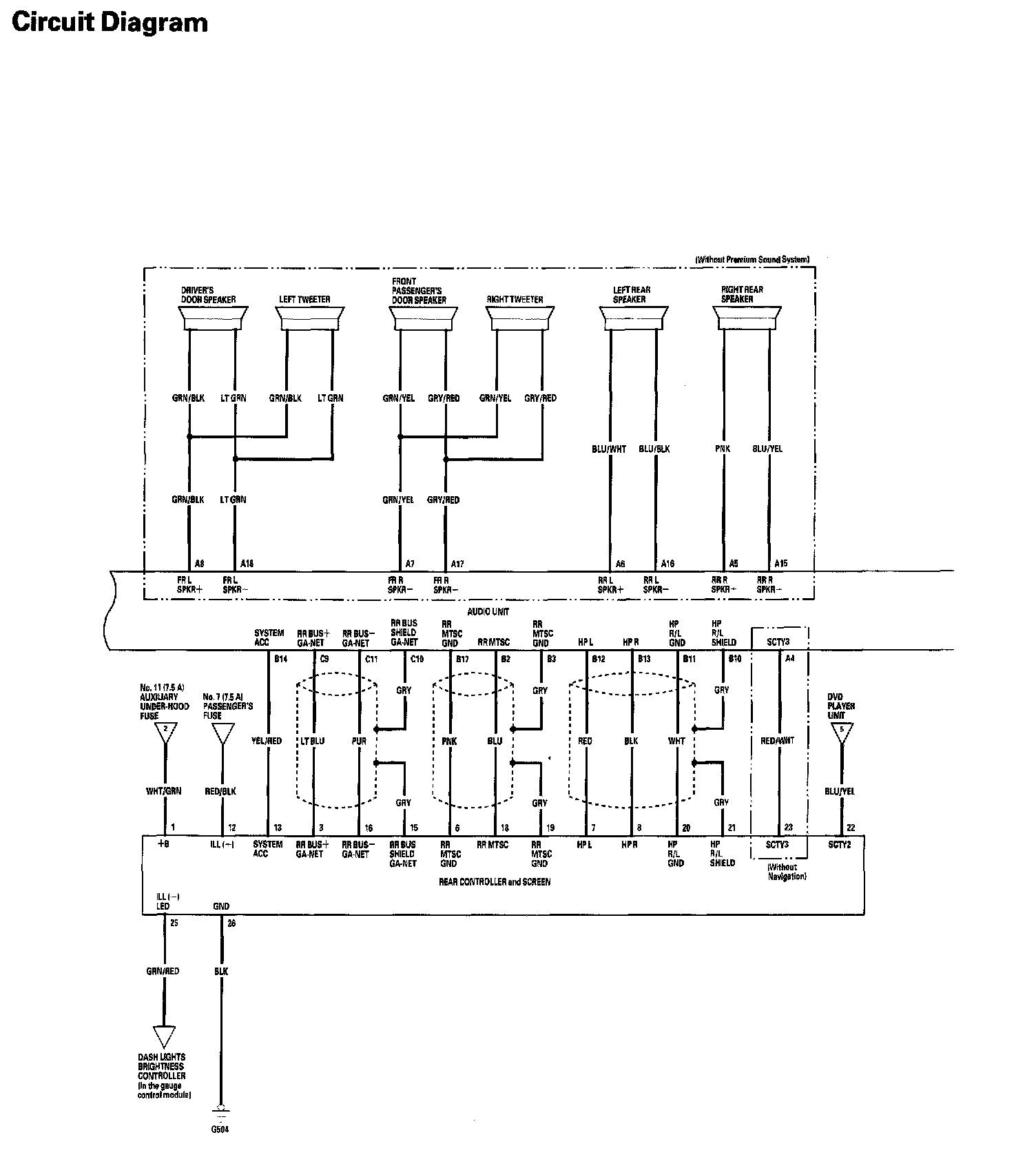

Rear Entertainment System - Circuit Diagram Part 1:

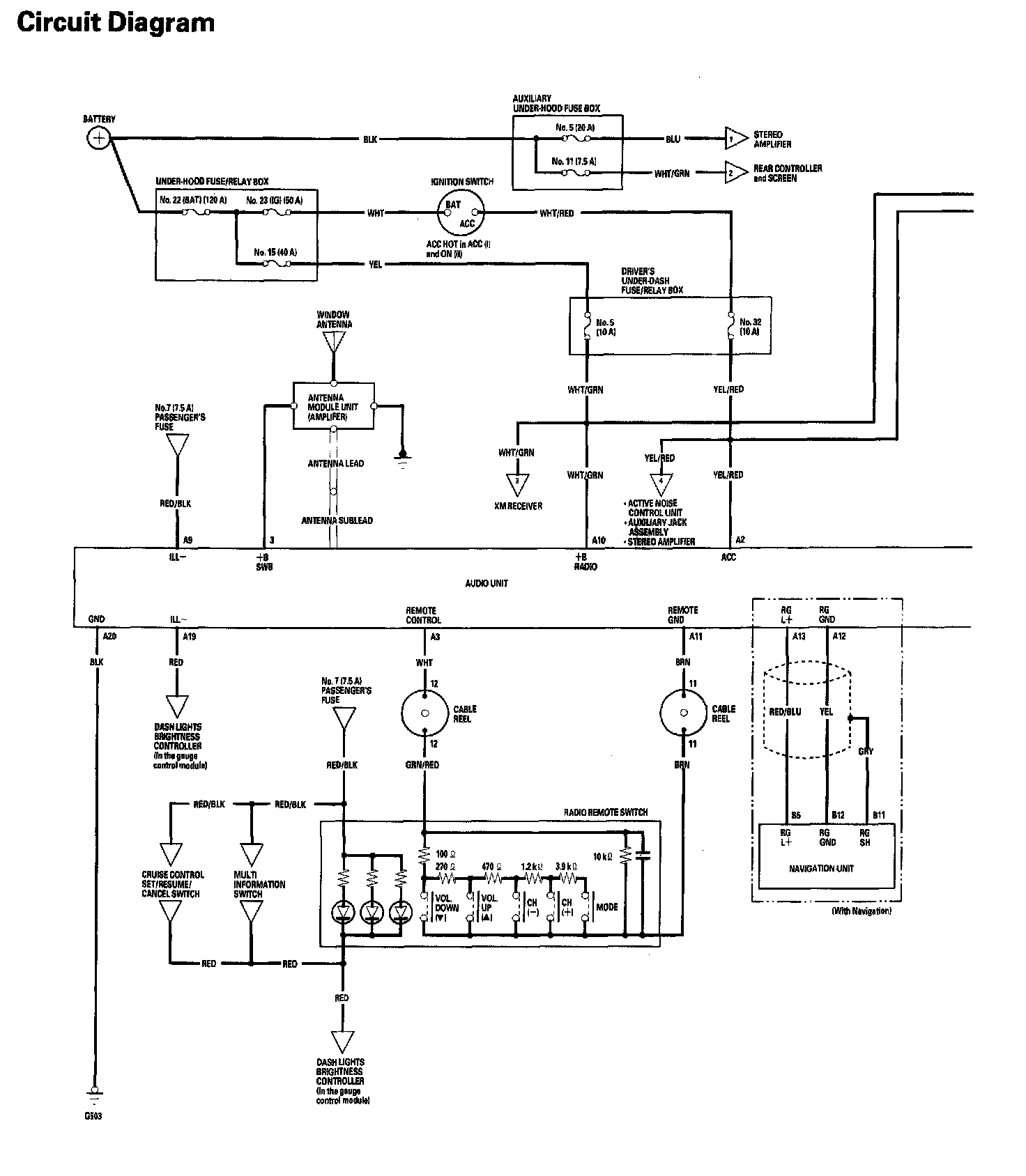

Rear Entertainment System - Circuit Diagram Part 2:

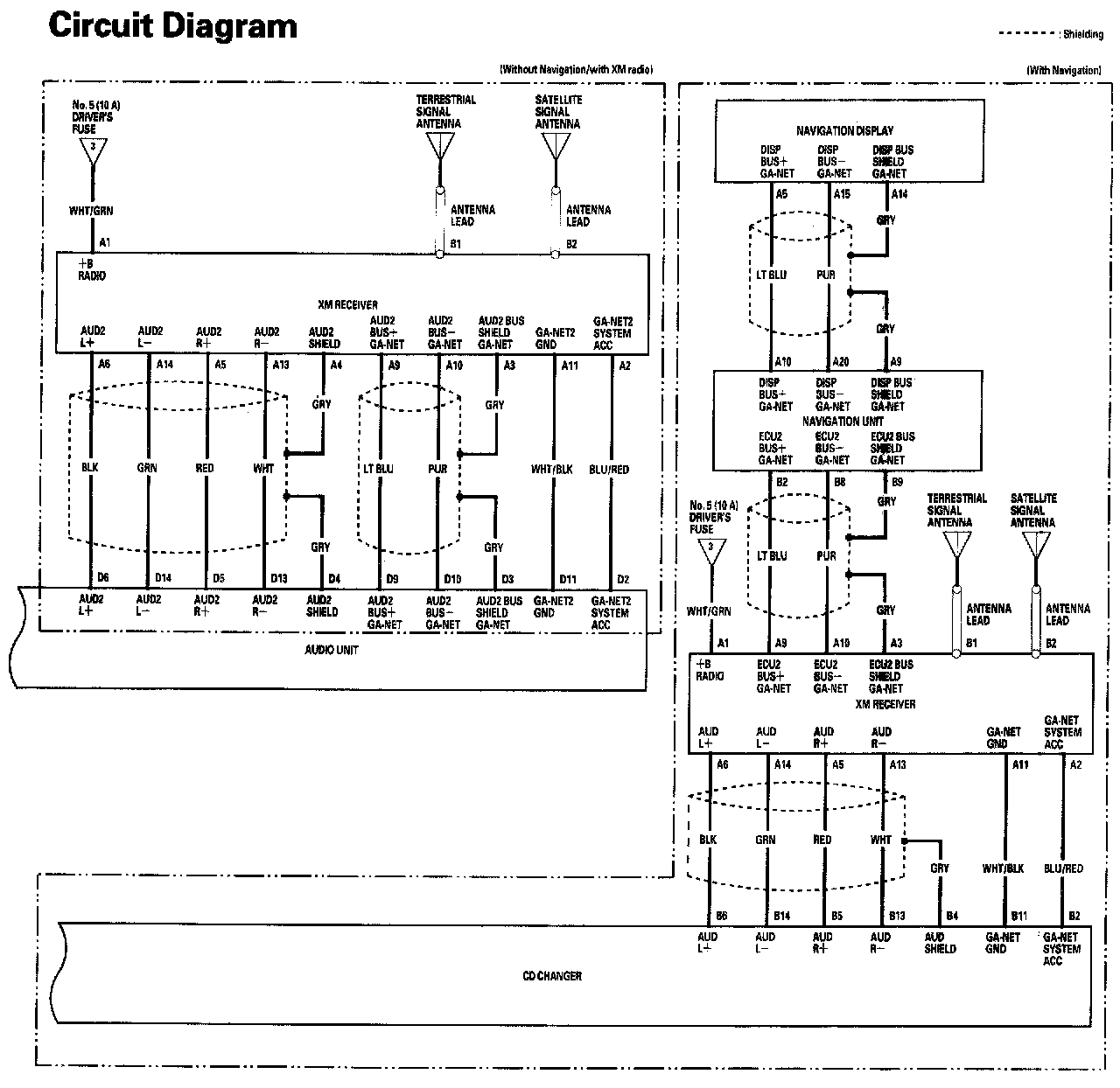

Rear Entertainment System - Circuit Diagram Part 3:

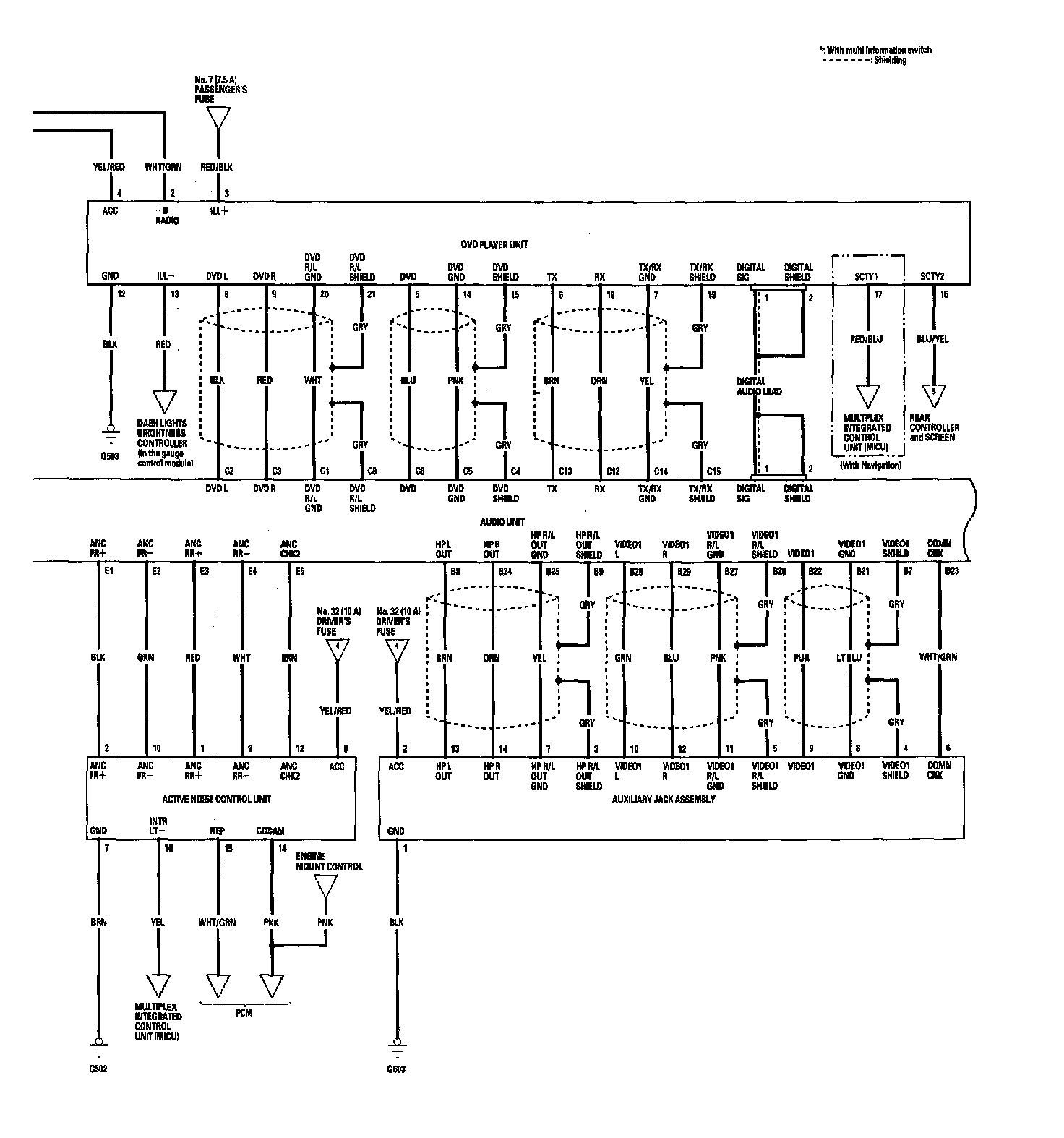

Rear Entertainment System - Circuit Diagram Part 4:

Rear Entertainment System - Circuit Diagram Part 5:
