Keyless/Power Door Locks/Security System Circuit Diagram
Keyless/Power Door Locks/Security System Circuit Diagram

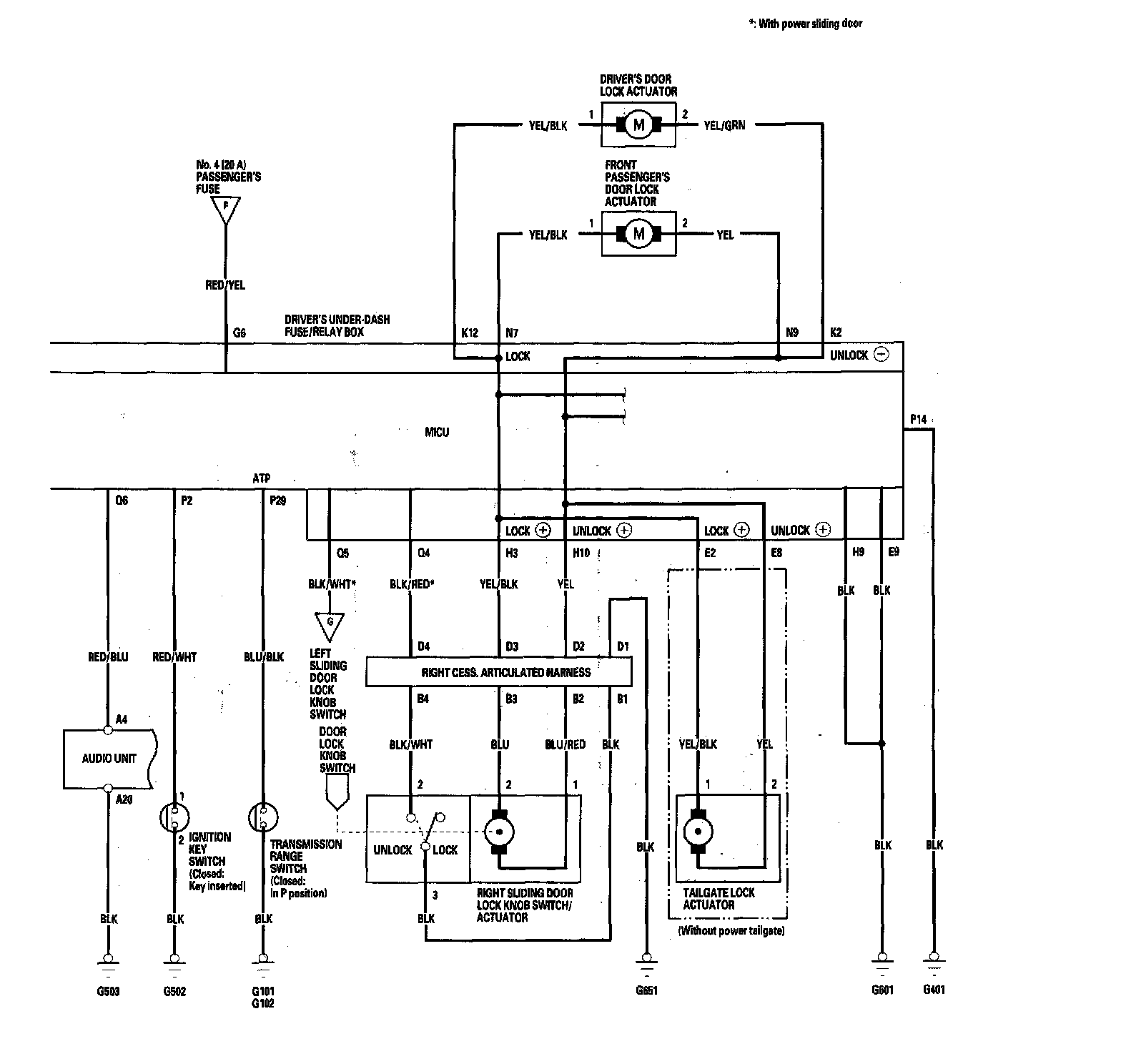

Keyless/Power Door Locks/Security System - Circuit Diagram Part 4:

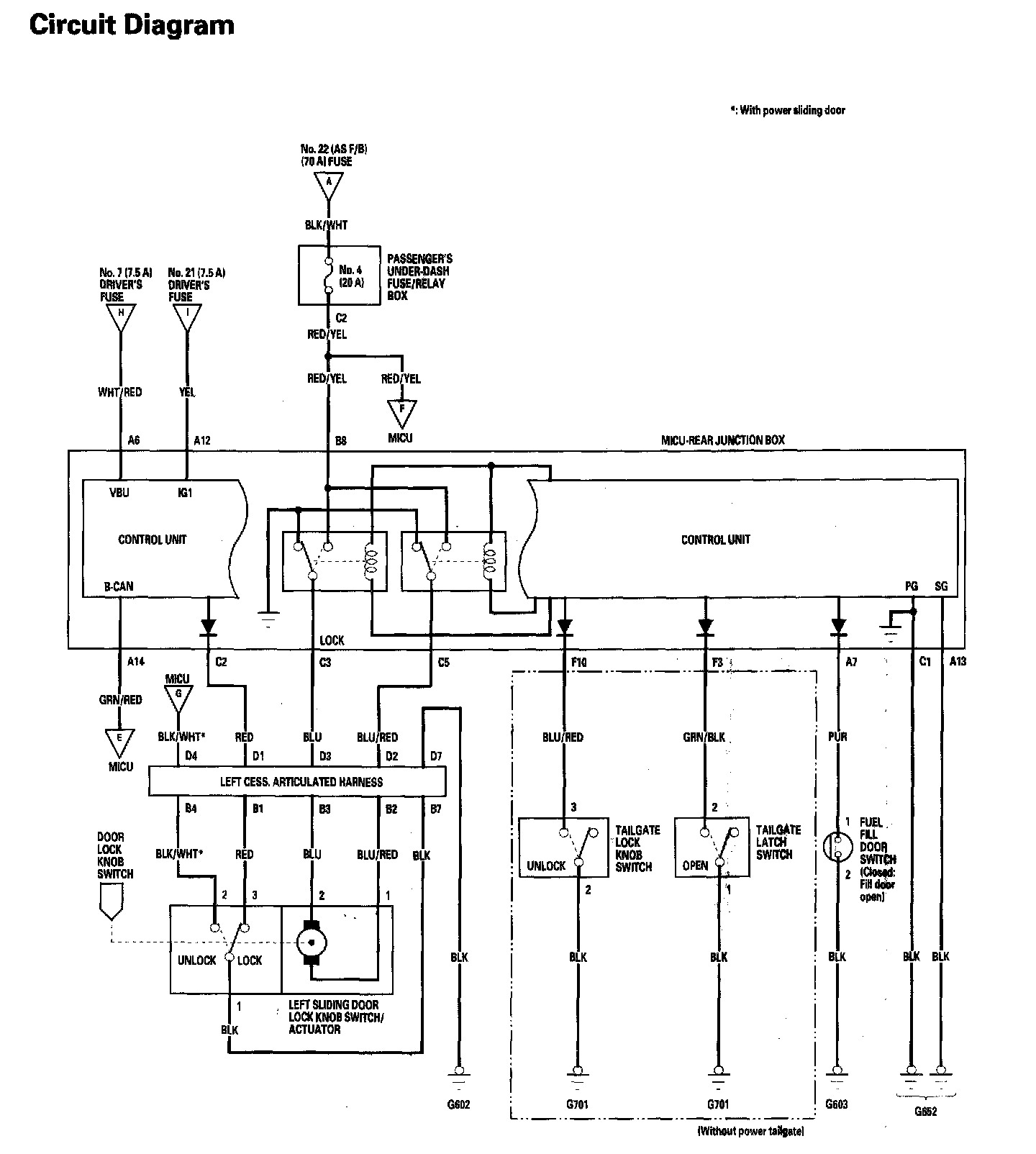

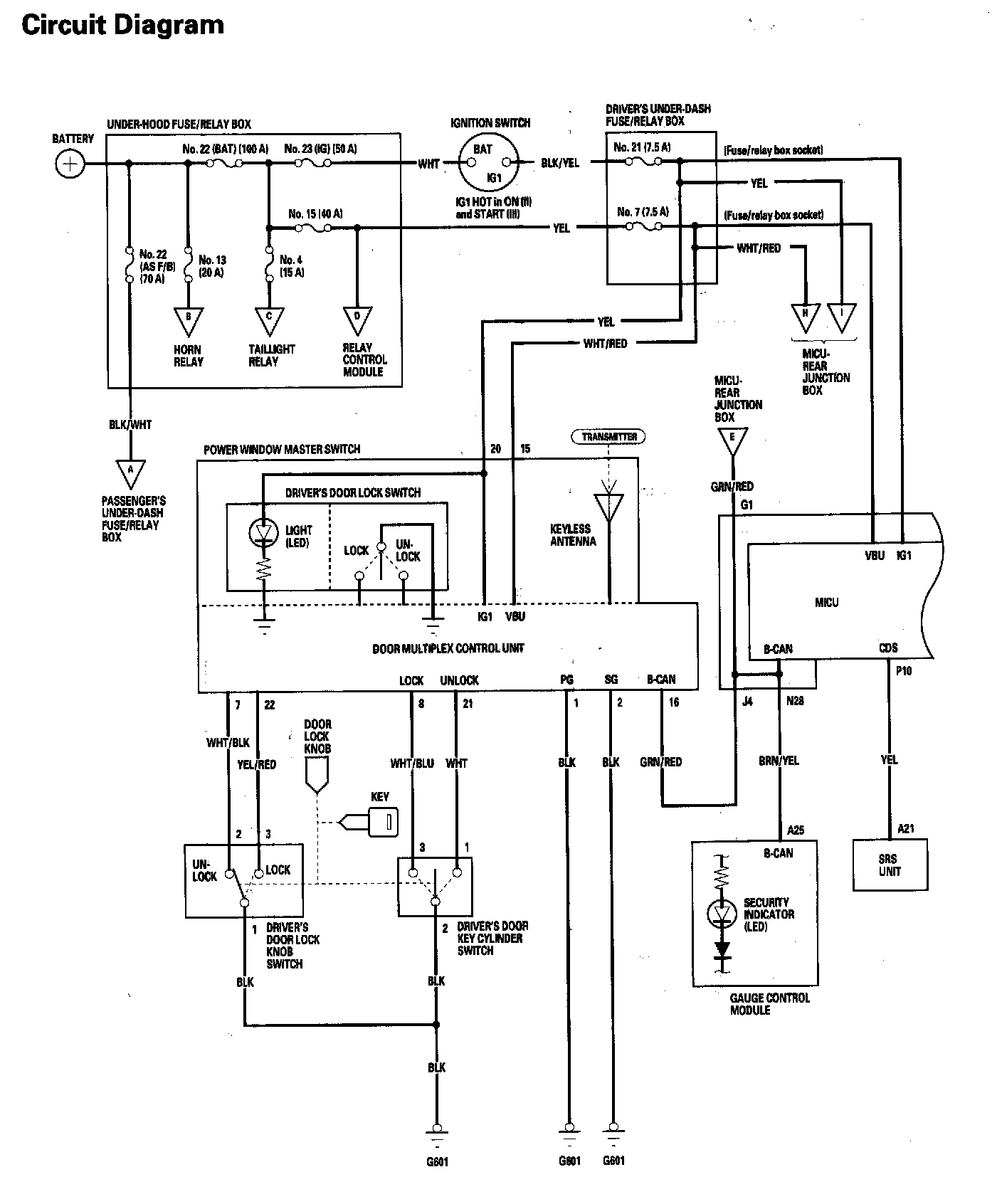

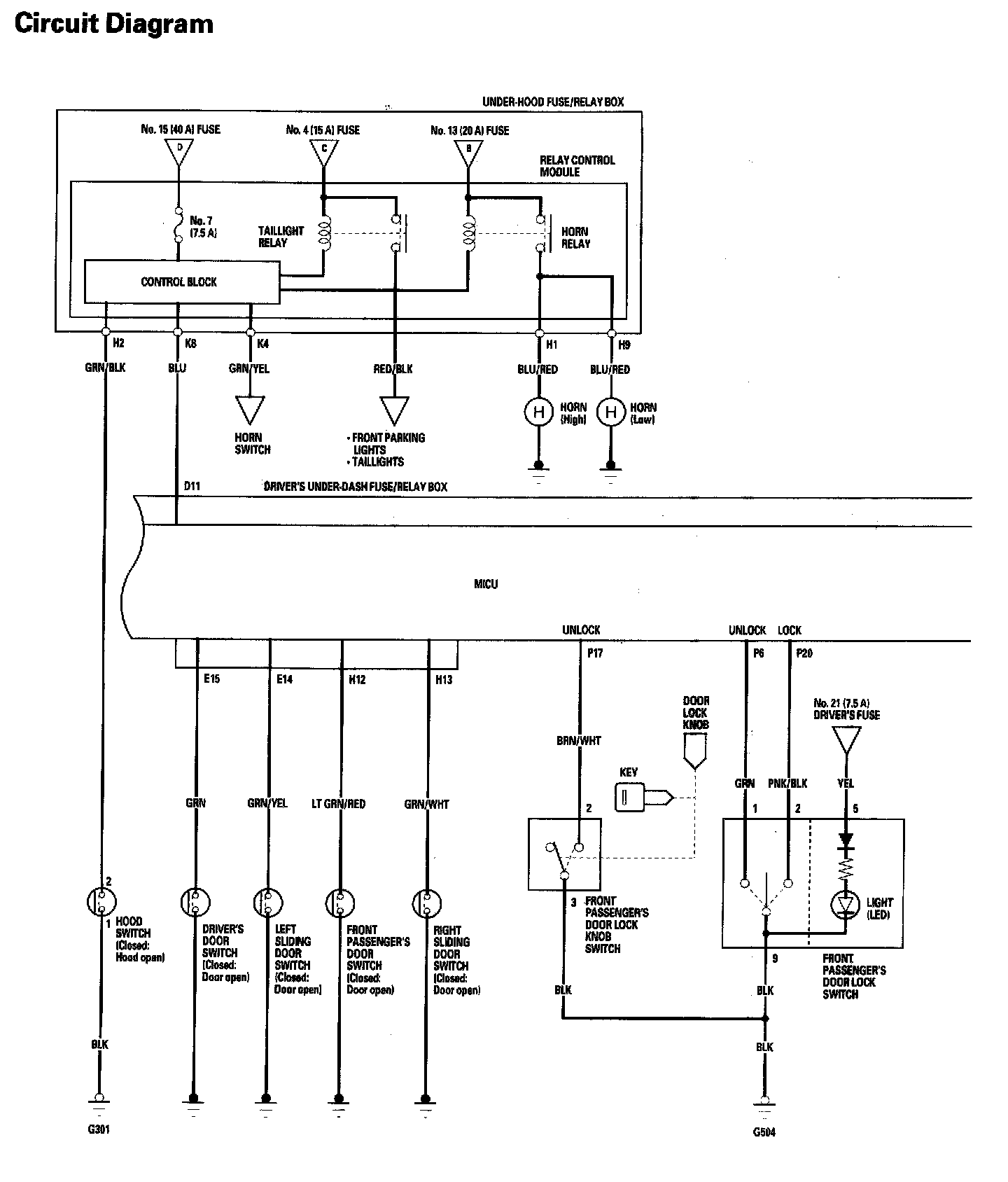

Circuit Diagram:
Key/Power Door Locks/Security System Part 1:
